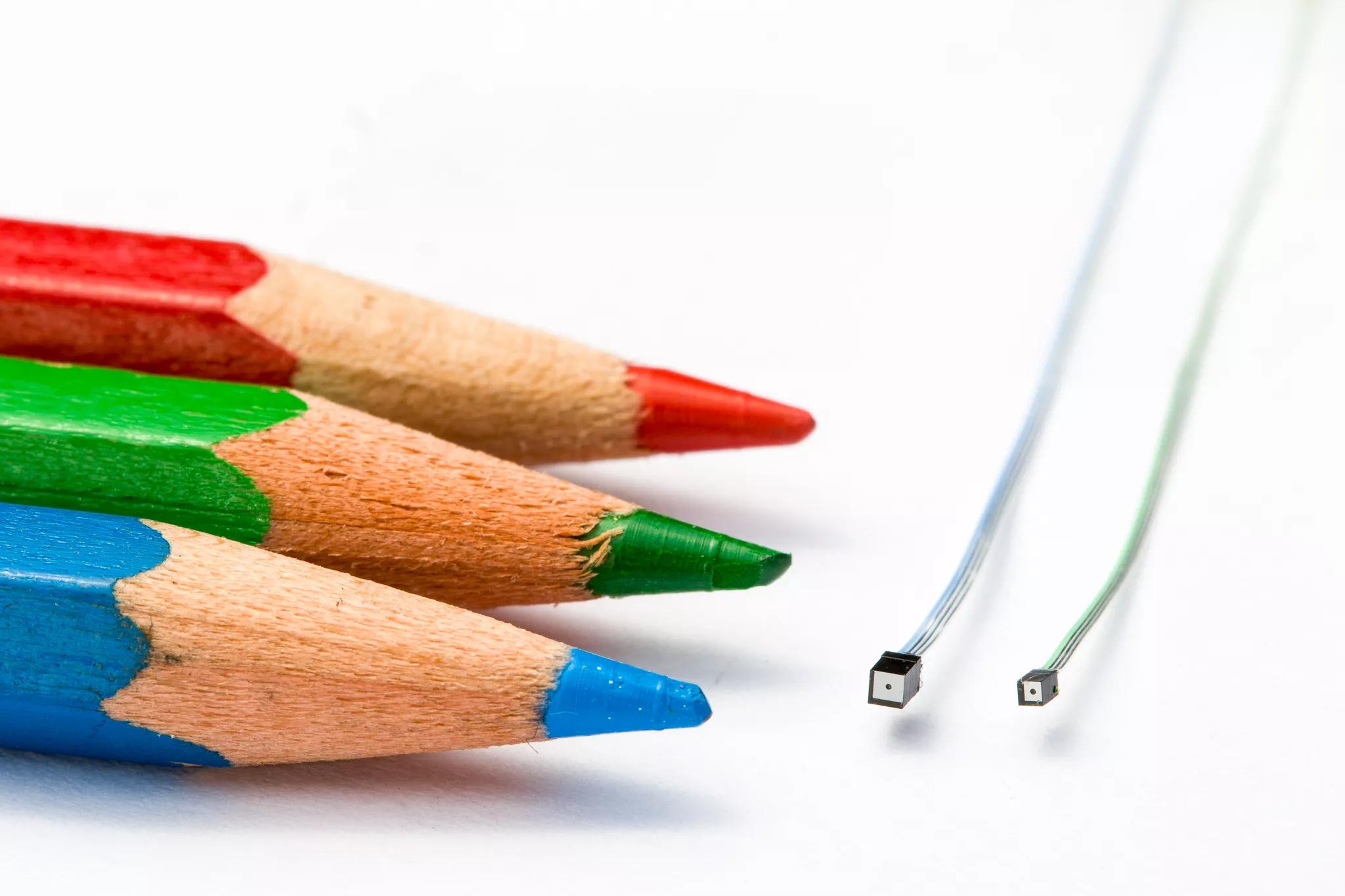

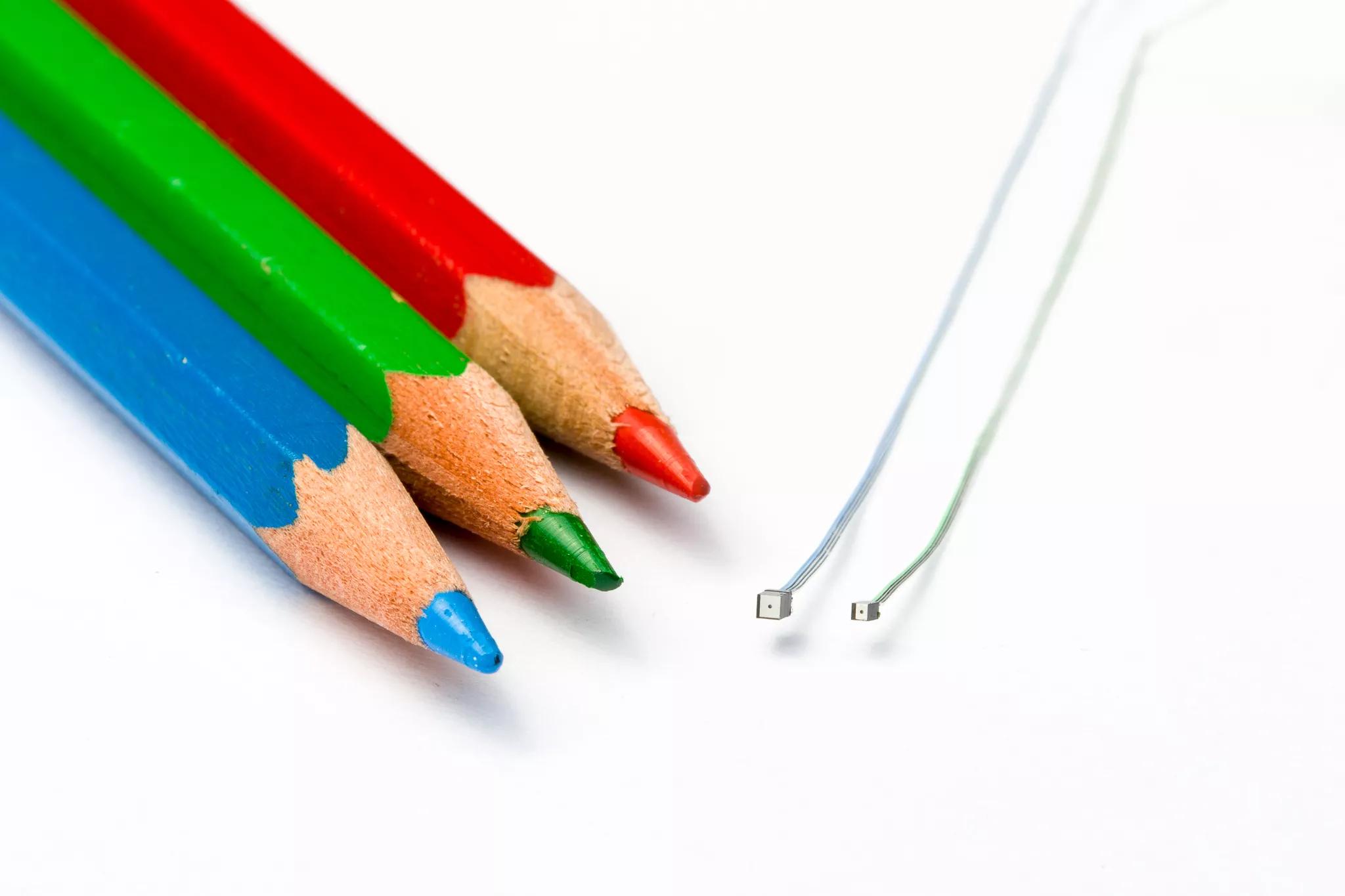

NanEyeM is a miniature sized image sensor for vision applications where size is a critical factor. The ability of the camera head to drive a signal through long cables makes this the ideal component for minimal diameter endoscopes.

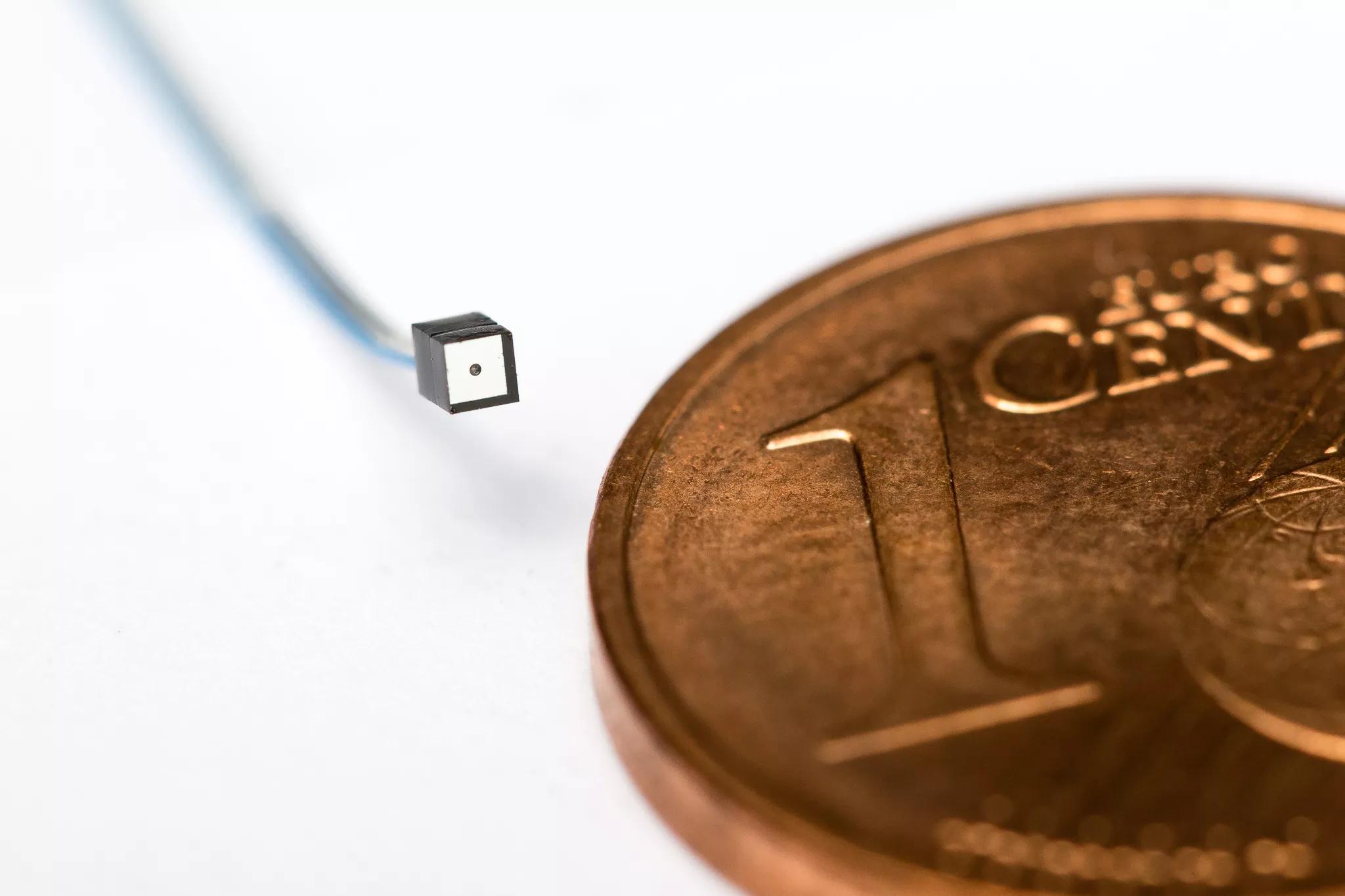

With a footprint of a just 1 mm2, it features a 320x320 resolution with a high sensitive 2.4-micron rolling shutter pixel, with large full well capacitance. The sensor has been specially designed for medical endoscopic applications where high SNR is mandatory. The sensor has a high frame rate of about 49 fps to permit SNR enhancement and a smooth, low delay display over a wide range of standard interfaces. Additionally,  the frame rate can be set as low as 9 fps for use of extended exposure time and lower power consumption.

The sensor includes a 10-bit ADC and a bit serial LVDS data interface. The sensor is able to drive the signal through a cable length of up to 3 m.
数据表 User guide Select & order
联系我们 支持

详情

特点

  • Footprint of 1mm² with cable assembly
  • Frame rate of 3-49fps @ 320x320 resolution
  • High end optics. Multi element lens for optimal image quality
  • Low EMI with long cable. No coaxial/shielded cable necessary for noise reduction
  • Possible to drive a signal through an endoscope of up to 3m
  • Cost-optimized complete camera module
  • 102.4k pixel resolution using 2.4µm highly sensitive pixel
  • Pre-assembled cable eliminates the complexities of cable procurement and attachment. Length is customizable up to 3m

优势

  • Compact size for applications with strict size restrictions
  • EMI & EMC compliant digital interface, no coax or shielded cables necessary
  • Complete solution including optics & cable for easy integration
  • Multi element lens - Reduced distortion, improved MTF
  • Reduced noise and higher light efficiency by increased resolution
  • Cost-optimized module for single-use

参数设置

Size [mm2]
1.05 x 1.05 x 2.77
Pixel Size [µm]
2.4
Resolution [kP]
102.4
Output Interface
LVDS
Shutter Type
Rolling
Frame Rate [fps]
49
Special Features
Up to 3m cable drive capability

订单代码

产品类别 描述 单号 可行
NEM_RGB_2.5M_FOV120_F4.0
状态信息
全面生产
前期制作
未计划用于新设计
仍有可能订购和运输
停止
立即购买
Distribution partners:
Mouser
立即购买
NEM_RGB_2M_FOV120_F4.0
状态信息
全面生产
前期制作
未计划用于新设计
仍有可能订购和运输
停止
立即购买
Distribution partners:
Mouser
立即购买

下载

其他文档请访问 下载中心

数据表

NanEyeM DS001033

Datasheet
EN
DE
CN
JP

用户指南

环境文档


Related boards, kits & accessories

ams NANO-FIB-BOX_EVM_MO Evaluation kit

ams NANO-FIB-BOX_EVM_MO Evaluation kit

NanEye Fiber Optic Box Demo Kit 2.0 is a fully embedded all in one image processing unit that interfaces the NanEye® micro camera head signals and provides an output of 1080p/60 format HDMI video signal, which can be directly plugged to a HDMI compatible monitor. No additional PC or image processing is required. The Demo Kit embeds advanced image processing algorithms to automatic control exposure and gain settings, construct the color data from the raw binary stream and displays an output image of 750 x 750 pixels over an HDMI interface. The USB3 interface allows the connection to the NanEye viewer software, running on a PC to get access to the sensor’s raw images and control settings, as well as apply image processing algorithms integrated in the NanEye viewer. The unit is supplied by a 12V wall charger and provides galvanic isolation to the camera head. It can interface to any standard monitor with HDMI input. The main body of the Demo Kit measures only 17cm x 17cm x 5.6cm and provides all necessary video processing.
