汽车位置和角度传感
艾迈斯欧司朗的非接触式汽车位置和角度传感器具有出众的免杂散磁场干扰能力和耐用性,可达到最严苛的安全标准,是汽车元器件的理想选择。
符合汽车级认证的非接触式位置和角度传感器
非接触式汽车位置和角度传感器在舱内的应用
非接触式位置和角度传感器普遍存在于现代汽车中,包括:踏板位置、主动减震系统的底盘高度、节气门位置、变速箱位置、涡流片、转向角、前照灯控制、电位器、换档杆、旋钮、抬头显示镜面定位等。
非接触式位置和角度传感器在传动系统中的应用
在众多应用中,传统内燃机和现代电动汽车动力传动系统都需要配备位置和角度传感功能,例如电动汽车的牵引电机、变速箱编码器、齿条电机(EPS电动助力转向装置)、电动伺服泵、电力制动、启动器/交流发电机以及光学编码器和旋转变压器组件的更换。
艾迈斯欧司朗非接触式汽车位置与角度传感器产品
艾迈斯欧司朗拥有智能的位置和角度传感器,在恶劣环境下依然性能稳定,推动提高汽车自动化和电气化程度。由于高度的可靠性和完全的汽车级认证,艾迈斯欧司朗的非接触式传感器是汽车元器件的理想选择。艾迈斯欧司朗汽车功能安全工艺可提高系统的可靠性,并能够轻松集成到汽车的子系统中。该产品系列包含在客户应用中达到ASIL D级(依据ISO26262标准)的冗余型传感器。经设计,集成杂散磁场具有高度的稳健性(超过ISO 11452-8),从而可在一切客户项目中实现经济的传感器集成,无论是何种体量和应用条件。
准确可靠的汽车位置和角度传感器,旋转速度更高:艾迈斯欧司朗汽车位置和角度传感器在电子换向电机中发挥了重要作用,在高达480k rpms的速度下可实现精确的角度传感器(0.3°电气INL),且几乎没有延迟(DAECTM),因此应用范围广泛,如电动汽车的牵引电机。在任何应用中,艾迈斯欧司朗非接触式位置和角度传感器都是光学和电气旋转压变器的理想替代产品。
×
特定产品
ams AS5147U - High Resolution Rotary Position Sensor
The AS5147U is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency at higher rotational speed. For increased signal quality at lower rotational speed, the dynamic filter system (DFS™) reduces transition noise. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface with a CRC protection allows a host microcontroller to read 14-bit absolute angle position data from the AS5147U and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 16989 steps / 4096 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal. The AS5147U supports embedded self-diagnostics for fulfilling up to ASIL D in safety relevant applications. The device is available in a TSSOP14 Package.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
详情和产品规格书
ams AS5200L Magnetic Rotary Position Sensor
The AS5200L is an easy to program stacked dual die magnetic rotary position sensor with a high-resolution 12-bit I2C or PWM output. This contactless system measures the absolute angle of a diametric magnetized on-axis magnet. This AS5200L is designed for contactless potentiometer applications and its robust design eliminates the influence of any homogenous external stray magnetic fields. The industry-standard I2C interface supports simple user programming of non-volatile parameters without requiring a dedicated programmer. By default the output represents a range from 0 to 360 degrees. It is also possible to define a smaller range to the output by programming a zero angle (start position) and a maximum angle (stop position). The AS5200L is also equipped with a smart low power mode feature to automatically reduce the power consumption. This device is designed for automotive applications and is AEC-Q100 grade 1 qualified. To enable safety-critical applications it has two separate sensor dies in one MLF-16 (5x5) package with wettable flanks.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
详情和产品规格书
ams AS5116 Position Sensor Sin/Cos Output
The AS5116 is a contactless magnetic position sensor for accurate angular measurement over a full mechanical turn of 360°. Based on the Hall sensor technology, this device has a robust architecture that measures the orthogonal component of the flux density (Bz), over a full-turn rotation. To measure the angle, only a simple two-pole magnet rotating over the center of the package is required. The magnet can be placed above or below the device.The absolute angle measurement provides an instant indication of the magnet’s angular position. The angle information is provided by means of buffered differential sine and cosine voltages. The AS5116 operates at a supply voltage of 5V or 3.3V. The AS5116A is a preprogrammed version of AS5116. It has fixed settings and need no further programming. With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
详情和产品规格书
ams AS5172B High Resolution Position Sensor
The AS5172B is a magnetic position sensor with a high-resolution 12-bit PSI5 output according PSI5 specification Version 1.3 and 2.1.Based on a Hall sensor technology, this device measures the orthogonal component of the flux density (Bz) over a full-turn rotation and compensates for external stray magnetic fields with a robust architecture based on a 14-bit sensor array and analog front-end (AFE). A sub-range can programmed to achieve the best resolution for the application. To measure the angle, only a simple two-pole magnet rotating over the center of the package is required. The magnet may be placed above or below the device. The absolute angle measurement provides an instant indication of the magnet’s angular position. The AS5172B operates up to a voltage of 16.5V and is protected against overvoltage up to +20V. In addition, the supply pins are protected against reverse polarity up to – 18V.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
详情和产品规格书
ams AS5172E High Resolution Position Sensor
The AS5172 is a magnetic position sensor with a high-resolution 12-bit PSI5 output according PSI5 specification version 1.3 and 2.1.Based on a hall sensor technology, this device measures the orthogonal component of the flux density (Bz) over a full-turn rotation and compensates for external stray magnetic fields with a robust architecture based on a 14-bit sensor array and analog front-end (AFE). A sub-range can be programmed to achieve the best resolution for the application. To measure the angle only a simple two-pole magnet rotating over the center of the package is required. The magnet may be placed above or below the device. The absolute angle measurement provides an instant indication of the magnet’s angular position. The AS5172 operates up to a voltage of 16.5V and is protected against overvoltage up to +20V. In addition, the supply pins are protected against reverse polarity up to – 18V.
详情和产品规格书
ams AS5715R inductive motor control position sensor

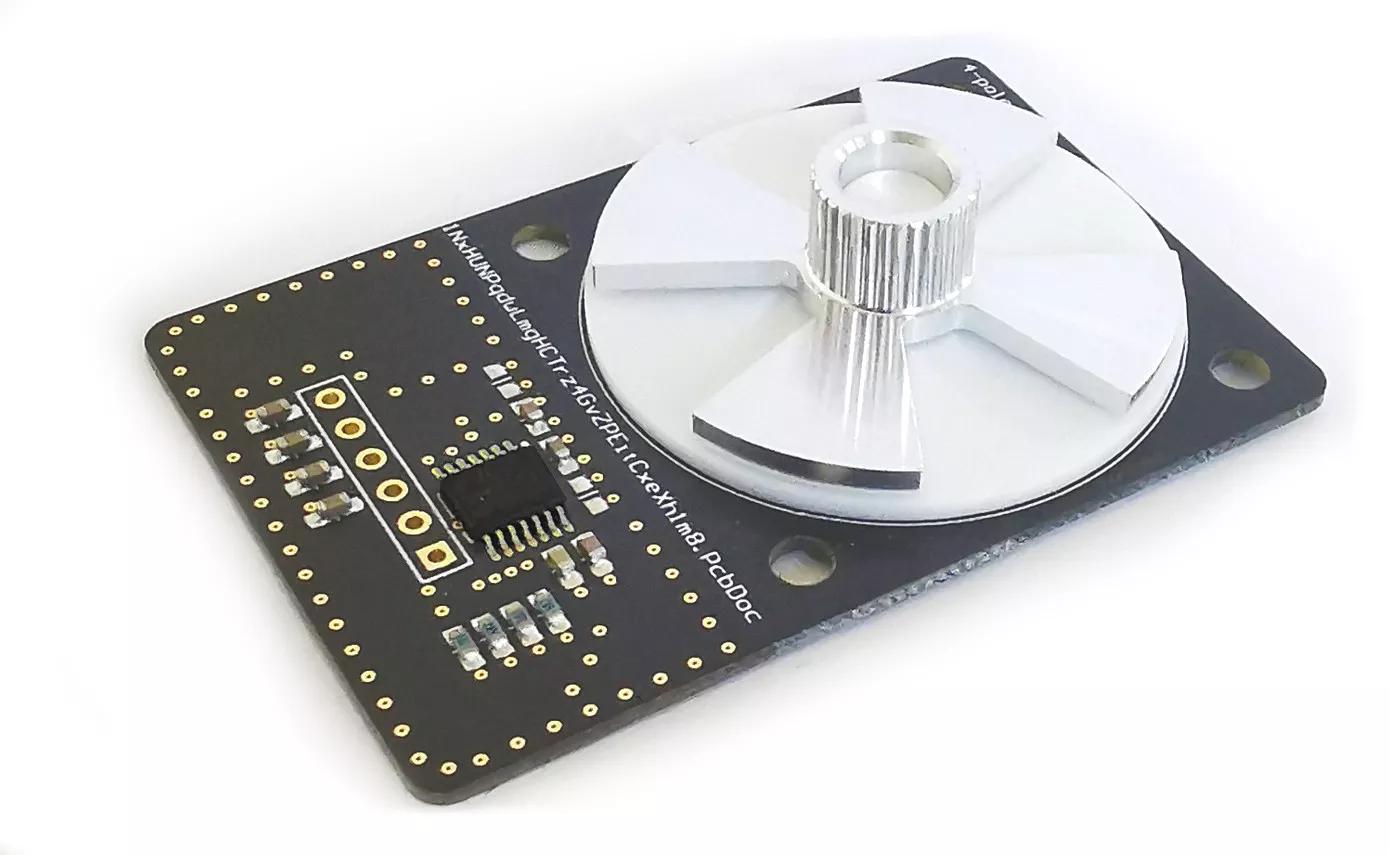

The inductive motor control position sensor detects the electrical position within one pole-pair of a rotating shaft and can be used for the motor commutation of a brushless DC (BLDC) motor. Based on the inductive sensor technology, this family measures the coupling between an excitation coil (TX) and two receiver coils (RX) via a rotating target. The coils are executed as printed circuit coils and the rotating target is a simple punched metal part. With the correct layout of the coils and the target, both synchronized to the number of pole-pair count of the motor, the IC output is proportional to the electrical angular position within one pole-pair segment with increased resolution and high performance of only 0.3° electrical INL! Due to its flexibility, easy adaption and low overall system costs, this family acts as the perfect resolver replacement and can be used for on-axis as well off-axis applications!
详情和产品规格书
