ams AS5147U - High Resolution Rotary Position Sensor

Longevity January 2031
×
Longevity January 2031

Description

The AS5147U is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency at higher rotational speed. For increased signal quality at lower rotational speed, the dynamic filter system (DFS™) reduces transition noise.

The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface with a CRC protection allows a host microcontroller to read 14-bit absolute angle position data from the AS5147U and to program non-volatile settings without a dedicated programmer.

Incremental movements are indicated on a set of ABI signals with a maximum resolution of 16989 steps / 4096 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal.

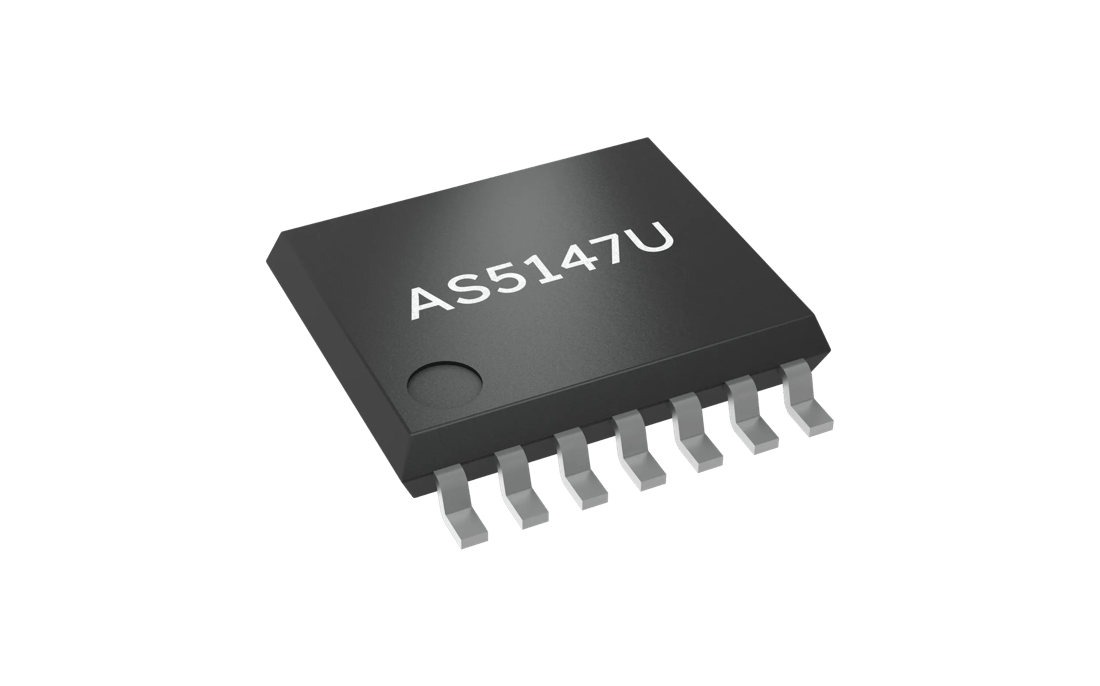

The AS5147U supports embedded self-diagnostics for fulfilling up to ASIL D in safety relevant applications. The device is available in a TSSOP14 Package.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • DAEC ™ Dynamic angle error compensation DFS ™ Dynamic filter system
  • Magnetic stray field immunity
  • Developed according ISO26262, diagnostics, dual redundant chip version ASIL-D capable, Safety Element out of Context (SEooC)
  • AEC-Q100 Grade 0 qualified
  • Independent output interfaces: SPI, ABI, UVW, PWM

Benefits

  • Easy to use – saving costs on DSP
  • Higher durability and lower system costs (no shield needed)
  • Enabler for safety critical applications
  • Suitable for automotive applications
  • Versatile choice of the interface

Parameters

Resolution
14 bit
Interface
output
SPI (16MHz)
PWM
Rotation speed
max.
28000 rpm
Die in package
single
Supply voltage
5 V
min.
4.5 V
max.
5.5 V
Operating ambient temperature
min.
-40 °C
max.
150 °C
Package
TSSOP14
Automotive qualified
AEC-Q100
ASIL qualified
ASIL C
Accuracy typ.
1 °
Function
angle sensing

Ordering codes

Product Type Description Order No. Availability
AS5147U-HTST TSSOP14 13” Tape & Reel in dry pack 4500 pcs/reel Q65114A1194
AS5147U-HTSM TSSOP14 7” Tape & Reel in dry pack 500 pcs/reel Q65114A1193
AS5247U-HTQT TQFP32 13” Tape & Reel in dry pack 2000 pcs/reel Q65114A1221
