Details
Features
- Can be used in environments where lateral space is at a premium
- Can sense motors with low and high pole-pair counts without losing resolution
- Reduces torque ripple and increases efficiency of motor control
- Works with motors up to 480 000rpm
- Easy replacement of existing AMR/GMR sensors
- Enabler for safety critical applications
- Suitable for automotive applications
Benefits
- Flexible pcb design possible – Hollow shaft and side shaft applications
- Adaptable coil and sensor layout
- High angular accuracy (less than 1.0°)
- Low propagation delay
- Sin/Cos output
- Functional safety, diagnostics
- AEC-Q100 Grade 0 qualified
Parameters
Rotation speed
max.
480000
rpm
Die in package
single
Supply voltage
5
V
min.
4.5
V
max.
5.5
V
Operating ambient temperature
min.
-40
°C
max.
160
°C

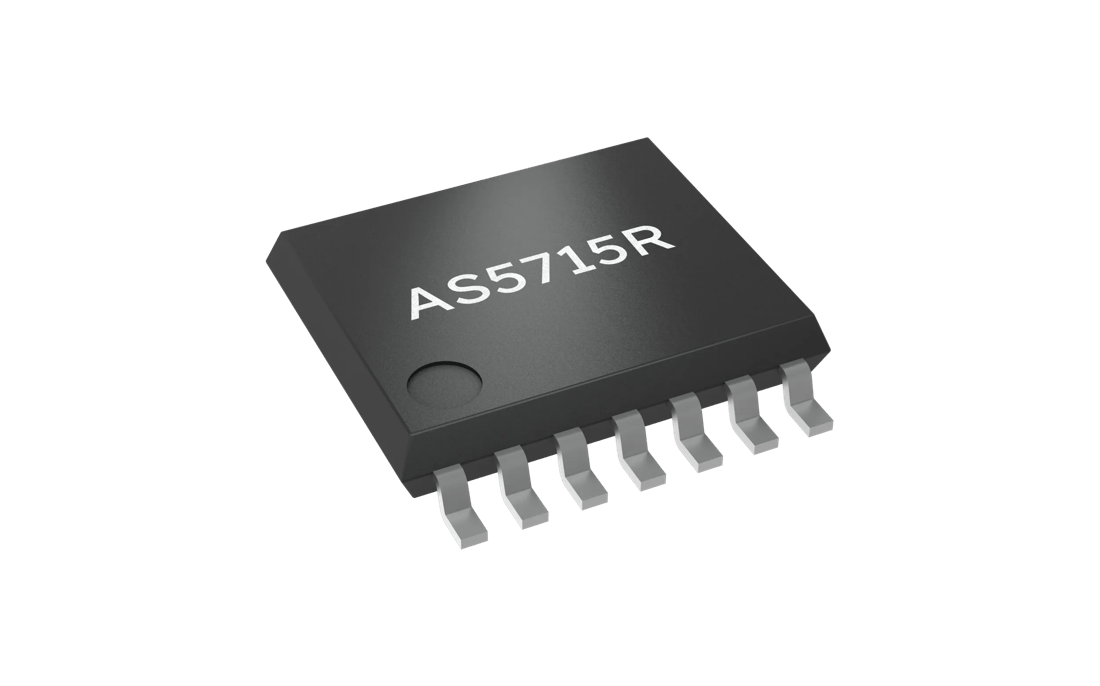

Package
TSSOP-14
Automotive qualified
AEC-Q100
ASIL qualified
ASIL C
Accuracy typ.
0.3
°
Function
angle sensing
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5715A-ZTST | TSSOP-14 Tape & Reel 4500 pcs/reel | Q65114A1218 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| AS5715A-ZTSM | TSSOP-14 Tape & Reel 500 pcs/reel | Q65114A1219 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| AS5715R-ZTST | TSSOP-14 Tape & Reel 4500 pcs/reel | Q65114A1216 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
| AS5715R-ZTSM | TSSOP-14 Tape & Reel 500 pcs/reel | Q65114A1217 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Datasheets
Datasheet
Datasheet
Application note
Product related
Product related
Technical documents
Factsheet
Factsheet
Factsheet
Product Overview
Environmental documents
RoHS certificate
RoHS certificate
Lifecycle documents
Product discontinuation notification (PDN)
Images
Images
Block diagram
Related boards, kits & accessories
ams SD4Y-PROGRAMMER_EVM_AC Evaluation accessory
The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards.
The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available.
Download latest software (UProg_SW_package_2v0.zip,
264MB)
ams AS5715_TS_EVM_RB Evaluation board
The Reference Board is ideal for quick evaluation of AS5715R inductive position sensor. Fully assembled board, Target, Spacer and Connector (plug-strip) are included into Kit. The printed circuit coil is included into the pcb. The design of the coil and the target represent an example which it can be used in a 4-pole motor.
ams AS5715R_EVM_PB Evaluation board
The Evaluation Programmer Board allows a quick and easy evaluation of the functionality of the AS5715R inductive position sensors. It can be used easily with the Reference Board or some individual design.
It has a USB interface (for PC connection) and a 6-pin connector for the IC (or reference board). The supply is per USB connection.
