ams AS1100 LED Driver IC

ams AS1100 LED Driver IC
Discontinued
×
Discontinued
×

描述

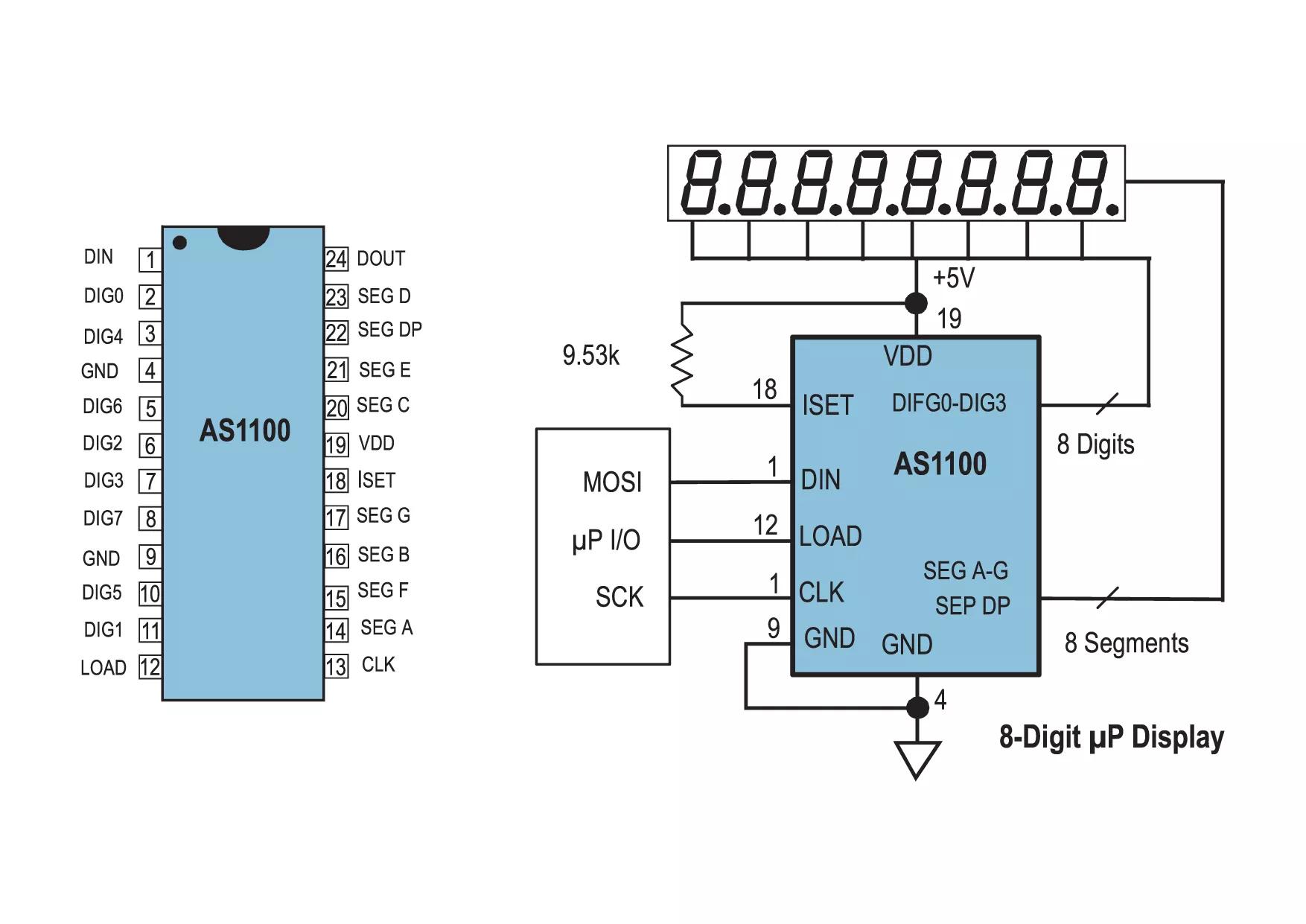

The AS1100 is a SPI interfaced, dot-matrix LED driver for a 8x8 LED matrix or 8 7-segment LEDs. It includes a 4-bit PWM for the entire matrix and an external resistor can be used for analog current adjustment up to 5mA per LED.
数据表
联系我们 支持

详情

特点

  • Up to 64 LEDs in an 8x8 matrix
  • 4-bit PWM and resistor current control per matrix
  • BCD decoder

优势

  • Drive high LED count very easily
  • Brightness adjustment of the matrix
  • Allows decoding for 7-segment LEDs

参数设置

Features
Multiplexed
Supply Voltage [V]
5.0
LED Current per Output [mA]
5
LED-to-LED Matching [%]
3
Output [#]
64
Package
SOIC-24

下载

其他文档请访问 下载中心

数据表

AS1100 DS000273

Datasheet
EN
DE
CN
JP

应用说明

环境文档

生命周期文档


产品查询

寻找合适的产品
产品查询
