ams AS1104 LED Driver IC

ams AS1104 LED Driver IC
Discontinued
×
Discontinued
×

描述

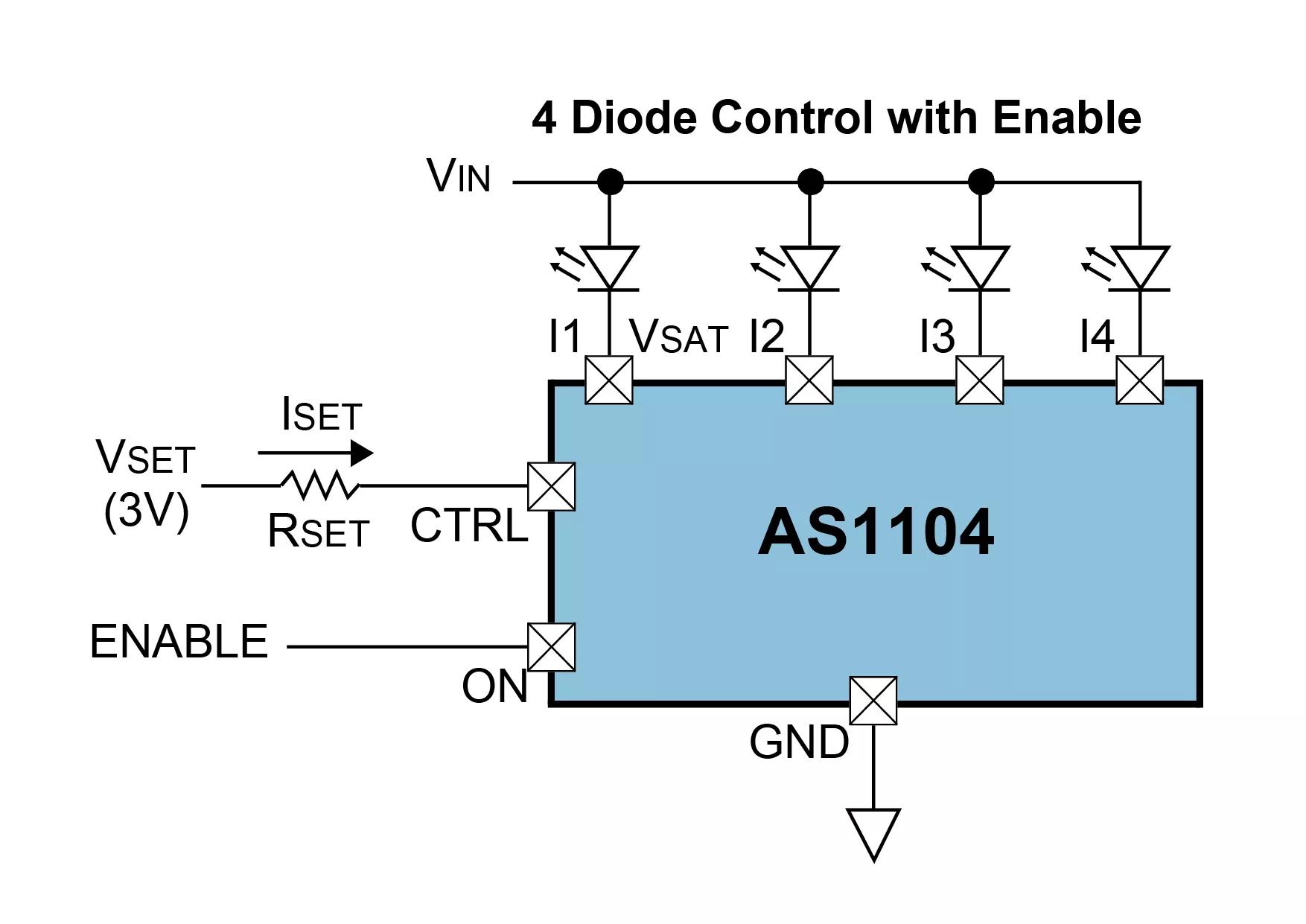

The AS1104 is a high efficient direct LED driver IC. It offers 4 40mA outputs which can be dimmed with an external PWM and adjusted in analog current with an resistor. It only requires 150mV headroom voltage to operate.
数据表
联系我们 支持

详情

特点

  • 4 channel 40mA driver
  • 150mV headroom to operate
  • PWM input
  • External resistor

优势

  • High brightness LEDs
  • Excellent efficiency & battery lifetime
  • High resolution dimming possible
  • Anaolg dimming or current control

参数设置

Package
MSOP-8
Features
Simple drive
LED-to-LED Matching [%]
3
LED Current per Output [mA]
40
Output [#]
4
Supply Voltage [V]
2.2 to 3.6

下载

其他文档请访问 下载中心

数据表

AS1101-04 DS000228

Datasheet
EN
DE
CN
JP
