详情
参数设置
光电流
典型值
0.51
µA
下降时间
tf
典型值
0.067
µs
上升时间
tf
典型值
0.047
µs
响应光谱范围typ.
λ10%
最小值
400
nm
λ10%
最大值
1100
nm
辐射敏感区
A
典型值
1.51
mm²
光束角
∢
典型值
120
°
尺寸
l
典型值
2.0
mm
w
典型值
1.8
mm
h
典型值
0.6
mm
工作温度
Top
最小值
-40
°C
Top
最大值
85
°C
下载
其他文档请访问
下载中心
应用说明
Optical force sensing – design considerations
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Determination of resistances for brightness compensation
Electrical design
资源
CAD Data
CAD Data
Optical Simulation
Optical Simulation

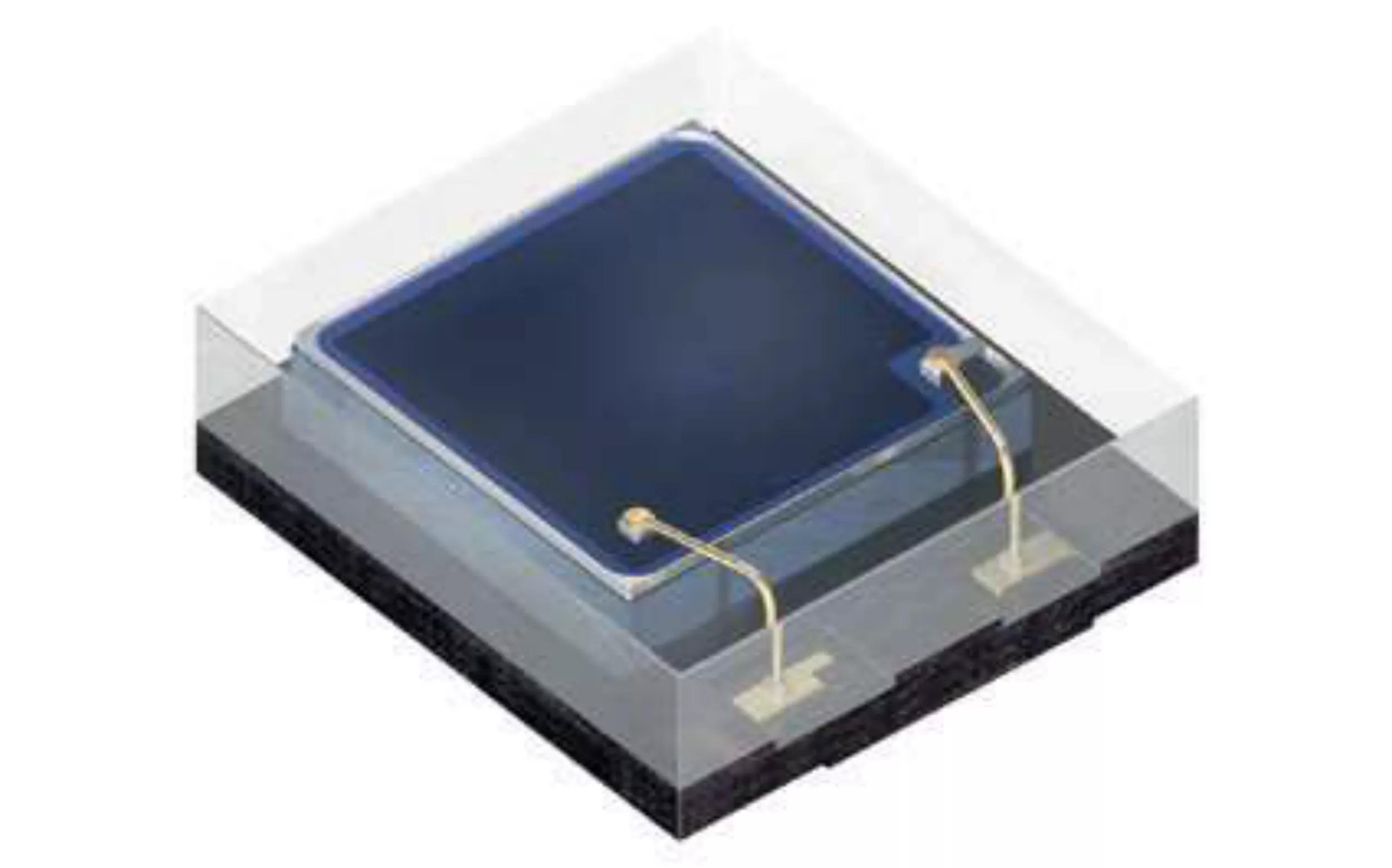

SFH_2714_36x22.4mm_cmyk
