详情
参数设置
发射颜色
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
White
电功率
11.0
W
15.0
W
13.0
W
16.0
W
Ultra High
Ultra High
Ultra High
Ultra High
亮度
ΦV
典型值
765
lm
光束角
∢
典型值
125
°
工作温度
Top
最小值
-40
°C
Top
最大值
125
°C
尺寸
l
典型值
49.0
mm
w
典型值
49.0
mm
h
典型值
8.1
mm
订单代码
产品类别 | 描述 | 单号 | 可行 |
---|---|---|---|
LZP-W0MD00-0000_G2 |
|
Q65113A6962 |
状态信息
全面生产
前期制作
未计划用于新设计
仍有可能订购和运输
停止生产
|
下载
For software click here/for further documents visit our
下载中心
产品规格书
LZP-W0MD00
Datasheet
应用说明
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design

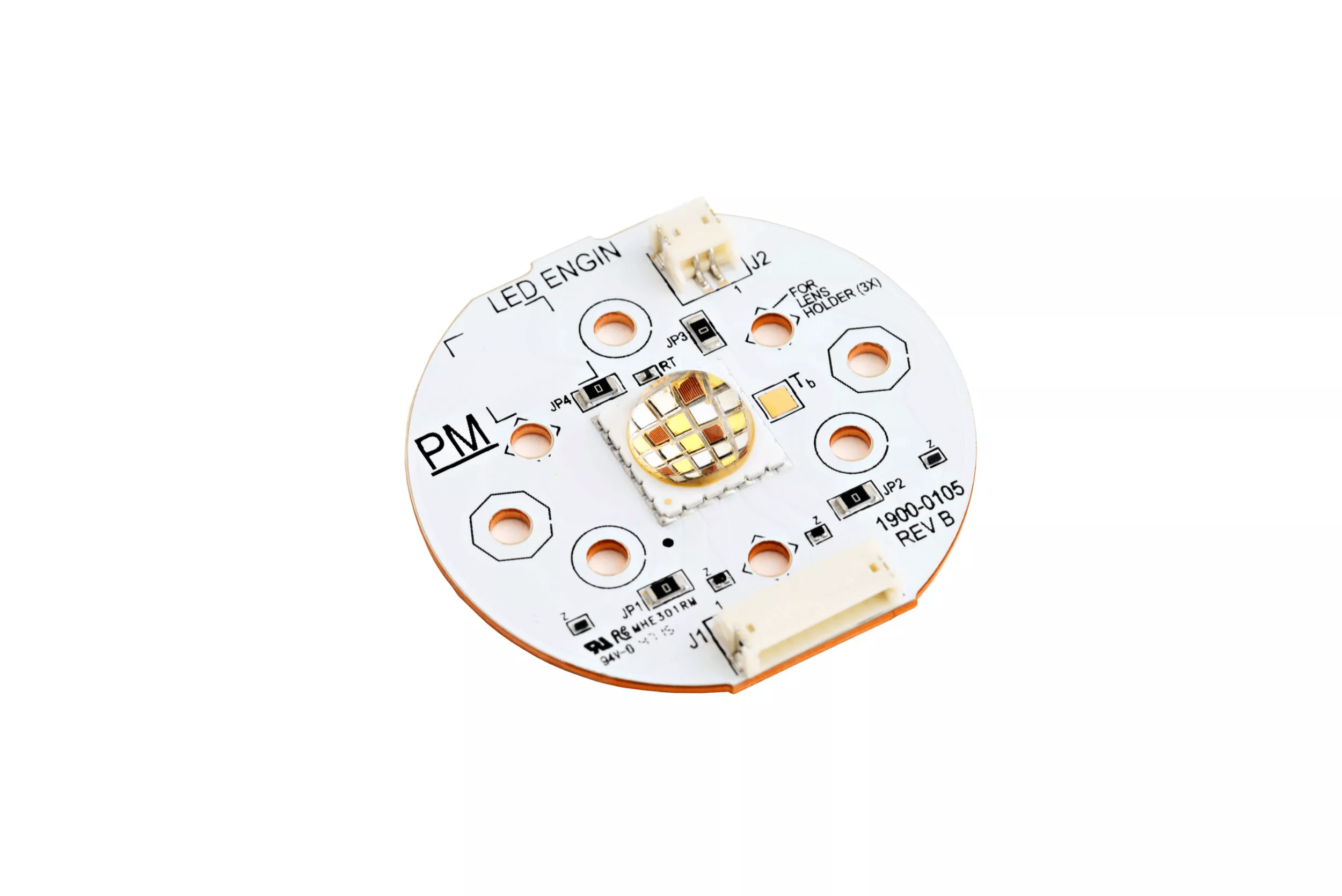

osram-dam-5082862_LZP_RGBW_Emitter_on_Connectorized_MCPCB
