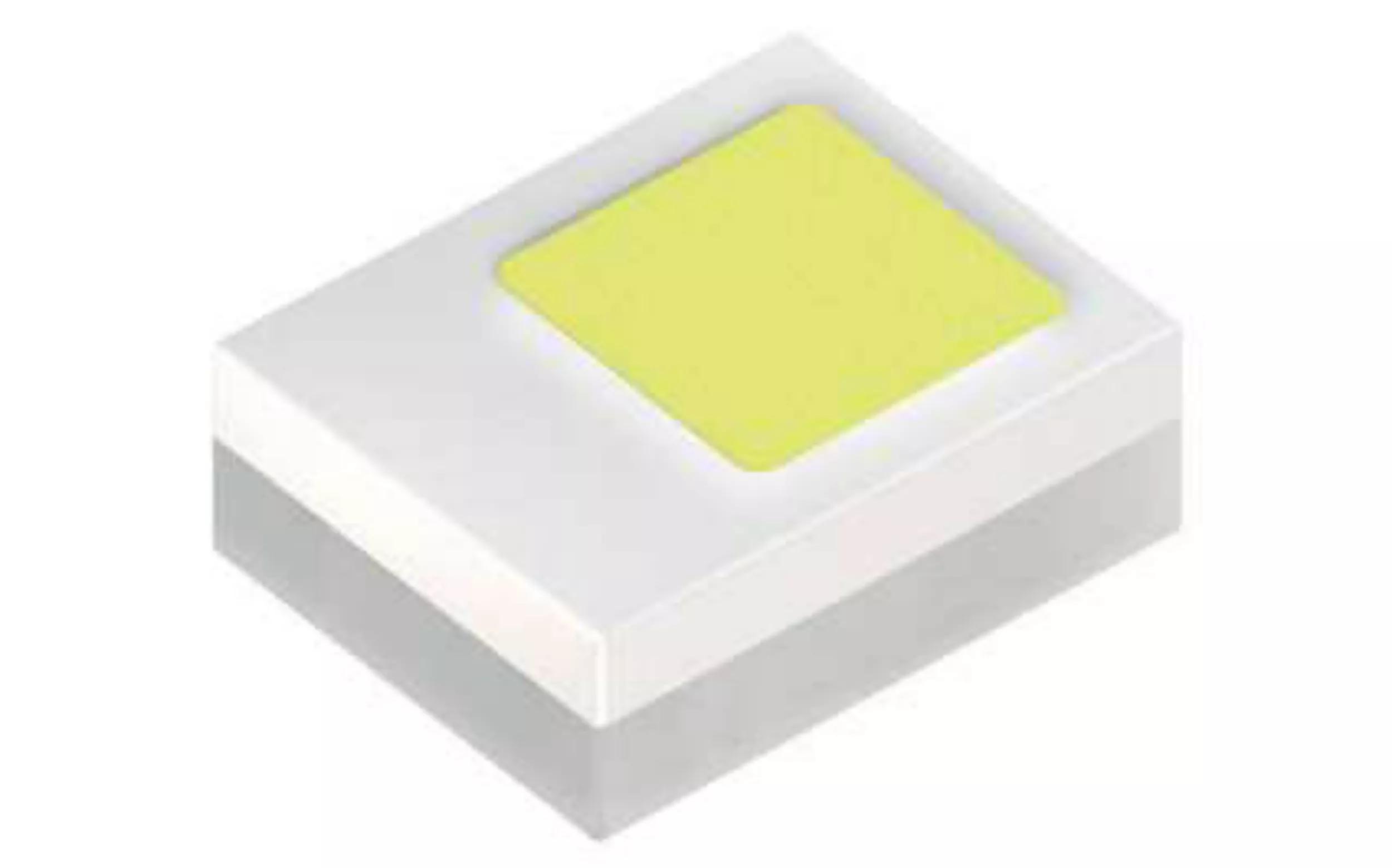

OSRAM OSLON™ Compact PL, KW CELNM1.TG

Ordering and shipping still possible
×
Ordering and shipping still possible

品目

Compact light source with isolated thermal pad for improved heat dissipation and small z-tolerance (+/- 35 µm).
データシート
KW CELNM1.TG
英語
ダウンロード
中国語（簡体字）
ダウンロード
選択と注文
お問い合わせ サポート

詳細

パラメーター

発光色
White
電力
3.0 W
High
輝度
ΦV 典型
395 lm
IV 典型
131 cd
ΦE 典型
1220 mW
IE 典型
405 mW/sr
ビーム角
∢ 典型
120 °
動作温度
Top 最小
-40 °C
Top 最大
125 °C
寸法
l 典型
1.9 mm
w 典型
1.5 mm
h 典型
0.73 mm
Device qualification
AEC-Q102

注文情報

製品タイプ 品目 注文コード 在庫状況
KW CELNM1.TG-Z6N6-ebvFfcbB46-15B3 ΦV = 315 ... 474 lm (IF = 1000 mA) Q65112A9410 注文・発送は可能です
