詳細
パラメーター
光電流
50.0
µA
立ち下がり時間
tf
7.0
µs
立ち上がり時間
tf
7.0
µs
感度のスペクトル範囲(標準)
λ10%
min.
450
nm
λ10%
max.
1120
nm
放射感度領域
A
0.04
mm²
ビーム角
∢
120
°
寸法
l
3.0
mm
w
1.2
mm
h
1.1
mm
動作温度
Top
min.
-40
°C
Top
max.
100
°C
ダウンロード
For software click here/for further documents visit our
ダウンロードセンター
アプリケーションノート
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
リソース
Electrical Simulation
Electrical Simulation
画像

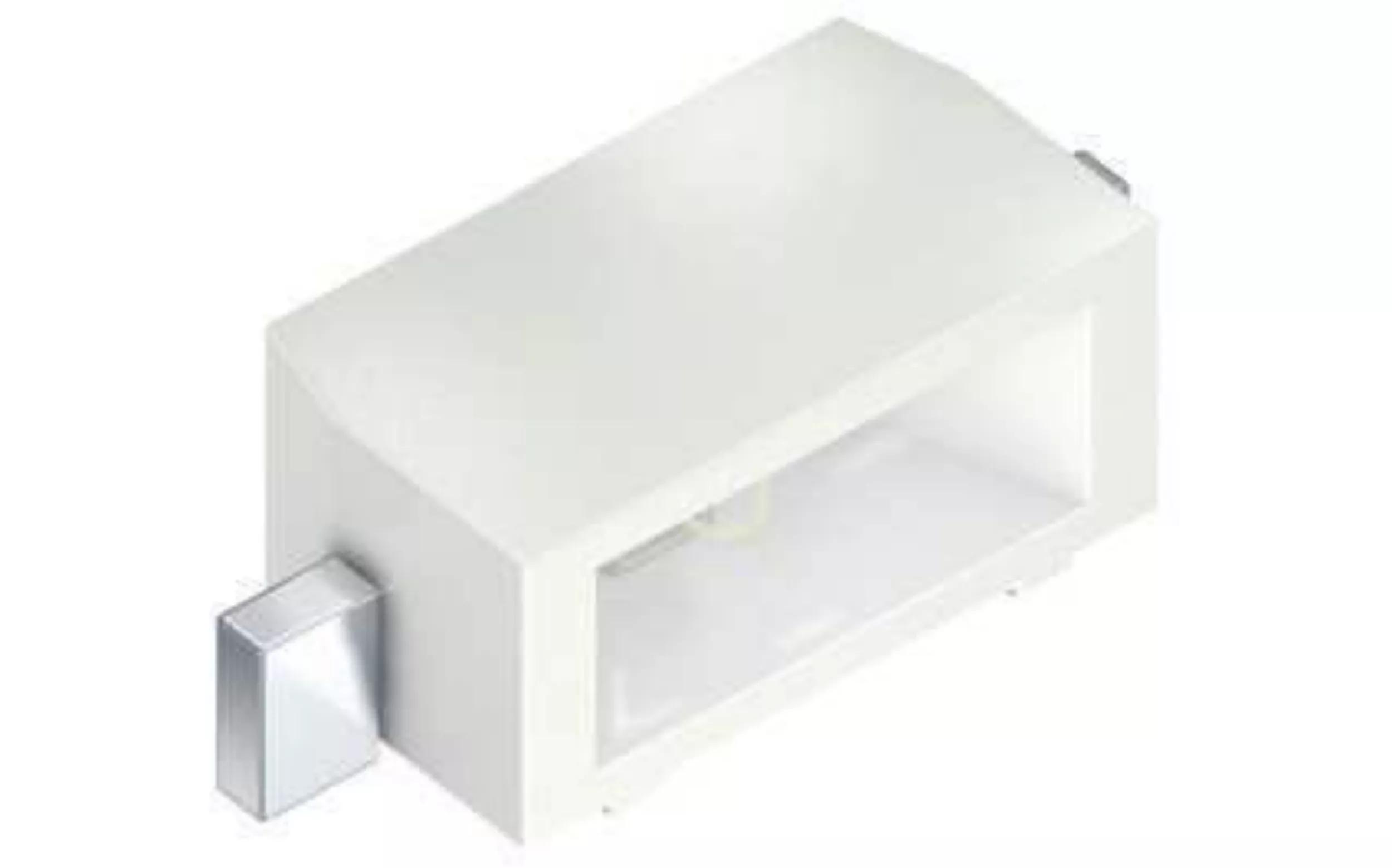

MicroSIDELED
