ams AS3716 Power Management Unit

ams AS3716 Power Management Unit
Discontinued
×
Discontinued

品目

The AS3716 is a compact system PMU supporting two Li-ion batteries and up to 15 power rails.

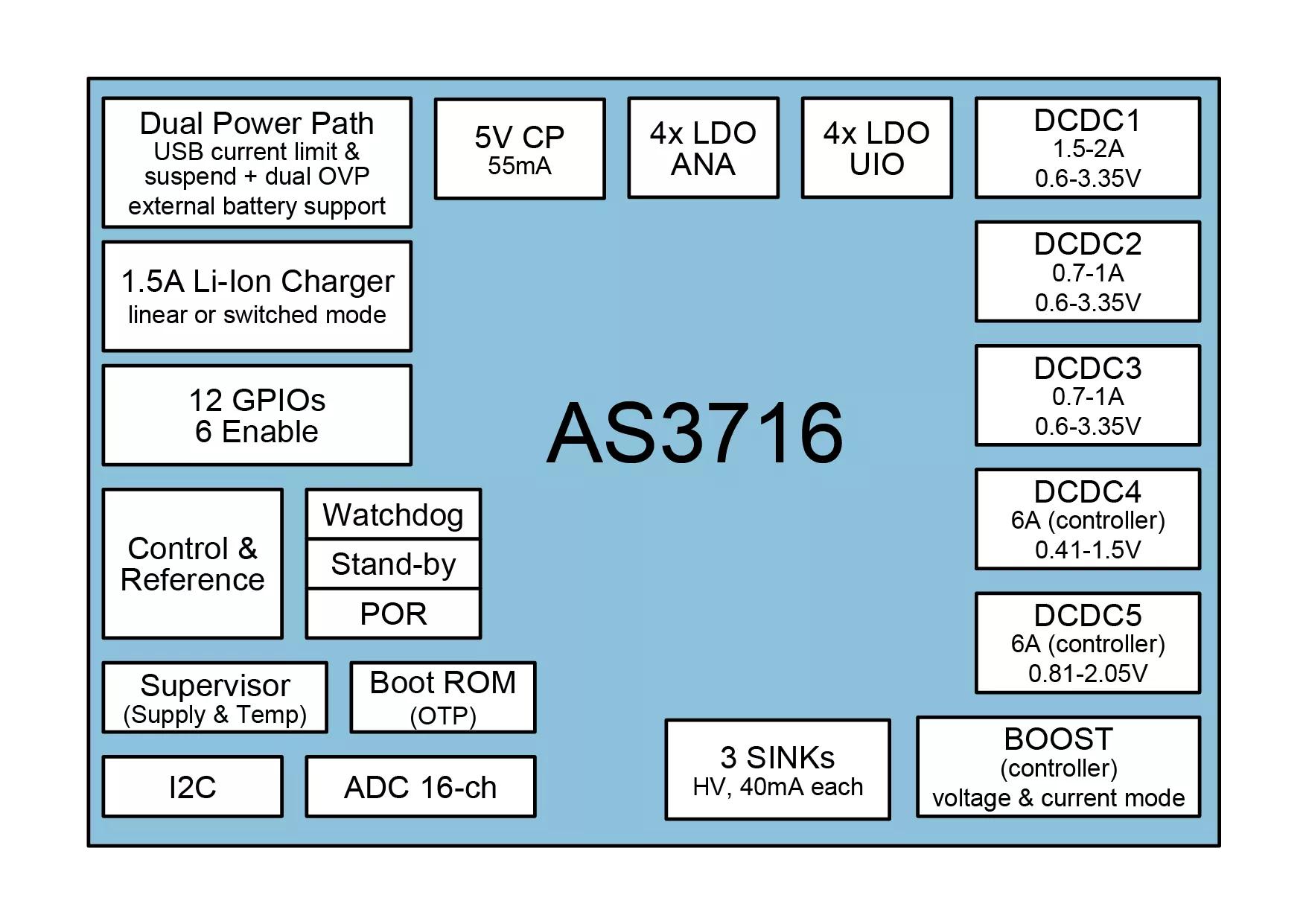

The device offers advanced power management functions. All necessary ICs and peripherals in a battery-powered mobile device are supplied by the AS3716. It features 3 DC-DC buck converters, two DC-DC buck controller, a 5V HDMI booster, a HV backlight boost controller with 3 current sinks as well as 8 LDOs (4 low noise).

AS3716 contains a linear or switch mode Li-ion battery charger with constant current and constant voltage operation.
お問い合わせ サポート

詳細

特徴

  • OTP programmable boot sequence
  • DC-DC controller for remote power generation and heat distribution
  • Dual charger power path and DC-DC charger mode
  • HDMI boost, backlight boost and HV current sinks
  • 4MHz DC-DC bucks, supervisor, general purpose IOs, ADC

利点

  • Flexible and fast adaptation to different processors/applications
  • Compact design due to small coils
  • JEITA charger temperature supervision
  • Single or dual-phase controller to adjust efficiency
  • Multi-feature, small footprint
