詳細
パラメーター
Photocurrent
600.0
µA
Fall time
tf
12.0
µs
Rise time
tf
12.0
µs
Spectral range of sensitivity typ.
λ10%
min.
450
nm
λ10%
max.
1120
nm
Radiant sensitive area
A
0.675
mm²
Beam angle
∢
80
°
Dimension
l
5.45
mm
w
5.45
mm
h
5.25
mm
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
注文コード
製品タイプ | 品目 | 注文番号 | 在庫状況 |
---|---|---|---|
BPX 38-2/3 | IPCE = 224 ... 560 µA (Ee=0.50 mW/cm²) | Q62702P3578 | |
BPX 38-3 | IPCE = 355 ... 560 µA (Ee=0.50 mW/cm²) | Q62702P0015S003 | |
BPX 38 | IPCE = 224 ... 900 µA, (IPCE=600 µA typ.) (Ee=0.50 mW/cm²) | Q62702P0015 |
ステータス情報
フル生産
試作
新設計は予定されていません
注文・発送は可能です
生産終了
|
BPX 38-4 | IPCE = 560 ... 900 µA (Ee=0.50 mW/cm²) | Q62702P0015S004 |
ダウンロード
その他の資料は、こちらをご覧ください:
ダウンロードセンター
データシート
BPX 38
Datasheet
アプリケーションノート
リソース
Electrical Simulation
Electrical Simulation
画像

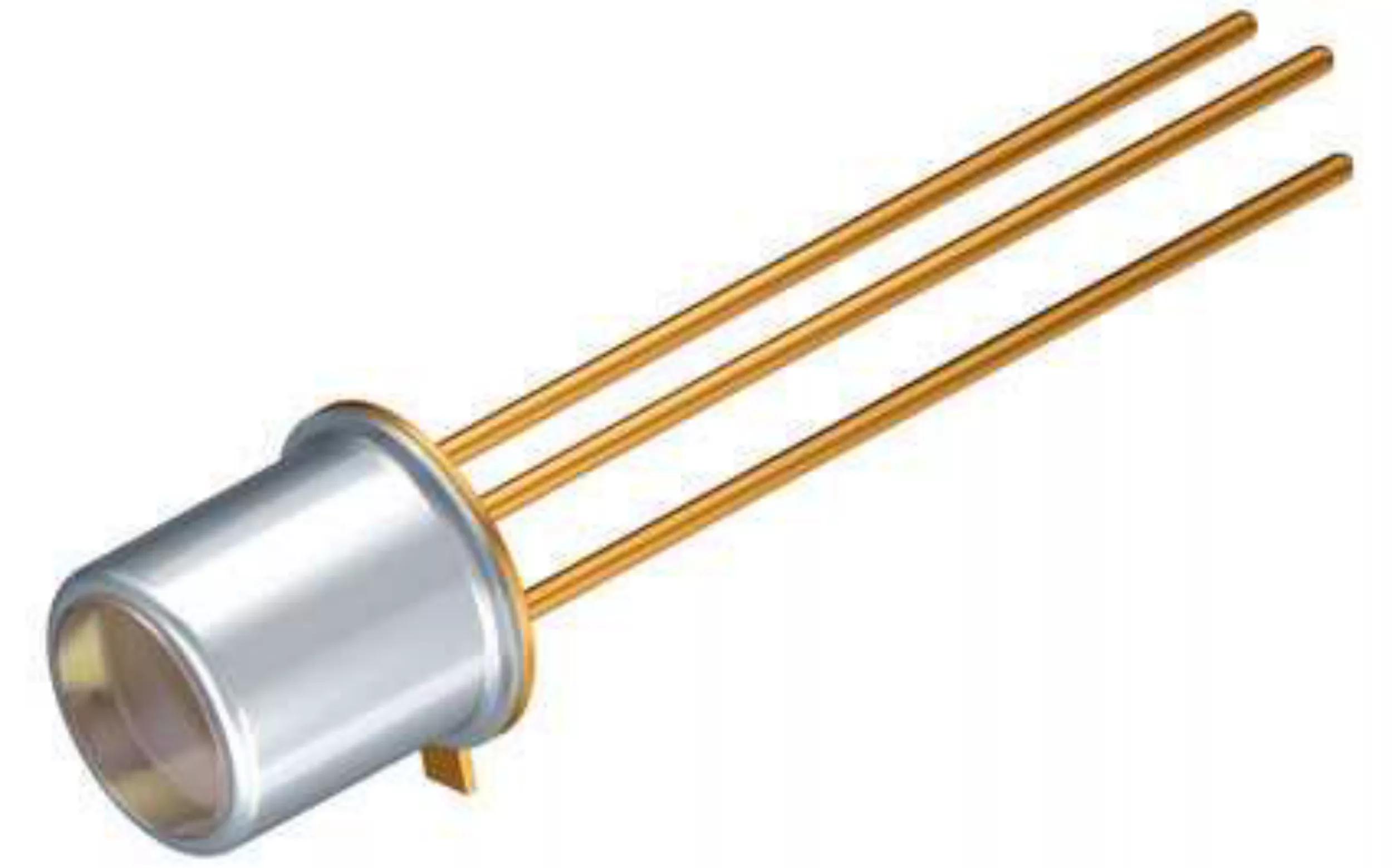

BPX38_photo
