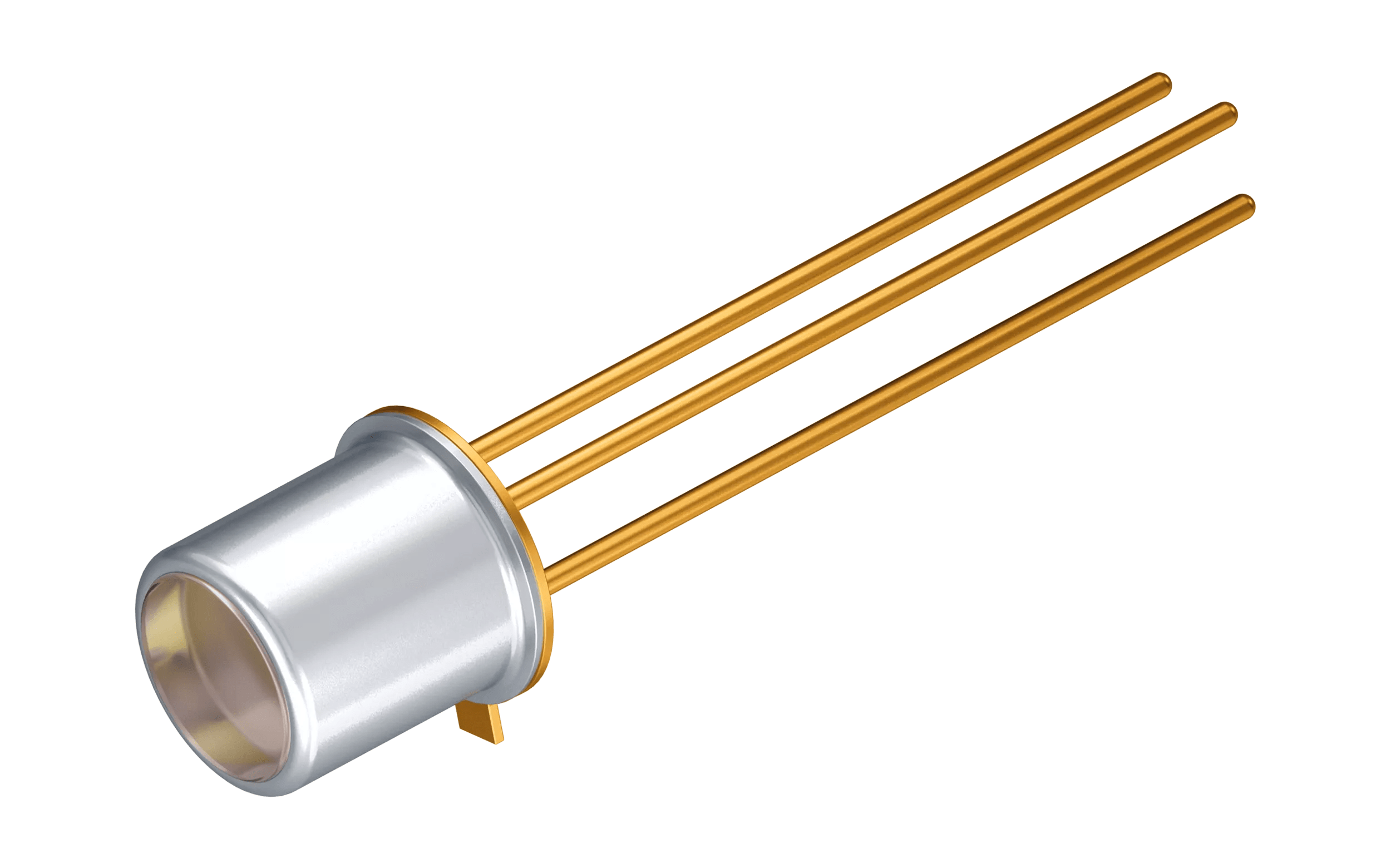

OSRAM Metal Can® TO18, BPX 38

Discontinued
×
Discontinued

설명

Silicon NPN Phototransistor

세부 정보

조건

Photocurrent
600.0 µA
Fall time
tf
12.0 µs
Rise time
tf
12.0 µs
Spectral range of sensitivity typ.
λ10% min.
450 nm
λ10% max.
1120 nm
Radiant sensitive area
A
0.675 mm²
Beam angle
80 °
Dimension
l
5.45 mm
w
5.45 mm
h
5.25 mm
Operating temperature
Top min.
-40 °C
Top max.
125 °C

주문 코드

제품 유형 설명 주문 번호 재고 여부
BPX 38 IPCE = 224 ... 900 µA, (IPCE=600 µA typ.) (Ee=0.50 mW/cm²) Q62702P0015
BPX 38-2/3 IPCE = 224 ... 560 µA (Ee=0.50 mW/cm²) Q62702P3578
BPX 38-4 IPCE = 560 ... 900 µA (Ee=0.50 mW/cm²) Q62702P0015S004
BPX 38-3 IPCE = 355 ... 560 µA (Ee=0.50 mW/cm²) Q62702P0015S003
