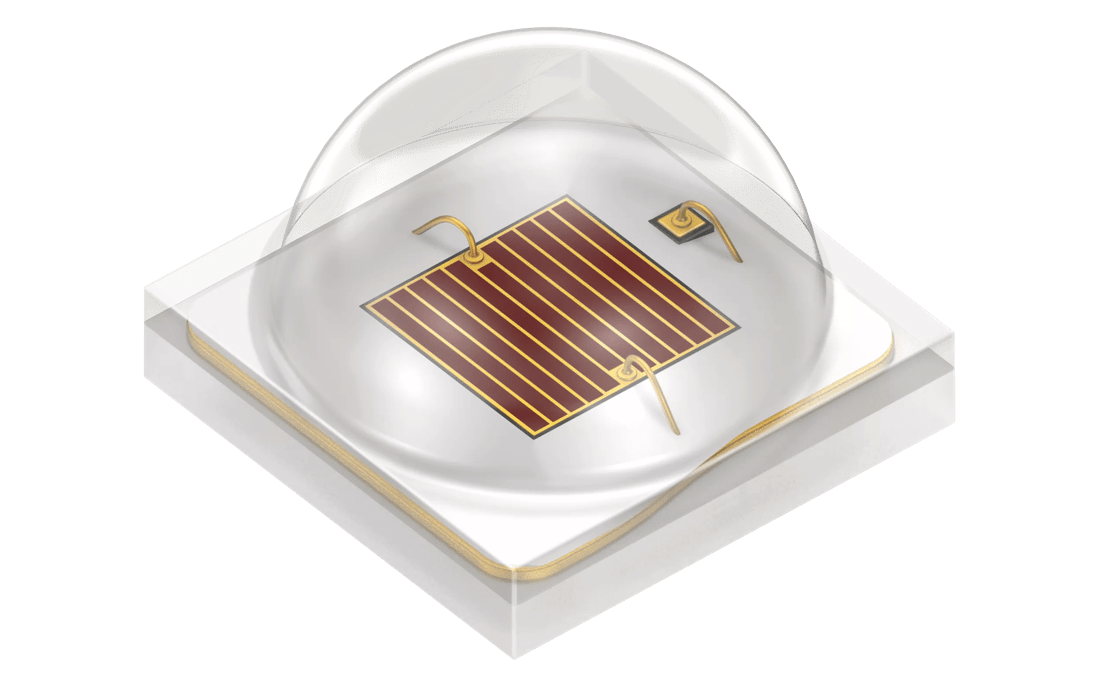

OSRAM OSLON™ Square, GH CSSRM2.24

販売終了
×
販売終了

品目

Third generation of OSLON Square with improved radiation pattern and enhanced performance. Most compact high-power LED with well known superior robustness, high reliability, long lifetime and low thermal resistance.
データシート
GH CSSRM2.24
英語
ダウンロード
選択と注文
お問い合わせ サポート

詳細

パラメーター

発光色
Hyper Red (635-666 nm)
電力
1.5 W
High
輝度
ΦV 典型
58.7 lm
IV 典型
18.7 cd
ΦE 典型
905 mW
IE 典型
288 mW/sr
ビーム角
∢ 典型
120 °
動作温度
Top 最小
-40 °C
Top 最大
125 °C
寸法
l 典型
3.0 mm
w 典型
3.0 mm
h 典型
2.17 mm

注文情報

製品タイプ 品目 注文コード 在庫状況
GH CSSRM2.24-V4V5-1-1 ΦE = 890 ... 960 mW (IF = 700 mA) Q65112A7928 生産終了
