詳細
パラメーター
発光色
Infrared (>800 nm)
電流
IF
100
mA
ピーク波長
λ
950
nm
輝度
ΦE
65
mW
IE
90
mW/sr
ビーム角
∢
30
°
寸法
l
3.1
mm
w
2.25
mm
h
1.6
mm
動作温度
Top
min.
-40
°C
Top
max.
100
°C
アプリケーション分野
注文コード
製品タイプ | 品目 | 注文番号 | 在庫状況 |
---|---|---|---|
SFH 4647 | Ie = 45 ... 180 mW/sr, (Ie=90 mW/sr typ.) (IF = 100 mA) | Q65111A6207 |
ステータス情報
フル生産
試作
新設計は予定されていません
注文・発送は可能です
生産終了
|
ダウンロード
For software click here/for further documents visit our
ダウンロードセンター
データシート
SFH 4647
Datasheet
アプリケーションノート
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs — Background and data sheet definition
Product related
Importing rayfiles and ray-measurement files of LEDs
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Handling of silicon resin LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
リソース
Electrical Simulation
Electrical Simulation
画像

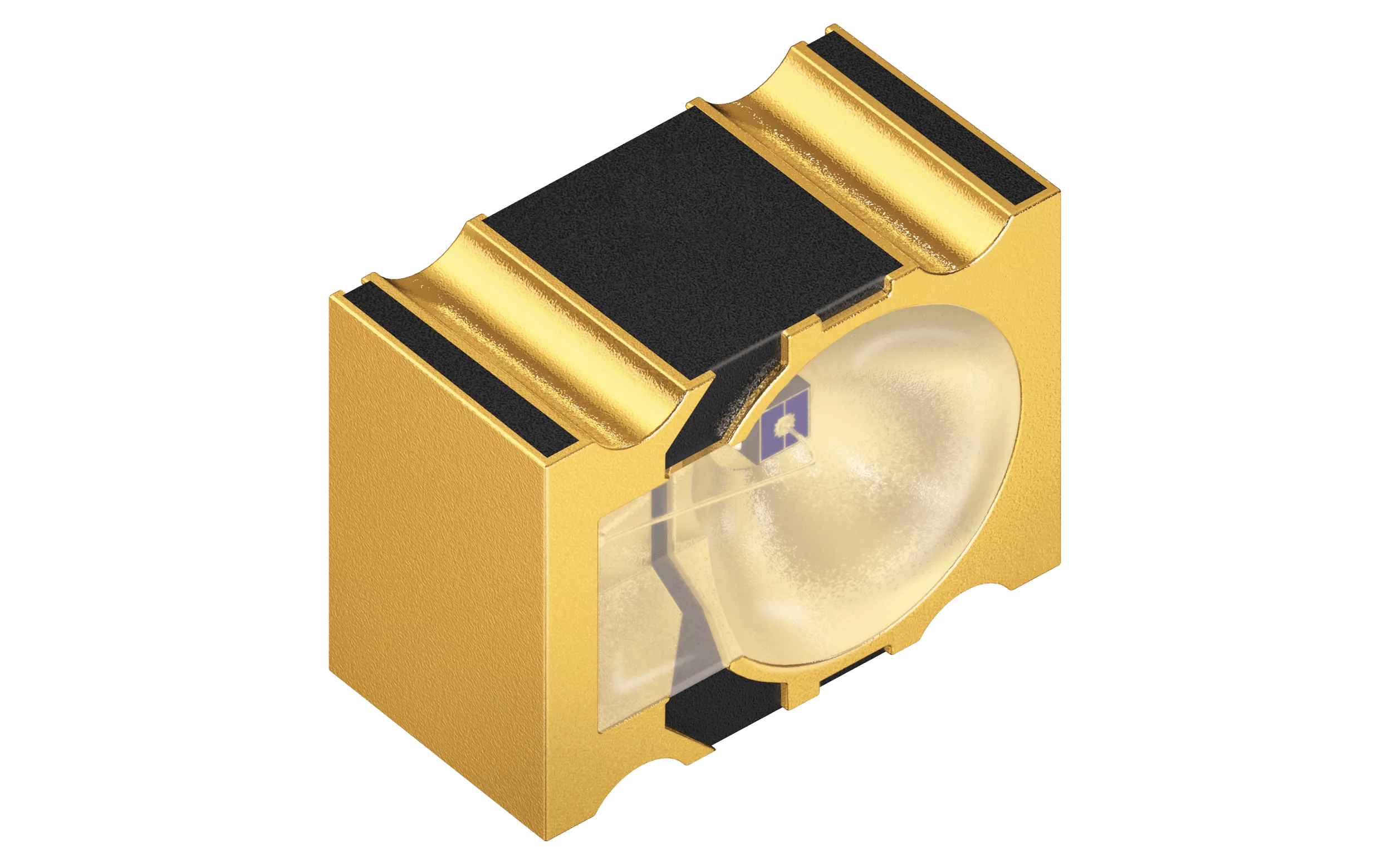

SFH4647_photo
