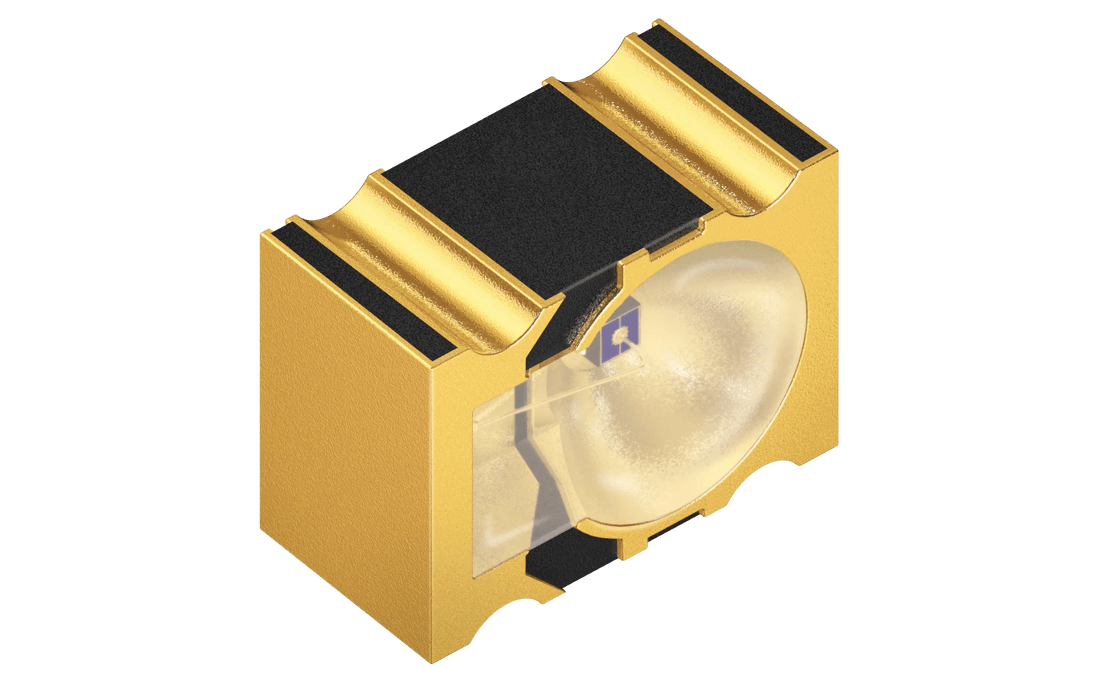

OSRAM MIDLED™, SFH 4647

Discontinued
×
Discontinued

Description

Narrow beam LED in MIDLED package (940 nm)
Datasheet
SFH 4647
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
65 mW
IE
90 mW/sr
Beam angle
∢
30 °
Dimension
l
3.1 mm
w
2.25 mm
h
1.6 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4647 Ie = 45 ... 180 mW/sr, (Ie=90 mW/sr typ.) (IF = 100 mA) Q65111A6207 Discontinued

Downloads

Datasheets
SFH 4647 · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US

Resources
Electrical Simulation · Electrical Simulation · FOLDER

Images

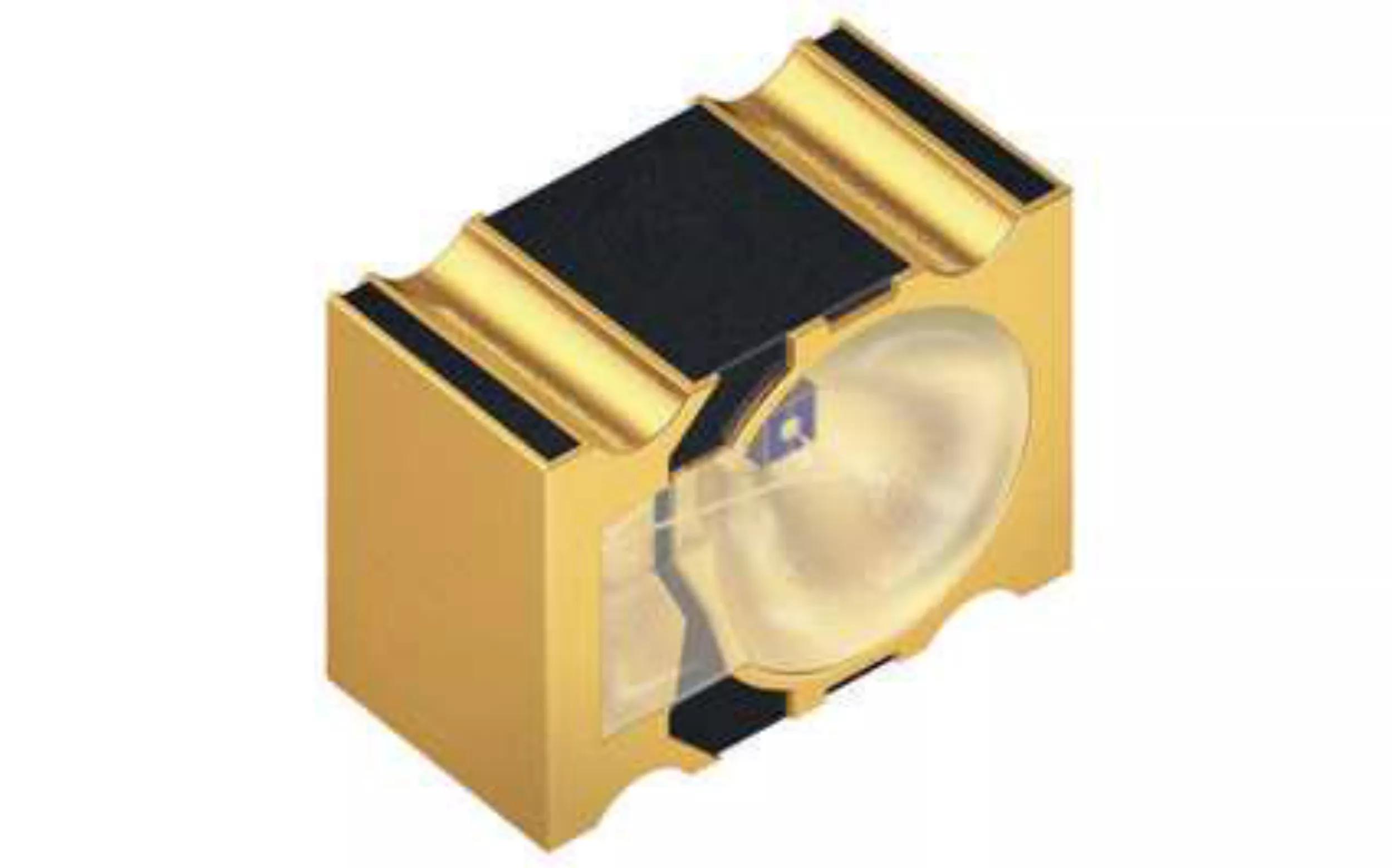

MIDLED SFH 4647 · Images · TIF
