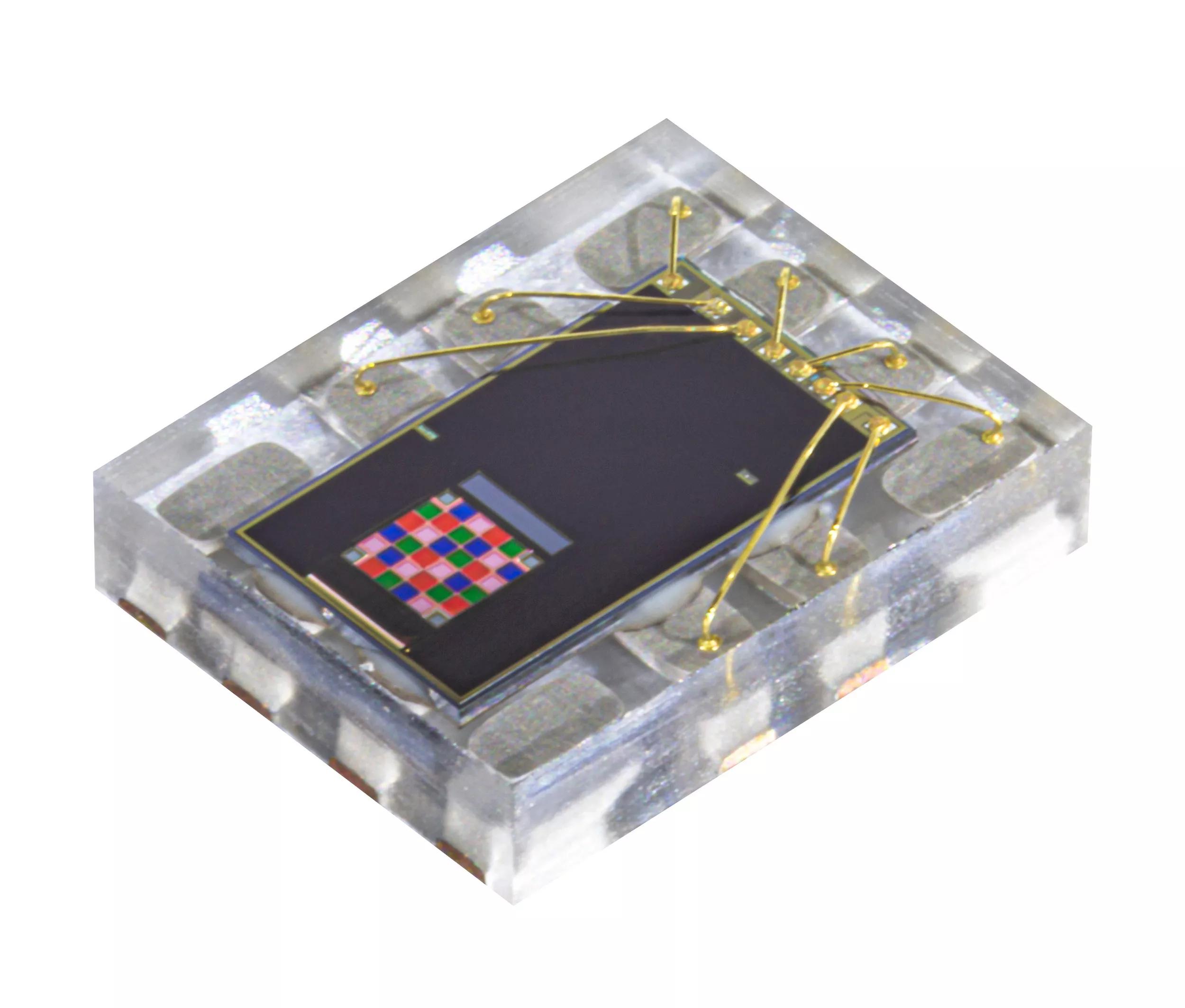

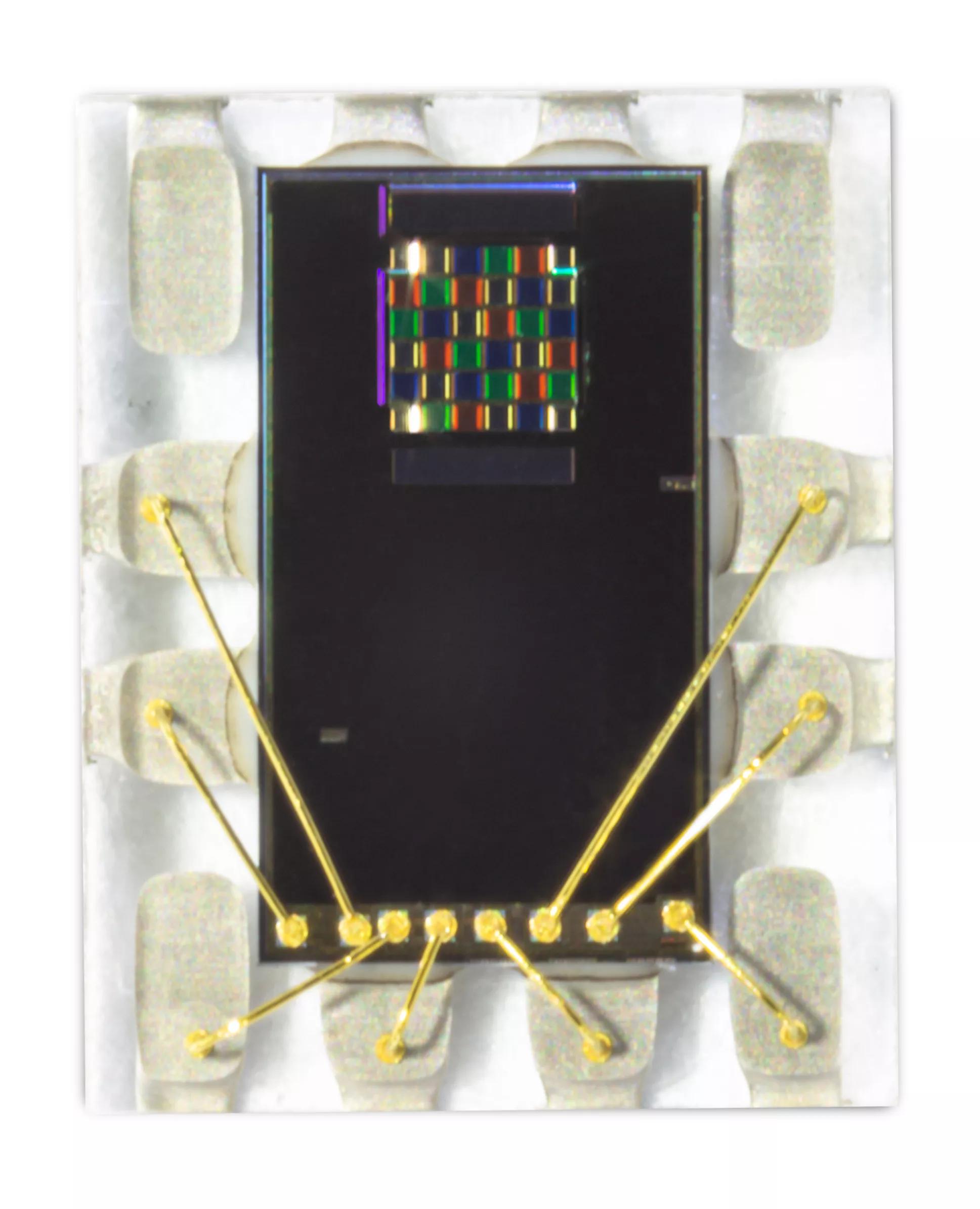

ams TCS3701 Color and Proximity Sensor

×

品目

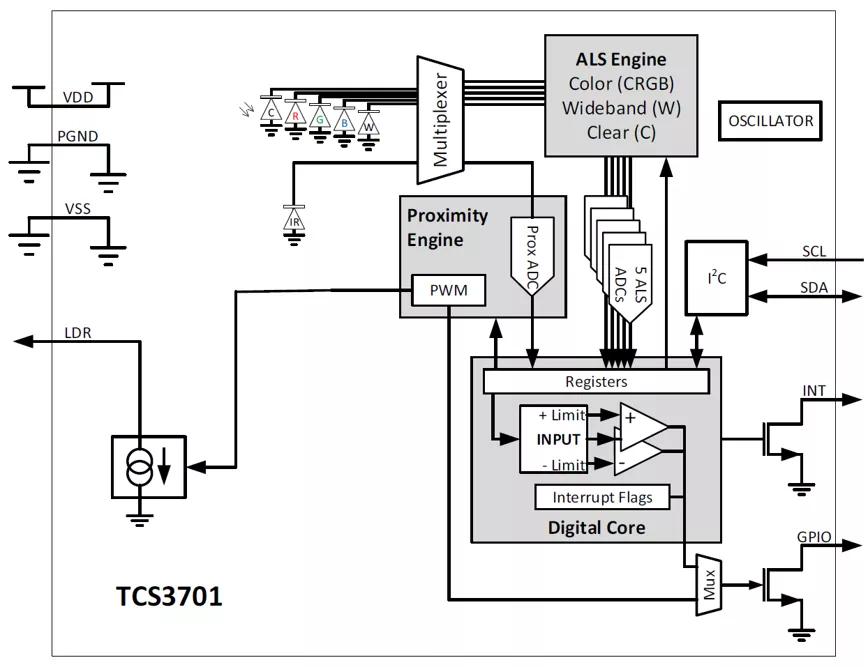

The TCS3701 is a very-high sensitivity light-to-digital converter that features ambient light and color (RGB) sensing in parallel with IR proximity detection. The Ambient light and color sensing function provides five concurrent ambient light sensing channels: Red, Green, Blue, Clear, and Wideband. The RGB and Clear channels have a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of illuminance, chromaticity, and color temperature to manage display appearance. The proximity function synchronizes IR emission and detection to sense nearby objects. The IR driver needs to be connected to an external LED or VCSEL emitter. The architecture of the engine features self-maximizing dynamic range, ambient light subtraction, advanced optical crosstalk noise cancellation, 14-bit data output and interrupt-driven 1.8V I²C communications interface. Sensitivity, power consumption, and noise can be optimized with adjustable IR LED timing and power. The proximity engine recognizes detect/release events and produces a configurable interrupt whenever the proximity result crosses upper or lower threshold settings.

詳細

特徴

  • Ultra-high ALS and color sensitivity
  • 1024x dynamic range
  • 0.18µm process technology with 1.8V I²C
  • High proximity crosstalk compensation
  • Companion non-predictive asynchronous algorithm

利点

  • Enables maximum design flexibility for operation behind Organic LED displays or dark inked glass
  • Enables dark room to sunlight operation
  • Reduces power consumption
  • When combined with a VCSEL emitter enables operation behind OLED
  • Enables ambient light measurement during display blanking periods

パラメーター

Function
color sensing
proximity detection
Supply voltage
典型
1.8 V
最小
1.7 V
最大
2.0 V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
最小
-30 °C
最大
70 °C
Emitter quantity
external
Integrated diffuser
No

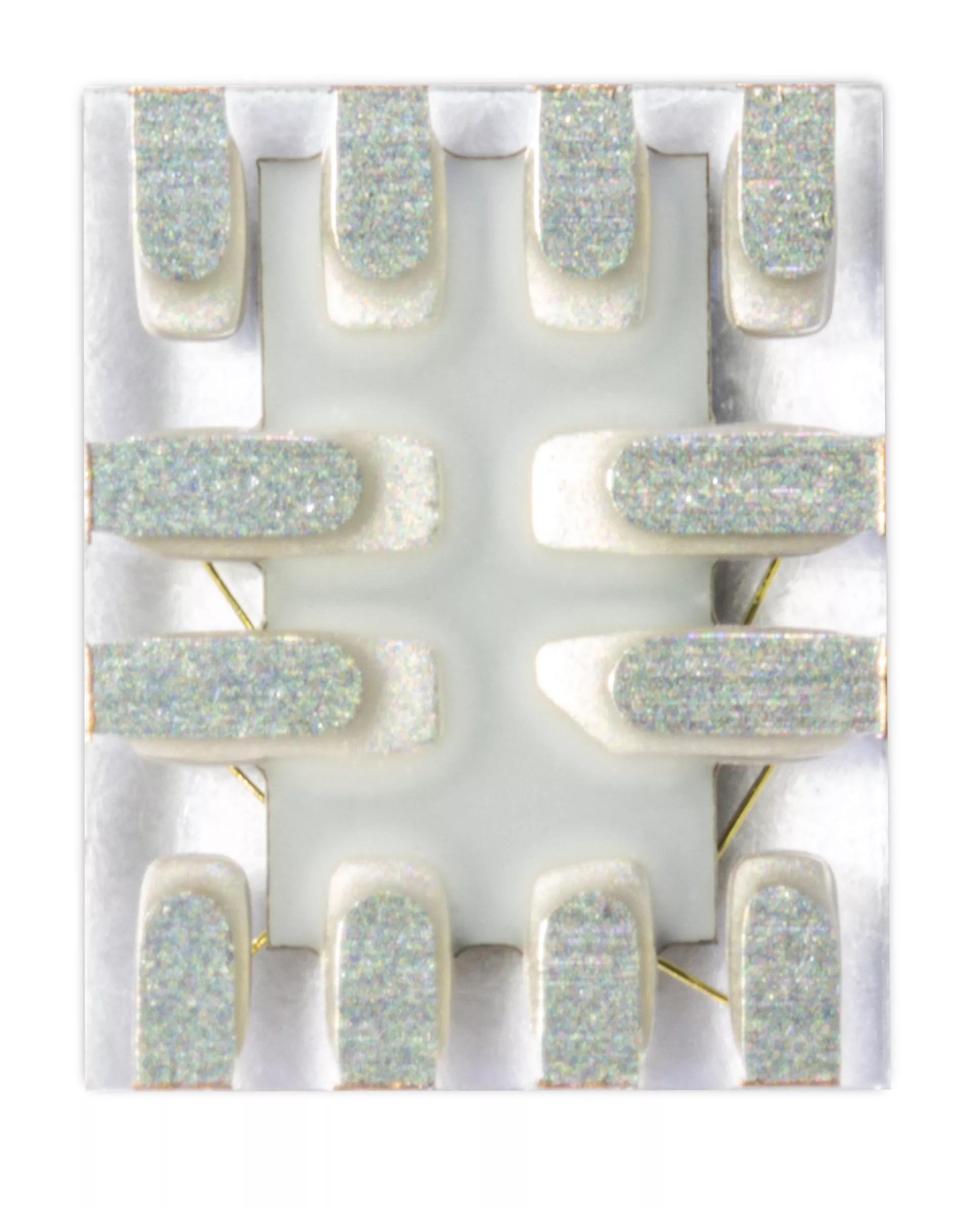

Package
QFN
Package dimension
l 典型
2.5 mm
w 典型
2.0 mm
h 典型
0.5 mm
Input/Output Voltage
1.8 V

注文コード

製品タイプ 品目 注文番号 在庫状況
TCS37013
TCS37013M
