Details

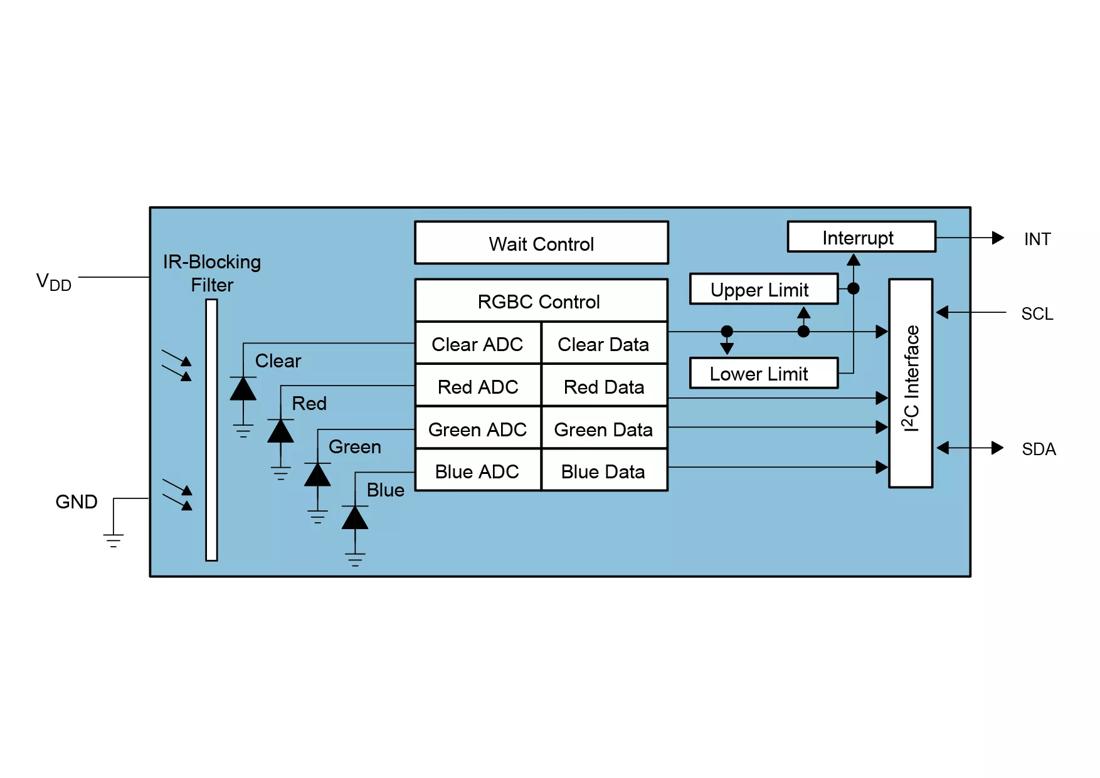

Features
- Integrated IR blocking filter
- 3.8M:1 dynamic range
- Four independent analog-to-digital converters
- A reference channel for color analysis (clear channel photodiode)
Benefits
- Minimizes IR and UV spectral component effects to produce accurate color measurement
- Enables accurate color and ambient light sensing under varying lighting conditions
- Minimizes motion/transient errors
- Clear channel provides a reference which allows for isolation of color content
Parameters
Function
color sensing
Supply voltage
3.0
V
min.
2.7
V
max.
3.3
V
Interface
input
I²C slave (400kHz)
output
I²C slave (400kHz)
Operating ambient temperature
min.
-40
°C
max.
85
°C
Integrated diffuser
No
Package
FN
Package dimension
l
2.4
mm
w
2.0
mm
h
0.65
mm
Input/Output Voltage
1.8 V
Application fields
