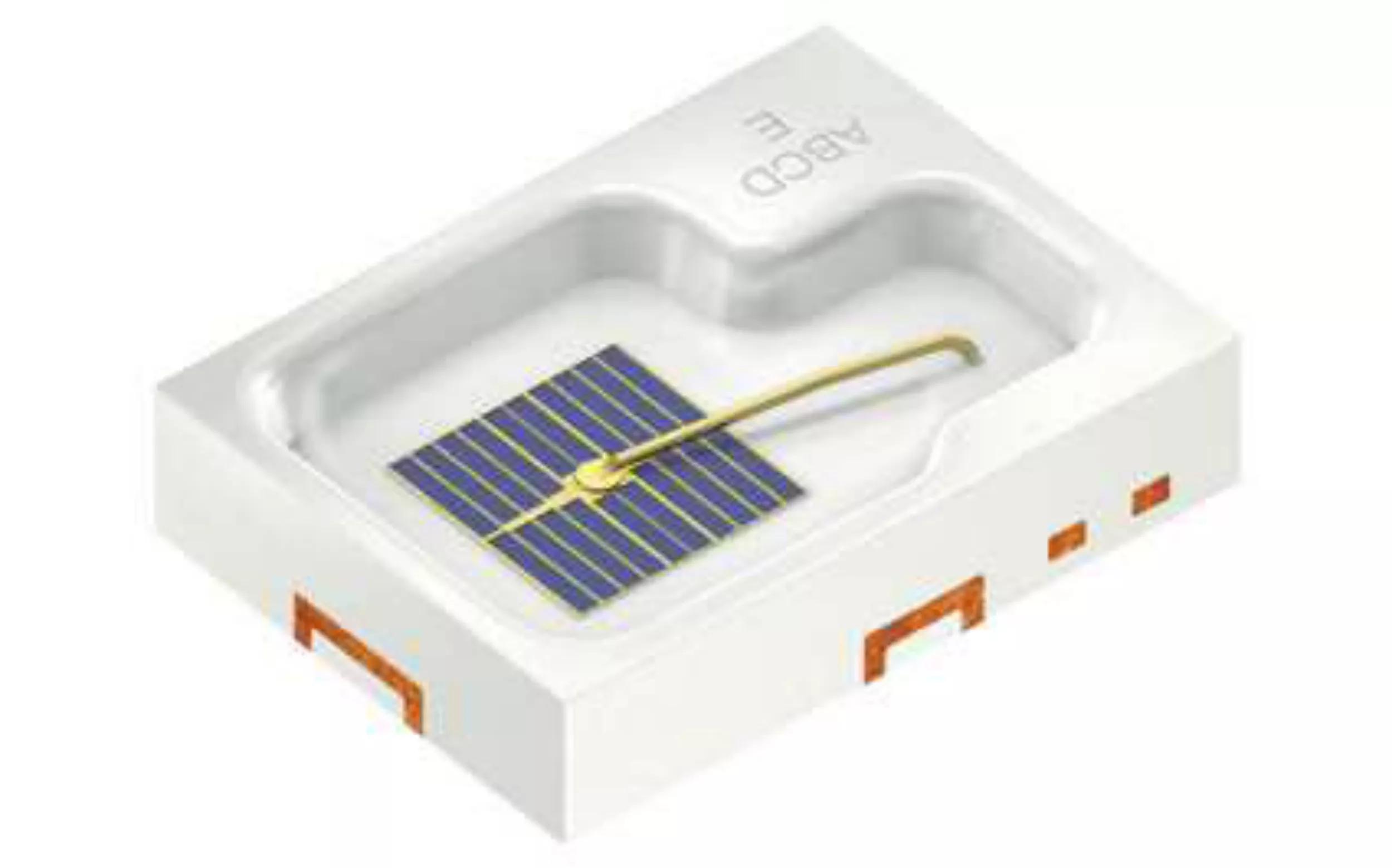

OSRAM SYNIOS™ P2720, SFH 4775S A01

×

Beschreibung

IR SYNIOS P2720 (940 nm) - 120°
Datenblatt
SFH 4775S A01
Englisch
Herunterladen
Chinesisch
Herunterladen
Auswählen & bestellen
Kontakt Support

Details

Parameter

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
1100 mW
IE
350 mW/sr
Beam angle
∢
120 °
Dimension
l
2.75 mm
w
2.0 mm
h
0.6 mm
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Bestellinformation

Produkt-Typ Beschreibung Bestellnummer Verfügbarkeit
SFH 4775S A01 Φe = 800 ... 1600 mW, (Φe=1100 mW typ.) (IF = 1000 mA) Q65112A4690 volle Produktion

Downloads

Datenblätter
SFH 4775S A01 · Datasheet · PDF · en_US

Anwendungshinweise
SYNIOS™ P2720 — 基本信息 · Product related · PDF · en_US
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-power emitters for illumination applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US
