Haushaltsgeräte & Werkzeug
Durch die Kombination mit modernen Licht- und Sensortechnologien ermöglichen wir einen effizienteren und sichereren Betrieb von Maschinen und eröffnen neue Perspektiven für Gerätedesign und Leistungsmerkmale.
Die intelligenten Haushaltsgeräte der Zukunft
Die Digitalisierung unserer Wohnräume sorgt für mehr Komfort und einen geringeren Energieverbrauch. Der Schlüssel zur Automatisierung ist eine Kombination von Beleuchtungs- und Sensortechnologie – sie macht unsere Haushaltsgeräte „intelligenter“ und bringt Farbe in Funktion und Design.
Die optische Technologie von ams OSRAM eröffnet ein neues Maß an Komfort und Qualität durch die Echtzeitüberwachung und -steuerung von Waschmaschinen, Geschirrspülern und Kühlschränken. Unsere Multispektralsensoren arbeiten im sichtbaren und Nah-Infrarotbereich. Mit diesen kostengünstigen Präzisionskomponenten können Sie zum Beispiel „einen Blick ins Wasser werfen“ und die Reinigungswirkung und Klarspülqualität beurteilen. Diese Sensorik im Chipformat umfasst eine Reihe von Angeboten, die Farbe, Partikel und Trübung im Wasser feststellen und verschiedene Gewebearten erkennen können.
Unsere Haushaltsgeräte werden immer intelligenter: Sie erkennen die Abwesenheit des Nutzers und schalten das Display aus, um Strom zu sparen. 1D, Einzel- oder Mehrzonen-Time-of-Flight-Sensorik versetzt das System in die Lage, die Anwesenheit des Nutzers zu erkennen und sogar einfache Handzeichen zu verstehen. Weitere Vorteile von ams OSRAM für Großgeräte sind: Näherungs- und Umgebungslichtsensorik für das Management von Benutzerdisplays, hochauflösende Bildsensorik und Positionssensorik für Motorsteuerung und Türsicherheit.
Eine neue Dimension von Leistungsmerkmalen, unterstützt durch die innovativen UV-C-Hochleistungs-LEDs von ams OSRAM und präzise Spektralsensoren, ermöglichen eine regelmäßige Reinigung des Geräts mittels integrierter Kontaminationsüberwachung an Filtern oder Oberflächen durch UV-C-stimulierte Biofluoreszenzmessungen. Wir bieten Ihnen die passende LED-Licht- und Sensorlösung mit verschiedenen Leistungs-, Spektrum- und Kombinationsoptionen für die jeweilige Endanwendung – sei es für innovative Beleuchtungen, überzeugende Funktionsmerkmale oder ansprechende Displaydesigns.
×
Innovative Lösungen für Kleingeräte
Die Sensoren, LEDs und Laser von ams OSRAM sind ein unverzichtbarer Bestandteil innovativer Lösungen für Kleingeräte. Kunden nutzen unsere Sensoren für die Näherungs- und Feuchtigkeitskontrolle in Haartrocknern. Grünes Laserlicht wird verwendet, um auf verschmutzte und staubige Bereiche hinzuweisen, die mit dem Staubsauger gereinigt werden müssen. In kosmetischen Anwendungen werden ams OSRAM Laser eingesetzt, um kurze, energiereiche Laserpulse zu erzeugen, die von den Pigmenten im Haar absorbiert werden und so den Follikel zerstören, wodurch das Haarwachstum in diesem Bereich verlangsamt oder ganz gestoppt wird. Durch die Kombination von Laser- oder LED-Lichtquellen in einem bestimmten Spektrum mit optischen Sensoren ergeben sich nahezu unbegrenzte Möglichkeiten für neue Lösungen. ams OSRAM unterstützt diese innovativen Lösungen über die gesamte Bandbreite der gewünschten Optimierungsparameter, wie Lichtquelle, Spektrum, Leistungsbereich, Formfaktoren und Kombinationsoptionen, Strahlformen und -optik und vieles mehr.
×
Laserdioden in Baumaschinen
Laserdioden können als Werkzeuge im Baugewerbe, in der Lagerverwaltung und sogar in der Materialverarbeitung neue Maßstäbe setzen.
Im modernen Bauwesen sind Laserwerkzeuge nicht mehr wegzudenken. Die Lasernivellierung zum Beispiel stellt sicher, dass ein im Bau befindliches Objekt perfekt ausgerichtet ist.
Laserdioden sind ferner die perfekte Lichtquelle für Abstandsmesser und Entfernungsmessungen. Laser-Abstandsmesser werden zum Beispiel in großem Umfang zur Automatisierung von Lagerverwaltungssystemen sowie in gewissen Produktionsprozessen und sogar bei der 3D-Modellierung eingesetzt.
Mit unseren neuen grünen Laserdioden profitieren Anwender von der viermal größeren Helligkeit des grünen Laserlichts im Vergleich zum roten, ohne auf die guten Eigenschaften des roten Lasers verzichten zu müssen. Durch die bessere Sichtbarkeit eignen sie sich ideal für den Einsatz auf längere Distanz und im Freien bei Tageslicht.
Im modernen Bauwesen sind Laserwerkzeuge nicht mehr wegzudenken. Die Lasernivellierung zum Beispiel stellt sicher, dass ein im Bau befindliches Objekt perfekt ausgerichtet ist.
Laserdioden sind ferner die perfekte Lichtquelle für Abstandsmesser und Entfernungsmessungen. Laser-Abstandsmesser werden zum Beispiel in großem Umfang zur Automatisierung von Lagerverwaltungssystemen sowie in gewissen Produktionsprozessen und sogar bei der 3D-Modellierung eingesetzt.
Mit unseren neuen grünen Laserdioden profitieren Anwender von der viermal größeren Helligkeit des grünen Laserlichts im Vergleich zum roten, ohne auf die guten Eigenschaften des roten Lasers verzichten zu müssen. Durch die bessere Sichtbarkeit eignen sie sich ideal für den Einsatz auf längere Distanz und im Freien bei Tageslicht.
×
Ausgewählte Produkte
ams AS7341 – 11-Channel Spectral Color Sensor
AS7341 is an 11-channel multi-spectral sensor for color detection and spectral analysis applications. The spectral response is defined in the wavelengths from approximately 350nm to 1000nm. 6 channels can be processed in parallel by independent ADCs while the other channels are accessible via a multiplexer. 8 optical channels cover the visible spectrum, one channel can be used to measure near infra-red light and one channel is a photo diode without filter (“clear”). The device also integrates a dedicated channel to detect 50Hz or 60Hz ambient light flicker. The flicker detection engine can also buffer data for calculating other flicker frequencies externally. The NIR channel in combination with the other VIS channel may provide information of surrounding ambient light conditions (light source detection). The device can also be synchronized to external signals via pin GPIO. AS7341 integrates filters into standard CMOS silicon via Nano-optic deposited interference filtertechnology and its package provides a built in aperture to control the light entering the sensor array. Control and Spectral data access is implemented through a serial I²C interface. The device is available in an ultra-low profile package with dimensions of 3.1mm x 2mm x 1mm.
ams TMD2636 IR Proximity Detection Module
The TMD2636 is an advanced IR proximity sensor module suited for short range proximity measurement detection and offered in the industry's smallest size (1.0mm x 2.0mm) and thin (0.35mm) optical land grid array module that incorporates a 940nm IR VCSEL and is factory calibrated for IR proximity response. The proximity detection feature provides nearby object detection by photodiode detection of reflected IR energy sourced by the integrated VCSEL emitter. Sensitivity, power consumption, and noise can be optimized with adjustable timing and power. Detect/release events can be interrupt driven, and occur when proximity result crosses upper and/or lower threshold settings. The proximity engine features advanced crosstalk noise cancellation through a wide range offset adjustments to compensate for unwanted IR energy reflection at the sensor. Proximity results are further improved by automatic ambient light subtraction.
ams TMF8801 1D Time-of-Flight Sensor
The TMF8801 is a true direct time-of-flight (ToF) sensor system in a single modular package which offers highly accurate depth accuracy detection through a sub-nanosecond light pulse and an antialiasing “stop-watch” method to measure round-trip time of pulse. It provides single zone detection of an object irrespective of the color, reflectivity and texture of the object. The single module with VCSEL emitter offers high dynamic range and detection sensing measurements from 2 – 250 cm distances. The device utilizes highly sensitive SPAD detection with fast compact time-to digital converters to make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to detect cover glass and reports an object distances operating with the highest SNR while compensating for dirt and smudges contaminants on a products cover glass to produce artifact free measurement. The histogram delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. Data output is through a 1.8V I²C fast-mode communications interface and an integrated micro controller is featured with all algorithms included on-chip with no need for external optics.
ams AS6221 Temperature Sensor
The AS6221 is a high accurate digital temperature sensor with an accuracy of up to ±0.09°C, which is ideal for healthcare applications, wearables and devices requiring high-performance thermal information.
The AS6221, is a complete digital sensor system, requires no calibration or linearization. It provides measurement outputs via a standard I²C interface. The sensor supports eight I²C addresses avoiding bus conflicts in multi-sensor use cases.
The ultra-small size of the sensor (WLCSP 1.5 mm x 1.0 mm) enables accurate body/skin temperature measurements in very small health and lifestyle monitoring products.
In addition to the high accuracy and the small form factor, the AS6221 offers a very low power consumption, for example measuring with 4 samples/s, the current consumption is only 6 µA. The sensor has 4 different automatic acquisition modes and keeps the high accuracy over the full supply range from 1.71 to 3.6 V.
An integrated alert functionality triggers an interrupt to the micro controller when a temperature threshold is exceeded. The temperature threshold for the alert function can be adjusted in a device register.The AS6221 production test setup is calibrated according NIST and the verification equipment is calibrated by an ISO/IEC-17025 accredited laboratory.

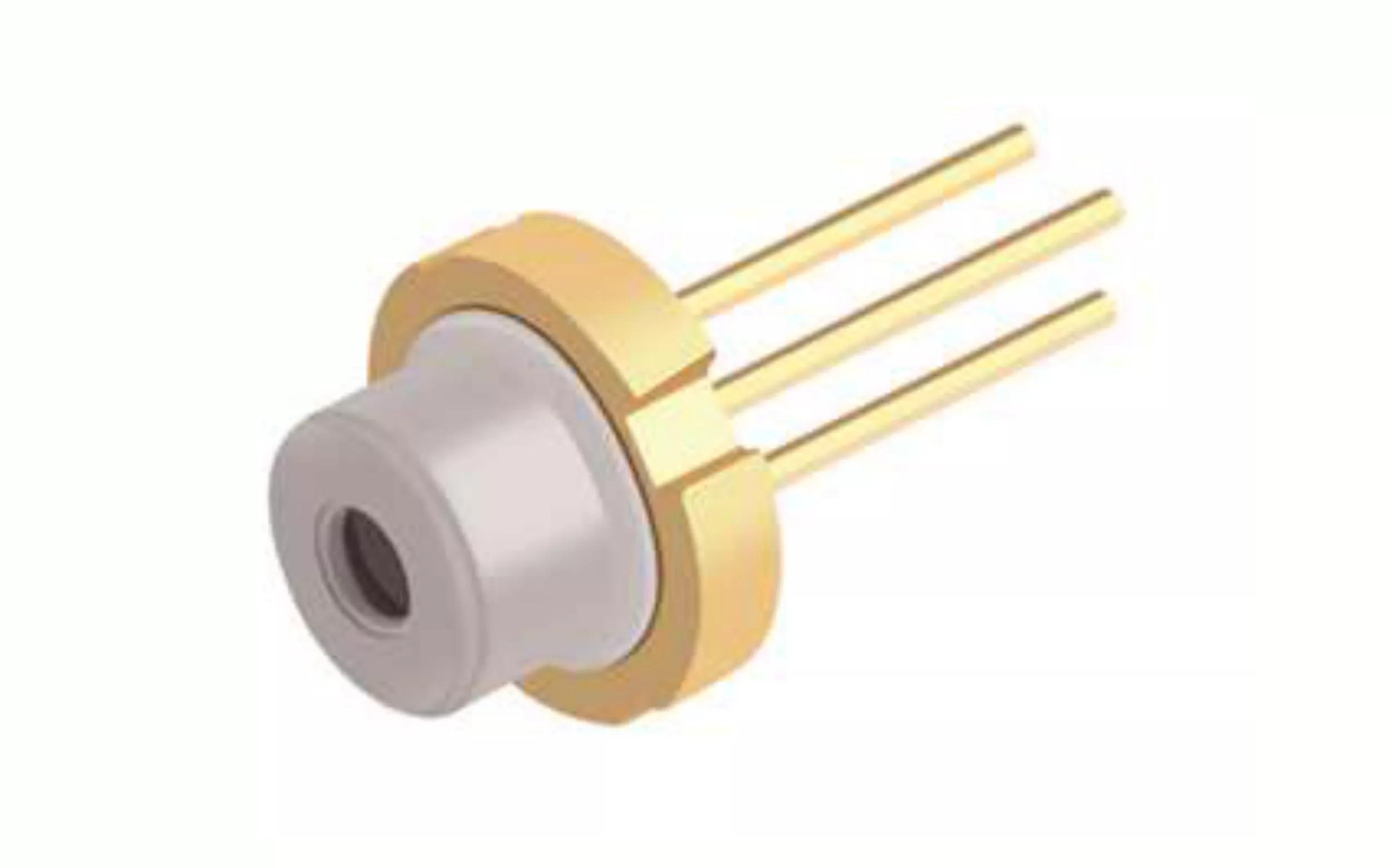

OSRAM Metal Can TO56, PLT5 510
Green Laser Diode in TO56 Package
OSRAM SYNIOS® S2222, KB DDLM31.13
This square package with just 2mm outline combines best performance with a small footprint. A centralized chip allows an easy integration in optical systems. The availability of different main colors and white points gives highest flexibility in various application areas.
OSRAM OSLON® UV 3535, SU CULEP1.VC
This compact UV-C LED is part of the OSLON UV series.
It allows a flexible design for any application which requires UV-C radiation.
ams AS7343 Spectral Sensor
The AS7343 is a 14-channel highly versatile, multi-purpose spectral sensor enabling new consumer, commercial, industrial and laboratory applications. It is optimized for reflective, transmissive and emissive measurements including color matching, fluid or reagent analysis or general spectral reconstruction.The spectral response is defined by individual channels covering approximately 380 nm to 1000 nm with 12+2 channels: 12 in the visible spectrum (VIS) to near-infrared (NIR) range, a clear channel and flicker channel. Applications can be assisted by full spectral reconstruction of light and an integrated flicker detection channel that can automatically flag ambient light flicker at 50/60 Hz as well as buffer data for externally calculating other flicker frequencies. AS7343 integrates high-precision optical filters onto standard CMOS silicon via deposited interference filter technology. A built-in aperture controls the light entering the sensor array to increase accuracy. A programmable digital GPIO and LED driver enable light source and trigger/sync control. Device control and spectral data access is implemented through a serial I²C interface. The device is available in an ultra-low profile package with dimensions of 3.1 mm x 2 mm x 1 mm.
ams AS7331 Spectral UV Sensor
The AS7331 is a low-power, low noise integrated UV sensor. The three separated UVA, UVB and UVC channels convert optical radiation signals via UV optimized photodiodes to a digital result and realize a continuous or triggered measurement. The irradiance responsivity can be adjusted via Gain, conversion time and internal clock frequency to effect sensitivity, full scale range and LSB. The by the AS7331 detected amount of radiation in the set Gain and conversion time configuration will be provided as digital counts by the AS7331. The AS7331 offers a range of 12 Gain steps by a factor of two for each step. The conversion time is internally controlled over a wide range of 15 steps by a factor of two for each step. With the input pin (SYN), the conversion time can be externally controlled to adapt the measurement to the given environment and time base.With its irradiance responsivity factor and conversion time, the AS7331 supports an overall huge dynamic range up to 3.43E+10 (resolution multiplied by gain range). It achieves an accuracy of up to 24-bit signal resolution (internal via I²C and shifter 16-bit), with an irradiance responsivity per count down to 2.38 nW/cm² at 64 ms integration time. Via an integrated divider, the 16-bit I²C output can be adjusted to the significant bits of interest.
Featured product families
Chip LED for industrial applications
The products are designed for optimized performance out of a very small form factor to realize state of the art solutions. The broad product portfolio addresses various areas inside applications like electronic equipment, gaming, white goods, illumination and backlighting.
FIREFLY® 0402 for industrial applications
The FIREFLY® 0402 is designed for use in consumer applications. Due to its low height and optical characteristics it is optimized for flat indirect backlighting.
LED ENGIN LuxiGen® for industrial applications
High Power UVA LED Portfolio for Industrial UV Curing;
LED ENGIN LuxiGen(R) UVA LED is an ideal solution for industrial UV curing, such as paint, ink, adhesive, resin and others; blacklight for entertainment and counterfeit detection. It features very high flux density in a small footprint, low thermal resistance, with narrow binning on wide wavelength range. These features allow users to create powerful compact fixtures with the ideal wavelength for their applications.
MIDLED® for industrial applications
The MIDLED offers remarkable high radiant intensity and flexibility for designers, because its package can be used both as a toplooker and as a sidelooker.
Micro SIDELED® for industrial applications
Flat side-emitting device ideal for compact assembly
Mini TOPLED® for industrial applications
With its small package size, integrated reflector, homogenous and extremely wide viewing angle it is a perfect product for LCD backlighting, switches, indicators, radios etc.
Multi TOPLED® for industrial applications
Extremely wide viewing angle, ideal for back lighting and coupling into light guides. Chips can be controlled separately, high signal efficiency possible by color change of the LED.
OSLON® Signal for industrial applications
OSLON® Signal LEDs offer cutting edge signaling design solutions with a significantly reduced number of LEDs per signal. They are the perfect fit for traffic lights, aviation, marine, rail, industrial, and transportation or other signaling applications. The tiny ceramic-based high-performance package from ams OSRAM sets new standards in terms of electro-optical efficiency even at high temperatures. Available in various colors and performance classes. The next generation of OSLON® Signal introduces a new 120° lens design for improved light extraction. Brightness and efficacy improvements are further achieved through implementation of the latest chip technologies and a reflective titanium dioxide casting. This new generation is fully compatible in footprint and solder pad design to the previous generation insuring an easy design in process for this high-performance LED.
PointLED® for industrial applications
Unlike conventional SMT LEDs, ams OSRAM’s PointLED® is a round component, capable of through-hole mounting. This means it doesn’t protrude above the surface of the circuit board, making it the ideal choice in all kinds of applications where space is critical. It can also be surface-mounted, making it the ultimate flexible choice of LED.
SMARTLED® 0603 for industrial applications
SMARTLED® 0603 – The innovative product joins the successful family of TOPLED®. Invested with the same high quality, its unique features are due to set new standards in product development and design, opening new applications on a new scale.
SYNIOS® E4014 for industrial applications
Optimized for light guides and backlighting with narrow widths. The combination of silicone resin, volume casting and volume emitter LED chip offers a homogenous radiation pattern.
SYNIOS® S2222 for industrial applications
Improved color variety for customer-specific lighting solutions for electronic devices using RGBW modules, interior lighting for passenger cabins in trains or airplanes as well as high-quality architectural lighting.
TOPLED® for industrial applications
ams OSRAM' Power TOPLED® is a standard product in LED lighting. With our great experience in SMT LED we are able to offer a high quality product for all kind of applications. Within the spectrum of visible and invisible light the TOPLED® product family offers solutions from backlighting up to basic gesture sensing and illumination in automotive interior applications. The latest product of this well established family ist the SFH 4246R, a new part for narrow space applications in the gesture sensing area.
TOPLED® E1608 for industrial applications
The TOPLED® E1608 expands ams OSRAM's low power portfolio by offering one of the smallest LED industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications. The TOPLED® E1608 is available in a broad variety of colors and brightness versions.
