Außen- und Industrie-beleuchtung

DURIS® E, a mid- and high-power LED portfolio from ams OSRAM is ideal for efficient and homogenous lighting applications. Industrial standard footprints (2835, 3014, 2835, 5630, 5050) offer a combination of different performance classes and colors, catering to various luminaire designs and application requirements. DURIS® E 5050 RGBW The ams OSRAM DURIS® E 5050 RGBW is an incredibly versatile package that can be used in many applications offering ams OSRAM level reliability and quality in a value-package. It combines four individually controlled LEDs for precise RGBW designs. Ideally suited for but not limited to architectural, decorative and hospitality lighting.

The proven, innovative DURIS® S 5 family consists of various white and colored mid-power LEDs with the standard 3030 dimensions and excellent efficiency, offering manufacturers and designers great versatility and flexibility.

DURIS® S 8 family is known as CHIP ARRAY SMD (CAS) among the illumination portfolio. The multichip family is a revolutionary compact high power LED with high luminous flux, high forward voltage and high color consistency. It provides totally new opportunities for indoor and outdoor door lighting especially directional retrofit applications.

Our latest invention joins the ranks of our established High-Power packages in a new 2424 footprint. Unlike conventional CSP solutions, the OSCONIQ® C 2424 not only offers highest performance levels, but measures up to other lensed High Power devices in terms of reliability and lifetime. CSPs deliver high lumen density which enables compact fixture designs, but lack reliability for outdoor applications. The trend to miniaturization is slow as traditional CSPs are not able to provide the same lifetime and robustness as High-Power LEDs especially for outdoor applications. Bread from our rich experience in automotive where EMC (Epoxy Molding Compound) has been widely used, qualified and has proven its reliability and performance, this new EMC package is now also available for general lighting applications and here to withstand the harshest conditions when needed. It is a breakthrough CSP. The OSCONIQ® C 2424 ticks all the boxes. Robustness, check. Efficacy and lifetime, check. High lumen density and a great price-performance ratio. It qualifies across all dimensions, as the best CSP-like component. With the OSCONIQ® C 2424, our known High-Power platforms – the OSLON® Square and OSCONIQ® P series, gain a new High Power ally. It is available in the three main CRIs – CRI 70, CRI 80 and CRI 90, together with a complete range of color temperatures to serve various application and design requirements.

Our latest launch – the OSCONIQ® E 2835, will offer a comprehensive premium 2835 line-up, offering key features only available in 3030 packages today whilst providing system-level advantages versus comparative 3030 package solutions. The OSCONIQ® E 2835 is available in three different versions covering a vast range of applications for premium interior lighting design solutions like for example Human Centric Lighting. Or simply where color matters. OSCONIQ® E 2835 CRI 90 QD Highest lumen density at best color over surface. ams OSRAM’s Quantum Dot (QD) technology enters the world of 2835 mid power packages. Serving outstanding efficacies, even at high color rendering indexes. The OSCONIQ E 2835 CRI 90 QD includes a specially developed QD phosphor with ams OSRAM proprietary that enables CRI 90 to achieve high efficacy and a best-in-class value for 0.5 W mid-power LEDs. OSCONIQ® E 2835 Cyan The OSCONIQ E 2835 Cyan features a cyan-enhanced spectrum which can suppress the production of melatonin, leading to increased productivity of humans. Circadian lighting made possible in a 2835 package. OSCONIQ® E 2835 CRI 80 Comprehensive high-reliability in an industry standard footprint delivering performance levels of above 212lm/W. The OSCONIQ® E 2835 CRI 80 offers the most complete CCT range enabling a vast range of interior lighting design solutions.

Until now, costly ceramic-based LEDs are used for professional exterior lighting applications. With the OSCONIQ® P series ams OSRAM is now offering epoxy-based packages that provide superior lumen/$. In addition, the new OSCONIQ® P high-power and ultra-high-power LEDs provide uncompromising reliability and performance. To achieve this, we have transferred our special automotive experience in combining competitive lead frame technology and high-power chips in the field of high volume products for General Lighting.

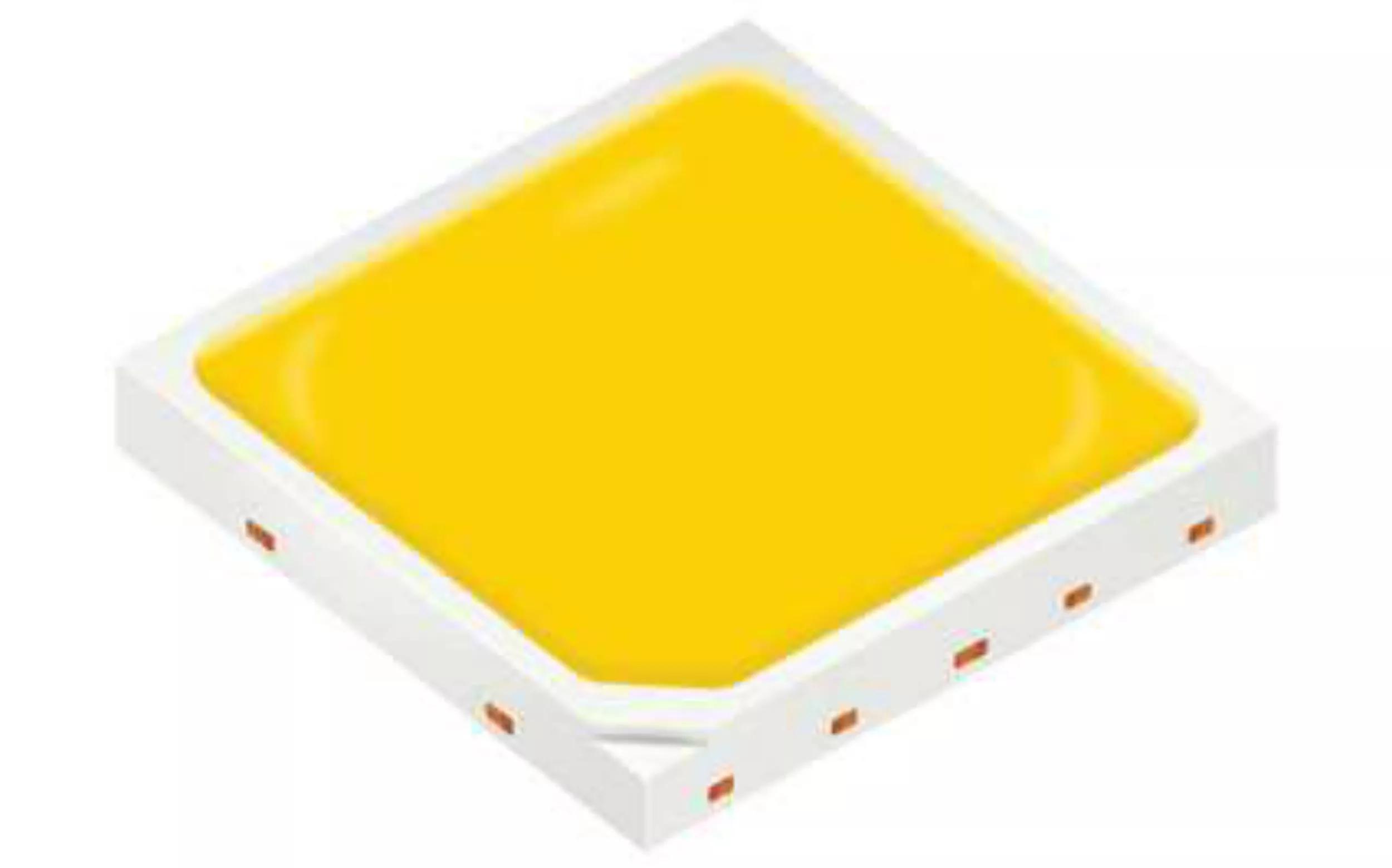

OSCONIQ® S 3030 CRI 80 The latest OSCONIQ® S 3030 mid power device, reaches even higher efficacies using the latest generation of sapphire flip chips. It can claim a performance of above 220 lm/W. It is a competitive mid-power LED with DLC premium lifetime, best lumen maintenance along with superior H2S results at attractive pricing levels. Optimum performances for but not limited to a wide variety of professional indoor lighting applications. OSCONIQ® S 5050 CRI 70 The latest QFN cast 5050 LED version adds to its impressive 5050 line-up of high efficacy performance combined with DLC Premium lifetime for street lighting, industrial and flood lighting solutions. The OSCONIQ® S 5050 CRI 80 joins the line-up of products targeting the outdoor and industrial lighting segment where not only performance and lifetime, but also reliability is key. With a superior corrosion protection, the OSCONIQ® leadframe package brings its robustness stability to another level further enhancing its suitability for professional lighting applications. While at the same time enabling higher fixture level efficacy.

The OSLON® Optimal platform offers a High-Power ceramic package in a 3030 footprint and 120° viewing angle, along with high performances, lifetime and reliability. Key parameters are binned at high temperature, closer to the real application conditions. Luminaire manufacturers and other suppliers can benefit from very stable light output at different temperatures, very low thermal resistance and long lifetime in existing designs. Very good values for the maximum junction temperature, maximum forward current and maximum de-rating limits are important benefits. The OSLON® Optimal strikes a perfect balance of performance and cost along with proven robustness, high reliability and long lifetime. Offered in four colors for ease of design and flexibility for both narrow and full spectrum solutions to meet all crop needs. Latest Product OSLON® Optimal Hyper Red, Far Red, Deep Blue and Horti White The latest addition to our OSLON® horticulture device series is an upgrade in performance compared to the existing OSLON® SSL platform using the latest chip technology which we are using for our 2mm² (OSLON® Square) platform, now also for 1mm² devices. Available with a 120° viewing angle a (larger) spherical lens.

OSLON® PURE 1414 family of LEDs, recognizing its advancements in high lumen density, efficiency, and color homogeneity, surpassing its predecessor, the PURE 1010. This 1.4 mm x 1.4mm device family offers a diverse array of colors, both direct and phosphor-converted, and a flexible color temperature range from 1800K to 6500K across 70, 80, & 90 CRI, empowering users to engage in precise color tuning and achieve tight clustering effects. Whether employed individually or clustered together, the OSLON® Pure 1414 can provide the desired spectrum, offering a versatile solution for customers seeking compact systems for small-sized products.

OSLON® SSL delivers the high efficacy that is necessary for professional indoor and outdoor lighting. The ceramic based package with its superior corrosion robustness adresses perfectly the needs for long lifetime applications.

The well-established OSLON® Square platform offers a High-Power package in a 3030 footprint and 120° viewing angle, along with industry leading performances, lifetime and reliability. Key parameters are binned at high temperature, closer to the real application conditions. Luminaire manufacturers and other suppliers can benefit from very stable light output at different temperatures, very low thermal resistance and long lifetime in existing designs. Very good values for the maximum junction temperature, maximum forward current and maximum de-rating limits are important benefits. The OSLON® Square platform provides customers with multiple options to design their luminaires. From ultra-high efficacy and quality luminaires, and compact designs to unique features. Latest Products OSLON® Square CRI 90 Gen 5 OSLON® Square – the most compact high-power LED with well-known superior robustness, high reliability, long lifetime and very low thermal resistance. The OSLON® Square CRI 90 Gen 5 GW CSSRM3.CM offers superior brightness and efficacy for professional lighting solutions where a high R9 value is needed. Ideal for stadium lighting and other high quality interior as well as exterior lighting applications. OSLON® Square Deep Blue The latest addition to our OSLON® Square horticulture device series, the OSLON® Square Deep Blue completes the well established and industry leading OSLON® Square horti series. Incorporating the latest chip technology, it provides an improved forward voltage, higher output and better efficacy than it’s predecessor. OSLON® Square Hyper Red next Generation Setting a new standard for professional horticulture applications. The new generation OSLON Square Hyper Red 660 nm is unmatched in its class of High Power LEDs. With an industry-leading efficacy of 76% WPE, the new generation OSLON Square Hyper Red delivers performance levels that cannot be refuted. OSLON® Square Batwing The OSLON Square Batwing extends ams OSRAMs comprehensive and market-leading portfolio for horticulture lighting with four new devices. With a new special primary optics, the lighting of greenhouses gets more homogeneous, avoiding hotspots directly under the luminaires. The better homogeneity and the special radiation pattern enable a reduction of fixtures within greenhouses at an even higher system efficiency. OSLON® Square Horti White With its latest addition, the OSLON® Square Horti White, ams OSRAM delivers an optimized spectrum on white for horticulture applications. The red content is reduced by 15% compared to standard CRI 70 solutions, making it more efficient. While the OSLON® Square Hyper Red takes the lead as the main supplier of red content. The OSLON® Square Horti White works best in combination with the OSLON® Square Hyper Red to increase the efficiency level up to 5 % for all applications where an additional white content is necessary. OSLON® Square Uniform OSLON® Square Uniform delivers superior color uniformity with the latest technological advances for CRI90. Uneven light conversion at different angles are a thing of the past. Ideally suited for ceiling and wall wash applications, you can reach superior Color-over-Angle performance using the OSLON® Square Uniform. Now available in CRI90, 2700 – 4000K. OSLON® Square White CRI 70 / CRI 80 OSLON® Square – the most compact high-power LED with well-known superior robustness, high reliability, long lifetime and very low thermal resistance. The OSLON® Square family is designed for professional outdoor and indoor lighting, based on different color rendering. The key parameters are binned at high temperature which is closer to the real application conditions of our customers.

Ideal for injecting in light guides for homogeneous illumination applications.
