Details
Parameter
Color of emission
White
Electrical power
15.0
W
Ultra High
Brightness
ΦV
1920
lm
IV
637
cd
ΦE
5920
mW
IE
1970
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
7.9
mm
w
3.75
mm
h
0.43
mm
Anwendungsfelder
Bestellnummern
| Produkttyp | Beschreibung | Bestellnummer | Verfügbarkeit |
|---|---|---|---|
| KW HLL531.TE-G0G8-ebvFfcbB46-RS5R | ΦV = 1640 ... 2190 lm (IF = 1000 mA) | Q65112A8357 |
Status information
volle Produktion
Vorserie
Nicht für neues Design geplant
Bestellung und Versand sind noch möglich
Ausgelaufen
|
Downloads
Für weitere Dokumente besuchen Sie unser
Download Center
Anwendungshinweise
Preventing LED failures caused by corrosive materials
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
The thermal measurement point of LEDs
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Behaviour of InGaN LEDs in parallel circuits
Electrical design
LED diagnosis in automotive applications
Electrical design
Dimming InGaN LEDs
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Ressourcen
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Bilder

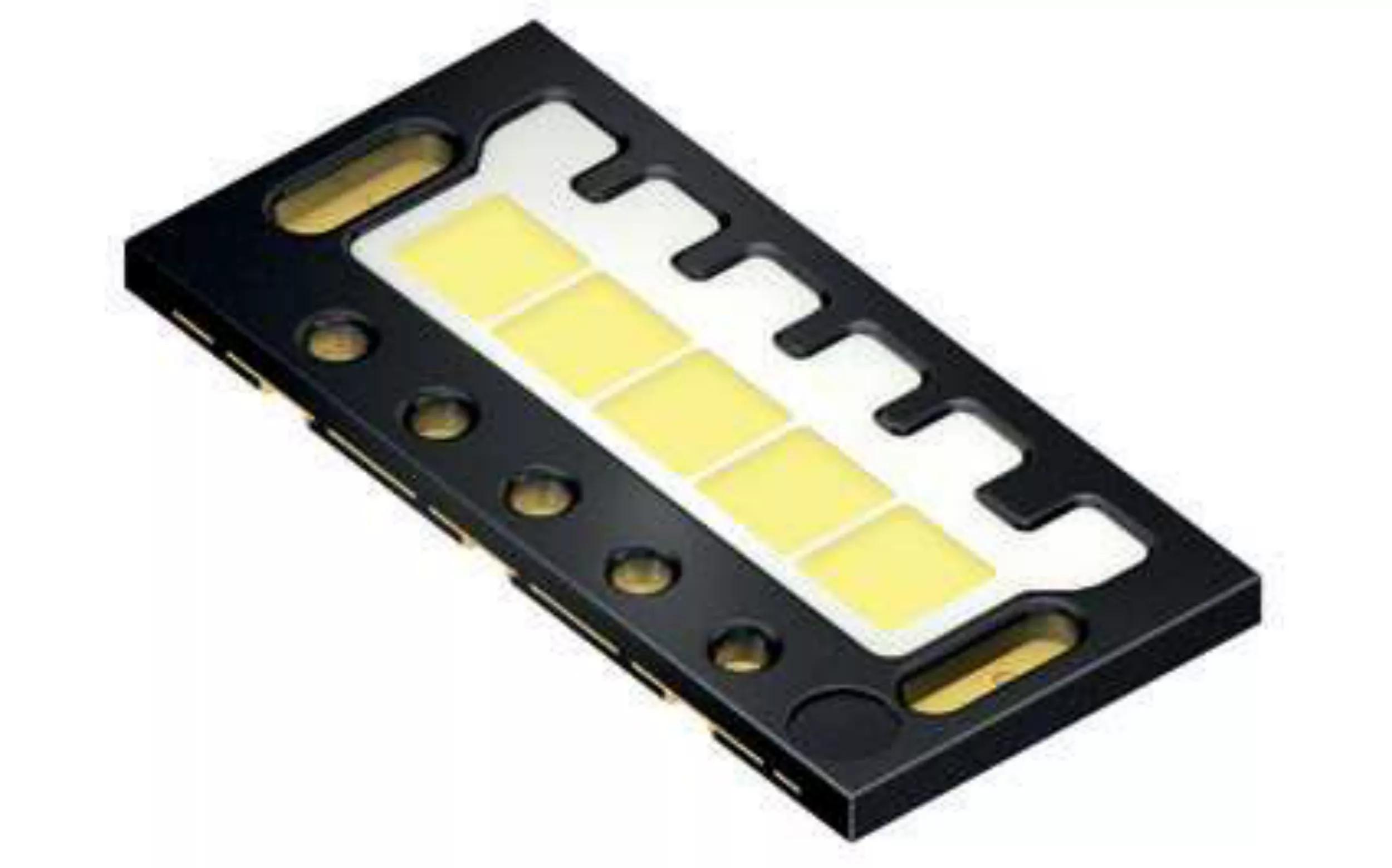

OSLON Black Flat - KW HLL531-TE_Productpicture
