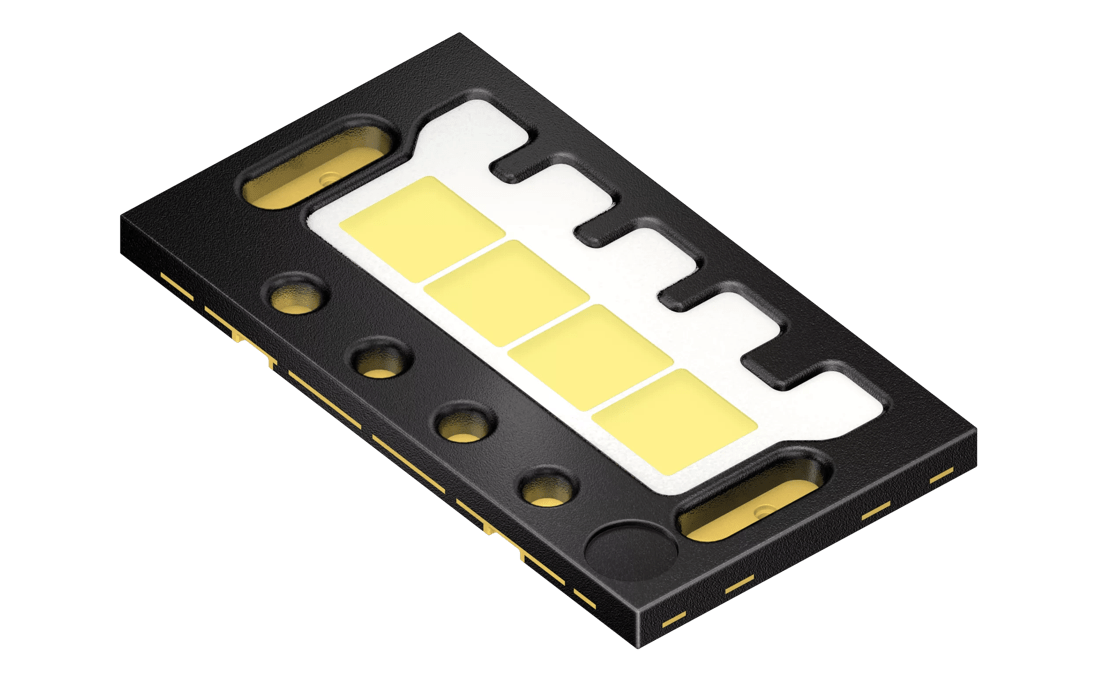

OSRAM OSLON™ Black Flat S, KW4 HKL533.TK

×

Description

SMT package for High Power Forward Lighting applications widely in-use in global automotive market since several years. The leadframe based black package concept provides outstanding contrast and excellent 2nd board reliability for standard Headlamp solutions. The OSLON Black Flat S meets both excellent brightness in combination with high luminance.
Datasheet
KW4 HKL533.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
12.0 W
Ultra High
Brightness
ΦV
1750 lm
IV
565 cd
ΦE
5480 mW
IE
1770 mW/sr
ΦP
7.8 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
6.8 mm
w
3.75 mm
h
0.49 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW4 HKL533.TK-F5FB-4L36M1-AGAE ΦV = 1550 ... 1940 lm (IF = 1000 mA) Q65115A0684 Full production
KW4 HKL533.TK-F6FB-4L35M1-AGAE ΦV = 1600 ... 1940 lm (IF = 1000 mA) Q65115A0685 Full production
KW4 HKL533.TK-F6FB-5L26M1-AGAE ΦV = 1600 ... 1940 lm (IF = 1000 mA) Q65115A0686 Full production
KW4 HKL533.TK-F7FB-5L26M1-AGAE ΦV = 1650 ... 1940 lm (IF = 1000 mA) Q65115A0687 Full production
