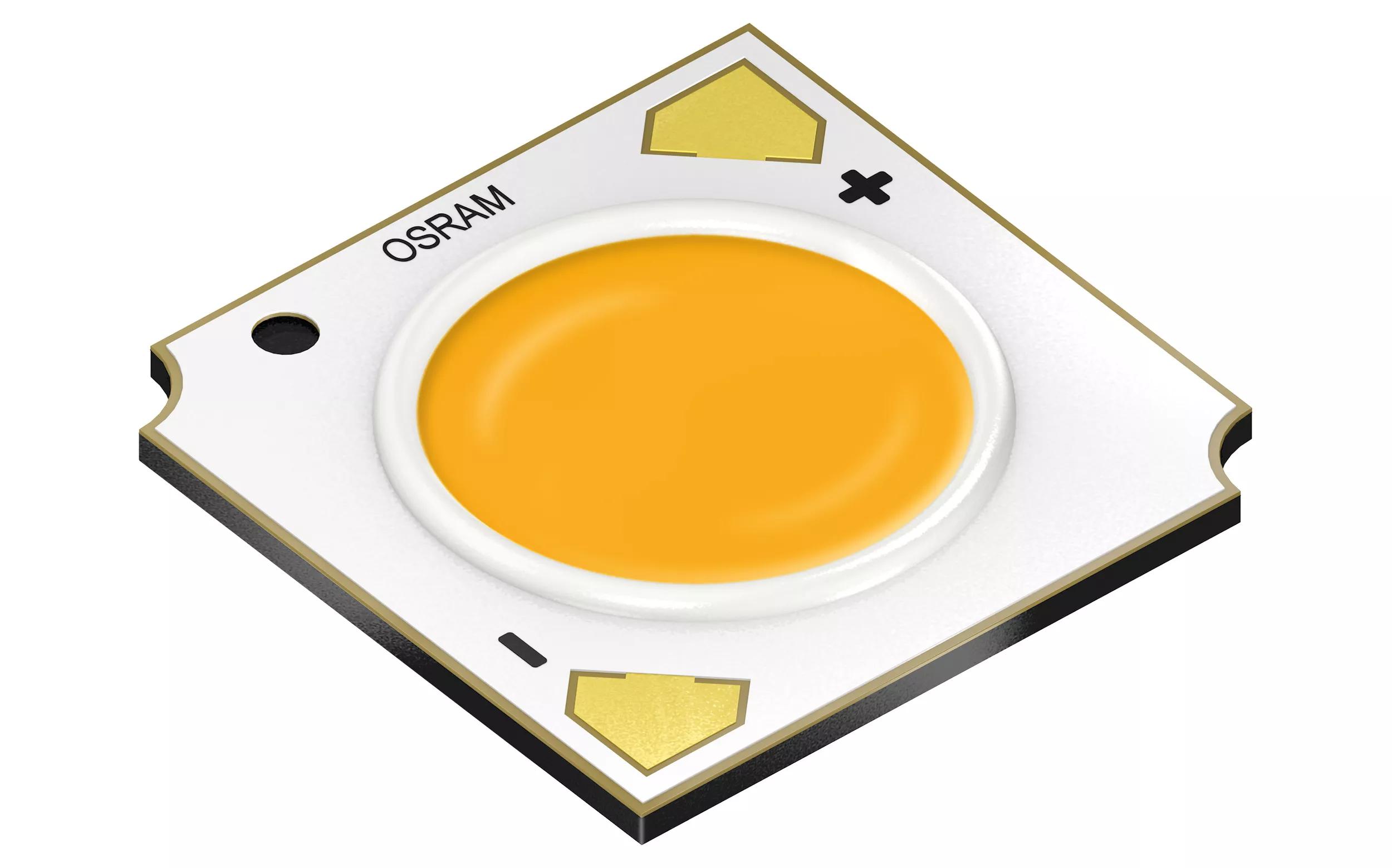

OSRAM SOLERIQ™ S 13, GW KAGLB2.CM

중단됨
×
중단됨

설명

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
데이터시트
GW KAGLB2.CM
영어
다운로드
선택 & 주문
문의 지원

세부 정보

조건

Color of emission
White
CRI
90
Electrical power
24.0 W
Ultra High
Brightness
ΦV
2370 lm
IV
812 cd
ΦE
8670 mW
IE
2970 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C

주문 정보

제품 유형 설명 주문 코드 재고 여부
GW KAGLB2.CM-SQSR-27B3 ΦV = 1940.0 ... 2240.0 lm, 2700 K (IF = 700 mA) Q65111A9163 단종
GW KAGLB2.CM-SQSR-27S3 ΦV = 1940.0 ... 2240.0 lm, 2700 K (IF = 700 mA) Q65111A9006 단종
GW KAGLB2.CM-SRSS-30B3 ΦV = 2100.0 ... 2400.0 lm, 3000 K (IF = 700 mA) Q65111A9162 단종
GW KAGLB2.CM-SRSS-30S3 ΦV = 2100.0 ... 2400.0 lm, 3000 K (IF = 700 mA) Q65111A9005 단종
GW KAGLB2.CM-SSST-35B3 ΦV = 2240.0 ... 2590.0 lm, 3500 K (IF = 700 mA) Q65111A9161 단종
GW KAGLB2.CM-SSST-35S3 ΦV = 2240.0 ... 2590.0 lm, 3500 K (IF = 700 mA) Q65111A8998 단종
GW KAGLB2.CM-STSU-40S3 ΦV = 2400.0 ... 2800.0 lm, 4000 K (IF = 700 mA) Q65111A8997 단종
