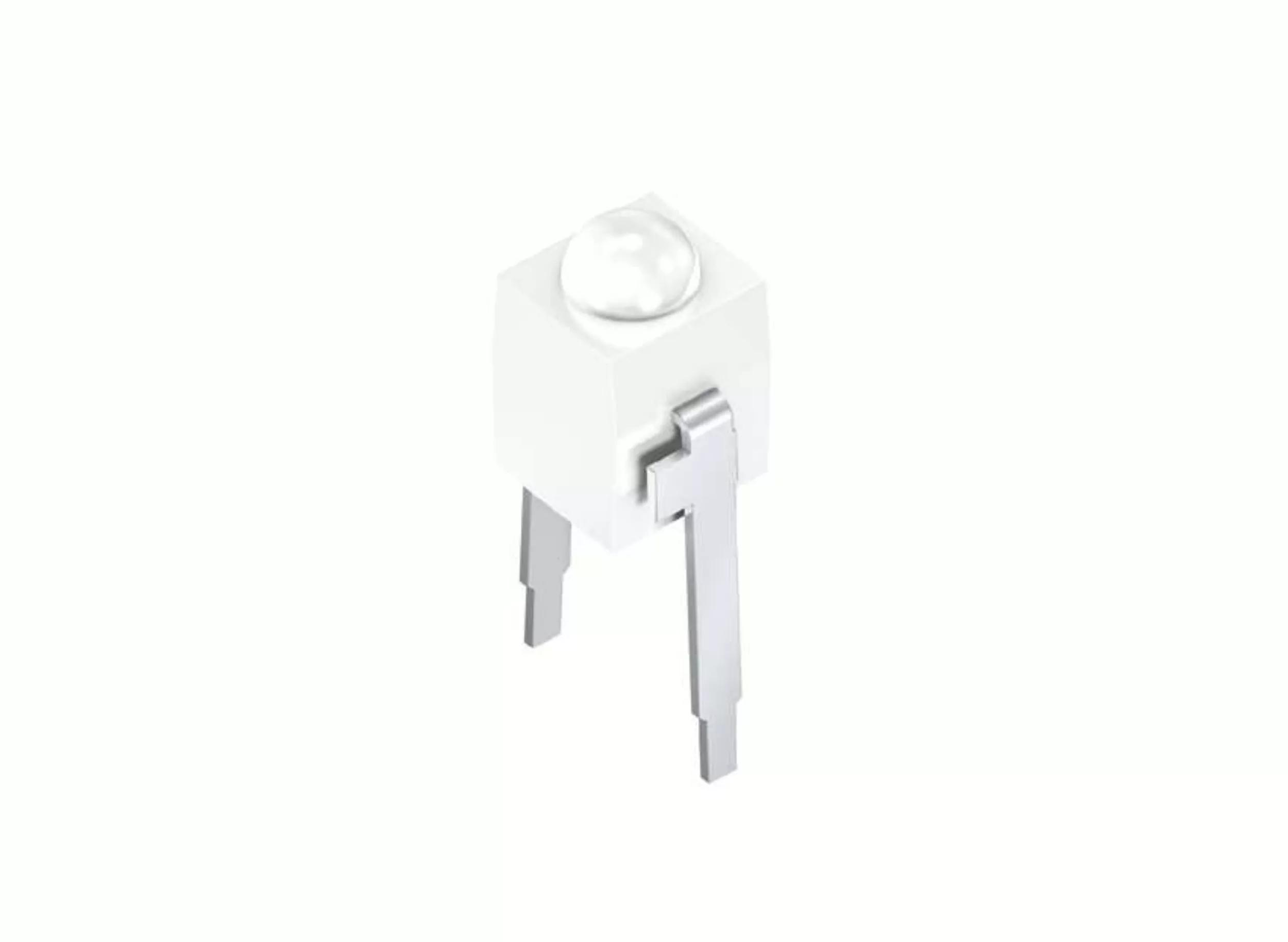

OSRAM Array Mini, BPX 81

Discontinued
×
Discontinued

설명

Silicon NPN Phototransistor

세부 정보

조건

Photocurrent
660.0 µA
Fall time
tf
7.0 µs
Rise time
tf
7.0 µs
Spectral range of sensitivity typ.
λ10% min.
450 nm
λ10% max.
1100 nm
Radiant sensitive area
A
0.11 mm²
Beam angle
36 °
Dimension
l
2.2 mm
w
2.0 mm
h
3.45 mm
Operating temperature
Top min.
-40 °C
Top max.
80 °C

주문 코드

제품 유형 설명 주문 번호 재고 여부
BPX 81-4 IPCE = 710 ... 1120 µA (Ee=0.5 mW/cm²) Q62702P0043S004
BPX 81 IPCE = 280 ... 1120 µA, (IPCE=660 µA typ.) (Ee=0.5 mW/cm²) Q62702P0020
BPX 81-3 IPCE = 450 ... 710 µA (Ee=0.5 mW/cm²) Q62702P0043S003
BPX 81-3/4 IPCE = 450 ... 1120 µA (Ee=0.5 mW/cm²) Q62702P3584
BPX 81-2/3 IPCE = 280 ... 710 µA (Ee=0.5 mW/cm²) Q62702P3583
