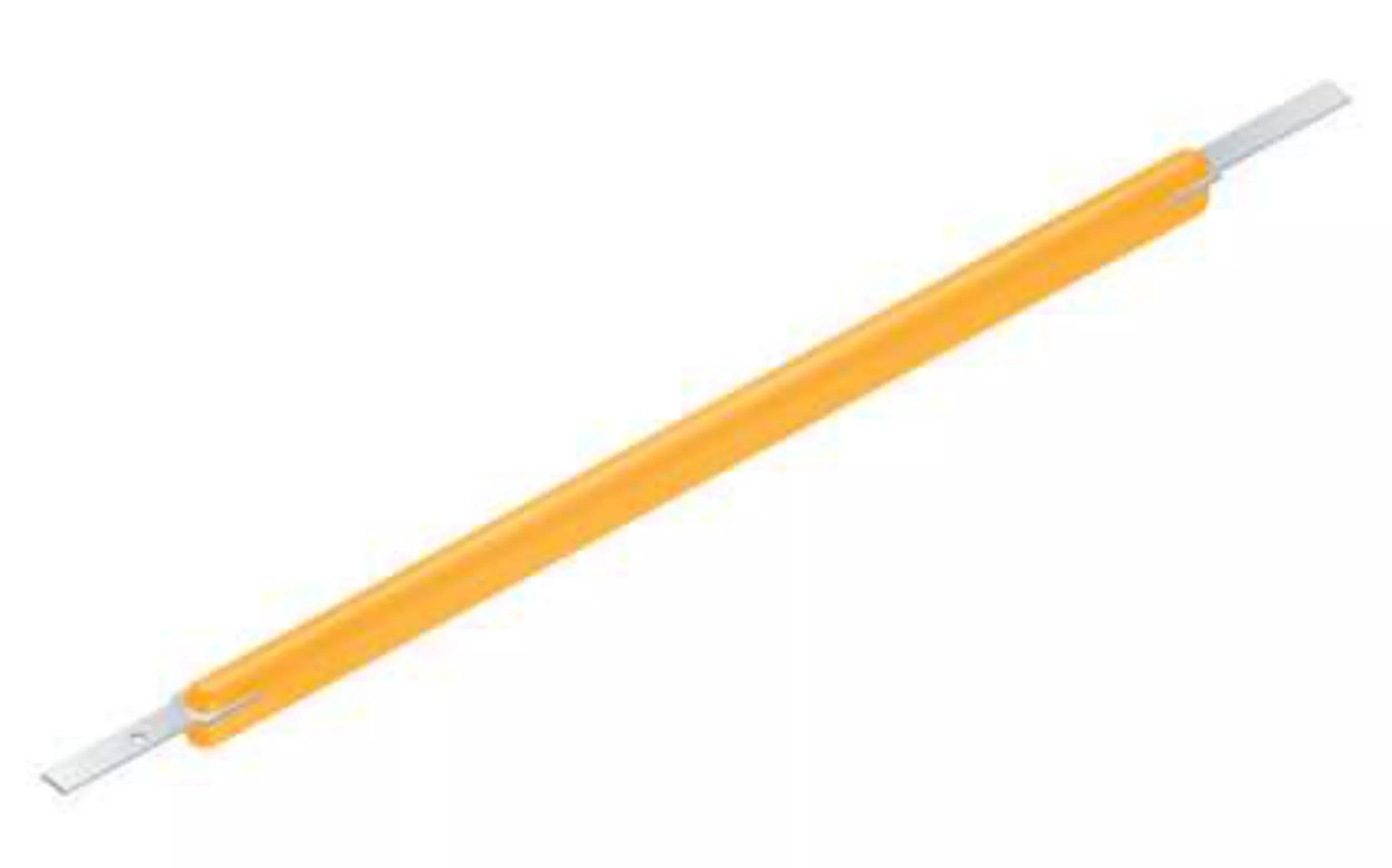

OSRAM DURIS® L 38, GW T3LWF1.EM

Discontinued
×
Discontinued

Beschreibung

The SOLERIQ® L 38 combines high efficacy and a wide beam angle into small footprint ( 32.0mm x 2.2mm), which is ideal choice for all 360° bulb and candle light application.

Details

Parameter

Color of emission
White
CRI
82
Electrical power
1.5 W
High
Brightness
ΦV
257 lm
IV
62 cd
ΦE
810 mW
IE
195 mW/sr
Beam angle
360 °
Operating temperature
Top min.
-40 °C
Top max.
55 °C
Dimension
l
38.0 mm
w
2.2 mm
h
2.2 mm

Bestellnummern

Produkt-Typ Beschreibung Bestellnummer Verfügbarkeit
GW T3LWF1.EM-MTNP-27S5-1 ΦV = 240.0 ... 304.0 lm, 2700 K (IF = 30 mA) Q65112A5030
GW T3LWF1.EM-MSMU-25S5-1 ΦV = 224.0 ... 280.0 lm, 2500 K (IF = 30 mA) Q65112A5028
GW T3LWF1.EM-MRMT-22S5-1 ΦV = 210.0 ... 259.0 lm, 2200 K (IF = 30 mA) Q65112A5029

Downloads

Datenblätter

Datasheet

Anwendungshinweise
