OSRAM OSRAM OSTAR™ Projection Compact, KT CULPM1.13

×

설명

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.
데이터시트
KT CULPM1.13
영어
다운로드
중국어
다운로드
선택 & 주문
문의 지원

세부 정보

조건

Color of emission
True Green (513-545 nm)
Electrical power
3.9 W
High
Brightness
ΦV
377 lm
IV
134 cd
ΦE
774 mW
IE
275 mW/sr
Beam angle
∢
110 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

주문 정보

제품 유형 설명 주문 코드 재고 여부
KT CULPM1.13-NRNU-34 ΦV = 330 ... 450 lm (IF = 1400 mA) Q65113A6283 완전 가동 생산
KT CULPM1.13-NSPP-34 ΦV = 359 ... 484 lm (IF = 1400 mA) Q65113A8338 완전 가동 생산

다운로드

데이터시트
KT CULPM1.13 · Datasheet · PDF · en_US

애플리케이션 노트
Projection with LED light sources · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
欧司朗光电半导体有限公司 LED 的测量、 · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
LED 无铅回流焊的详细介绍 · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

자원
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

이미지

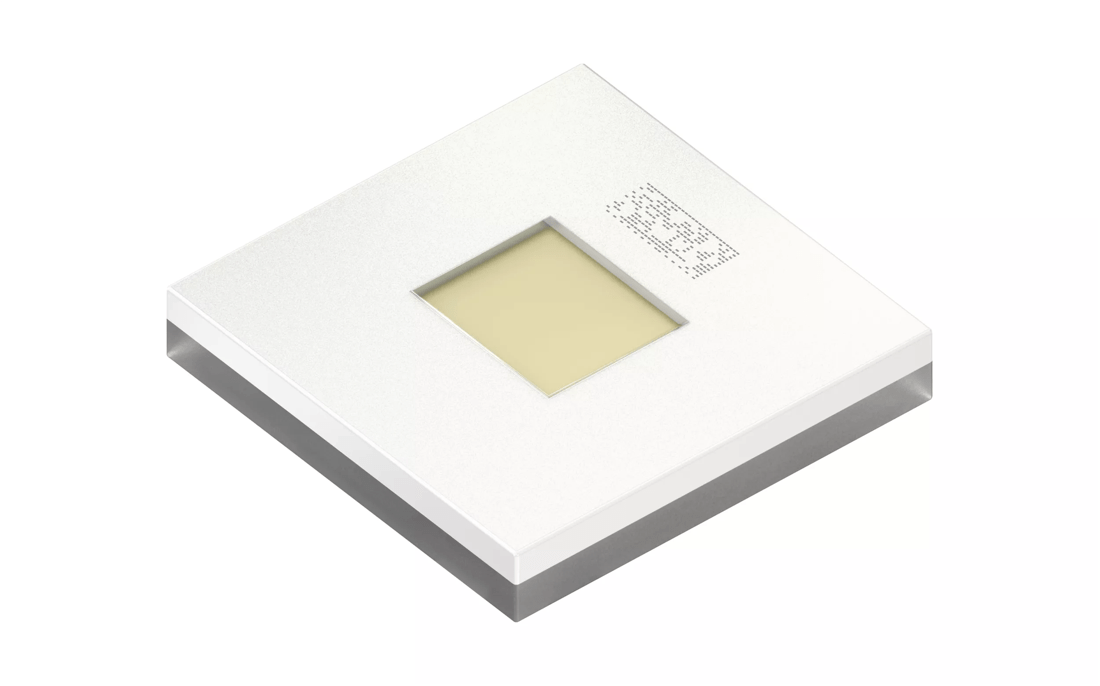

KT_CULPM1-13_42x26mm_cmyk · Images · TIF
