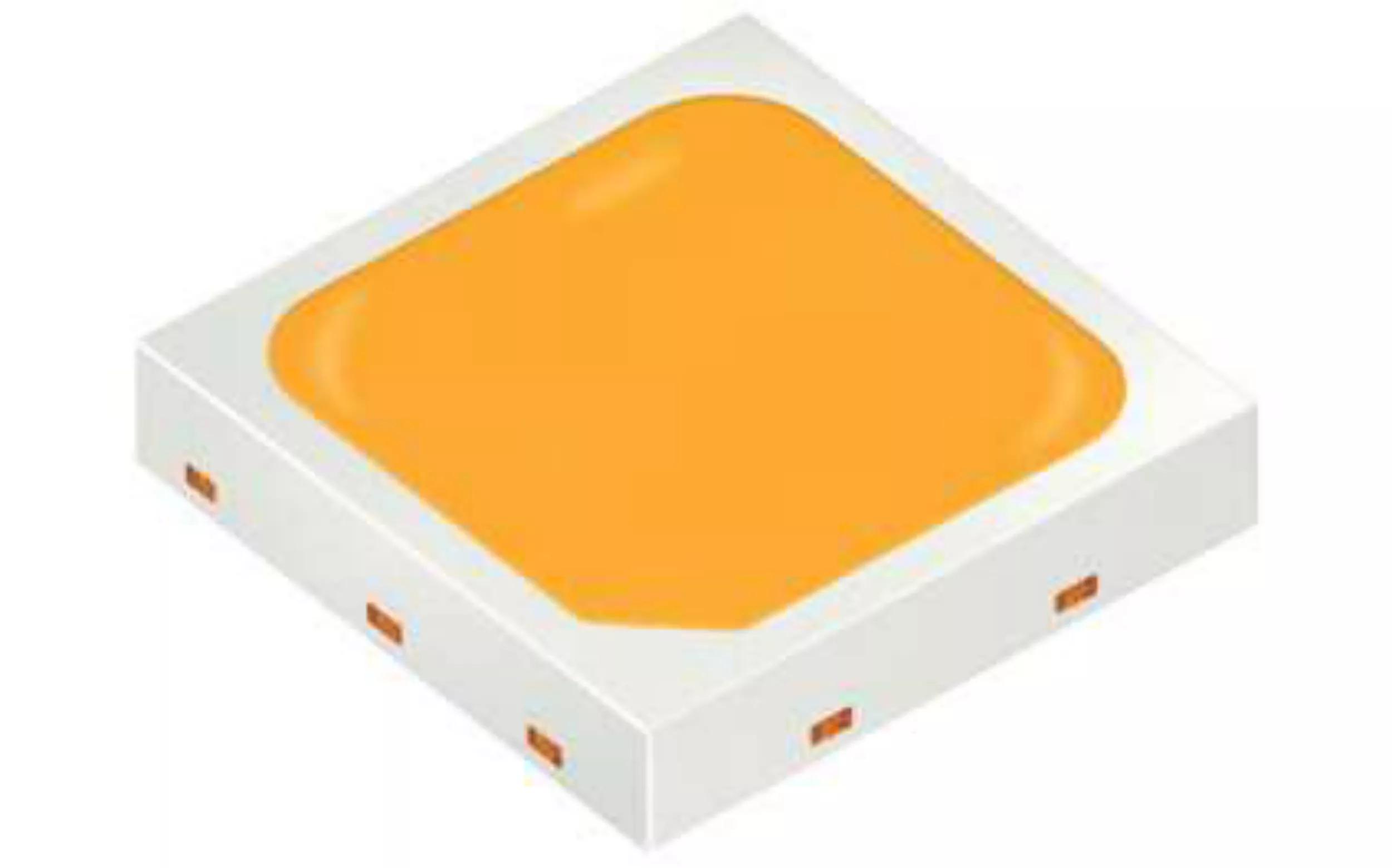

OSRAM DURIS™ S 5, GW PSLR31.EM

Discontinued
×
Discontinued

설명

The compact, mid-power DURIS™ S 5 LED addresses three different luminous flux levels, using just one package and solder pad. With high efficacies, color quality and long lifetimes it is the ideal choice for all indoor General Lighting applications.
데이터시트
GW PSLR31.EM
영어
다운로드
선택 & 주문
문의 지원

세부 정보

조건

Color of emission
White
CRI
80
Electrical power
0.93 W
High
Brightness
ΦV
151 lm
IV
49.9 cd
ΦE
458 mW
IE
152 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.6 mm

주문 정보

제품 유형 설명 주문 코드 재고 여부
GW PSLR31.EM-LQLR-XX57-1 ΦV = 121.0 ... 140.0 lm, 3000 K (IF = 150 mA) Q65112A7934 단종
GW PSLR31.EM-LQLR-XX58-1 ΦV = 121.0 ... 140.0 lm, 2700 K (IF = 150 mA) Q65112A7989 단종
GW PSLR31.EM-LQLS-XX56-1 ΦV = 121.0 ... 150.0 lm, 3500 K (IF = 150 mA) Q65112A8065 단종
GW PSLR31.EM-LRLS-XX51-1 ΦV = 130.0 ... 150.0 lm, 6500 K (IF = 150 mA) Q65112A6754 단종
GW PSLR31.EM-LRLS-XX52-1 ΦV = 130.0 ... 150.0 lm, 5700 K (IF = 150 mA) Q65112A6753 단종
GW PSLR31.EM-LRLS-XX53-1 ΦV = 130.0 ... 150.0 lm, 5000 K (IF = 150 mA) Q65112A6752 단종
GW PSLR31.EM-LRLS-XX55-1 ΦV = 130.0 ... 150.0 lm, 4000 K (IF = 150 mA) Q65112A6751 단종
GW PSLR31.EM-LRLU-XX55-1 ΦV = 130.0 ... 180.0 lm, 4000 K (IF = 150 mA) Q65113A2406 단종
