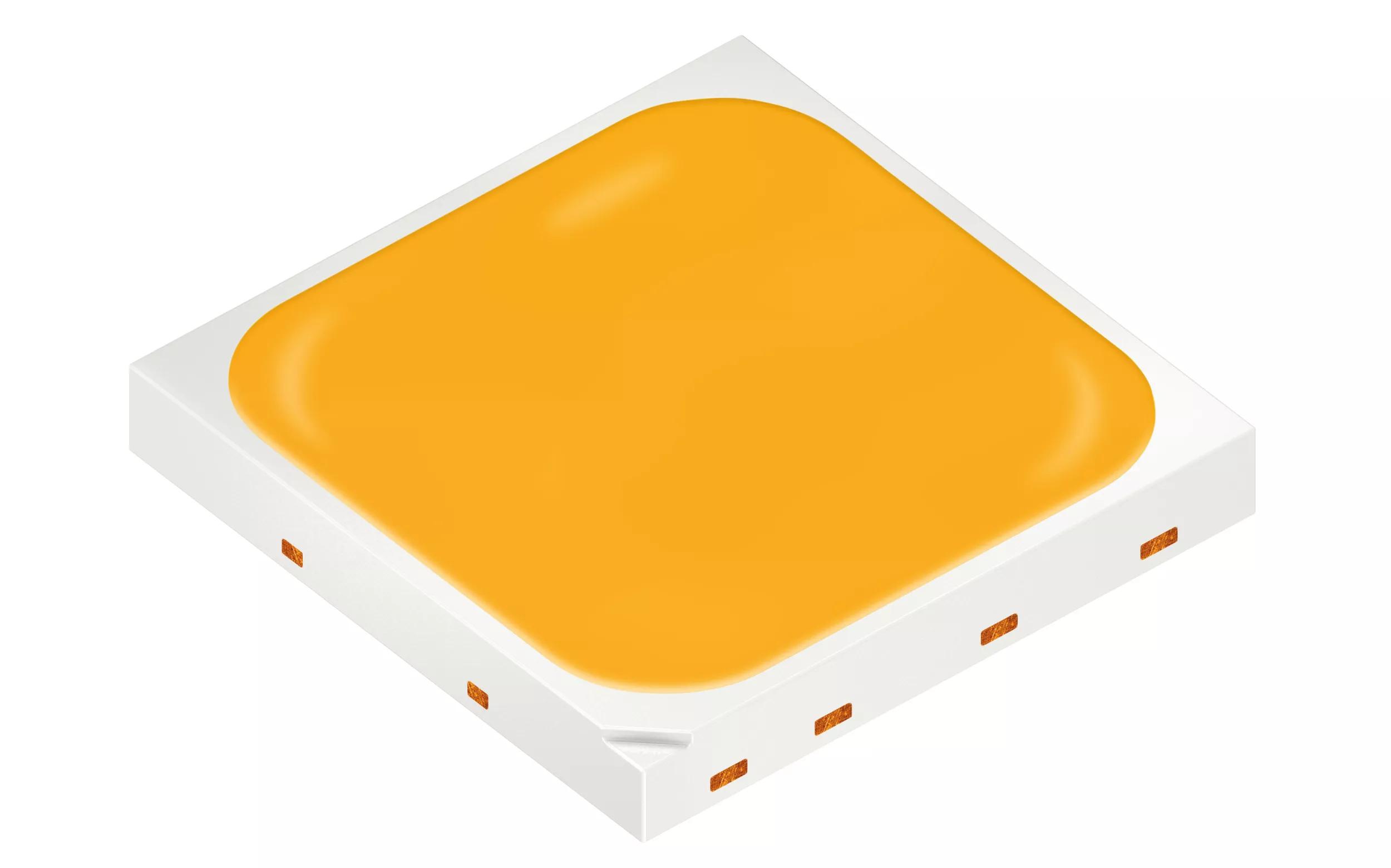

OSRAM DURIS® S 8, GW P9LT31.BM

Discontinued
×
Discontinued

세부 정보

조건

Color of emission
White
CRI
95
Electrical power
4.7 W
High
Brightness
ΦV
547 lm
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
5.0 mm
w
5.0 mm
h
0.7 mm

주문 코드

제품 유형 설명 주문 번호 재고 여부
GW P9LT31.BM-PRPS-XX35-1 ΦV = 520.0 ... 610.0 lm, 4000 K (IF = 150 mA) Q65112A7265
GW P9LT31.BM-PQPR-XX37-1 ΦV = 484.0 ... 563.0 lm, 3000 K (IF = 150 mA) Q65112A7266
GW P9LT31.BM-PQPR-XX38-1 ΦV = 484.0 ... 563.0 lm, 2700 K (IF = 150 mA) Q65112A7267

다운로드

데이터시트

Datasheet

애플리케이션 노트

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
