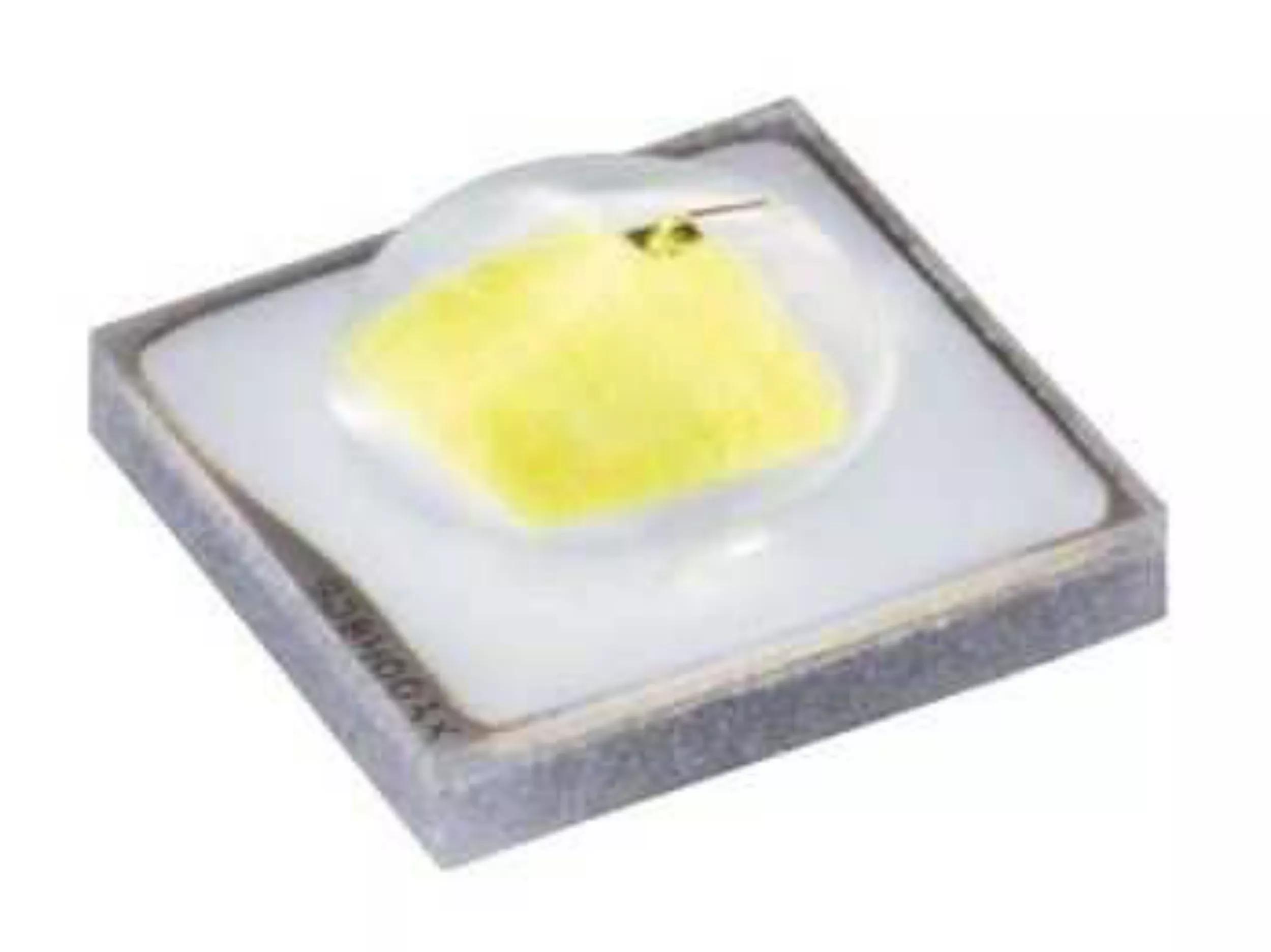

OSRAM OSLON® SSL 80, LUW CR7P

OSRAM OSLON® SSL 80, LUW CR7P
Discontinued
OSRAM OSLON® SSL 80, LUW CR7P
×
Discontinued

설명

Highest flux. Highest efficacy. This OSLON SSL family next generation LED offers a prefocused radiation pattern making it the ideal choice for spot lighting applications. Its low thermal resistance allows this device to be highly efficient even at high driving currents. Applications demanding long lifetimes are perfectly addressed with this highly reliable LED.

세부 정보

조건

Color of emission
White
Electrical power
1.0 W
High
Beam angle
80 °
Operating temperature
Top min.
-40 °C
Top max.
120 °C
Dimension
l
3.1 mm
w
3.1 mm
h
2.3 mm

주문 코드

제품 유형 설명 주문 번호 재고 여부
LUW CR7P-LTMP-MCML-1 ΦV = 150 ... 194 lm (IF = 350 mA) Q65111A4273
LUW CR7P-LTMP-MMMW-1 ΦV = 150 ... 194 lm (IF = 350 mA) Q65111A4272
LUW CR7P-LSLU-MMMW-1 ΦV = 140 ... 180 lm (IF = 350 mA) Q65111A3446
LUW CR7P-LRLT-GPGR-1 ΦV = 130 ... 164 lm, 7500 K (IF = 350 mA) Q65111A4826
LUW CR7P-LRLT-HPJR-1 ΦV = 130 ... 164 lm, 6000 K (IF = 350 mA) Q65111A2506
LUW CR7P-LRLT-HPHR-1 ΦV = 130 ... 164 lm, 6500 K (IF = 350 mA) Q65111A4269
LUW CR7P-LRLT-JPJR-1 ΦV = 130 ... 164 lm, 5500 K (IF = 350 mA) Q65111A2912
LUW CR7P-LSLU-HPHR-1 ΦV = 140 ... 180 lm, 6500 K (IF = 350 mA) Q65111A3825
LUW CR7P-LSLU-JPJR-1 ΦV = 140 ... 180 lm, 5700 K (IF = 350 mA) Q65111A4275
