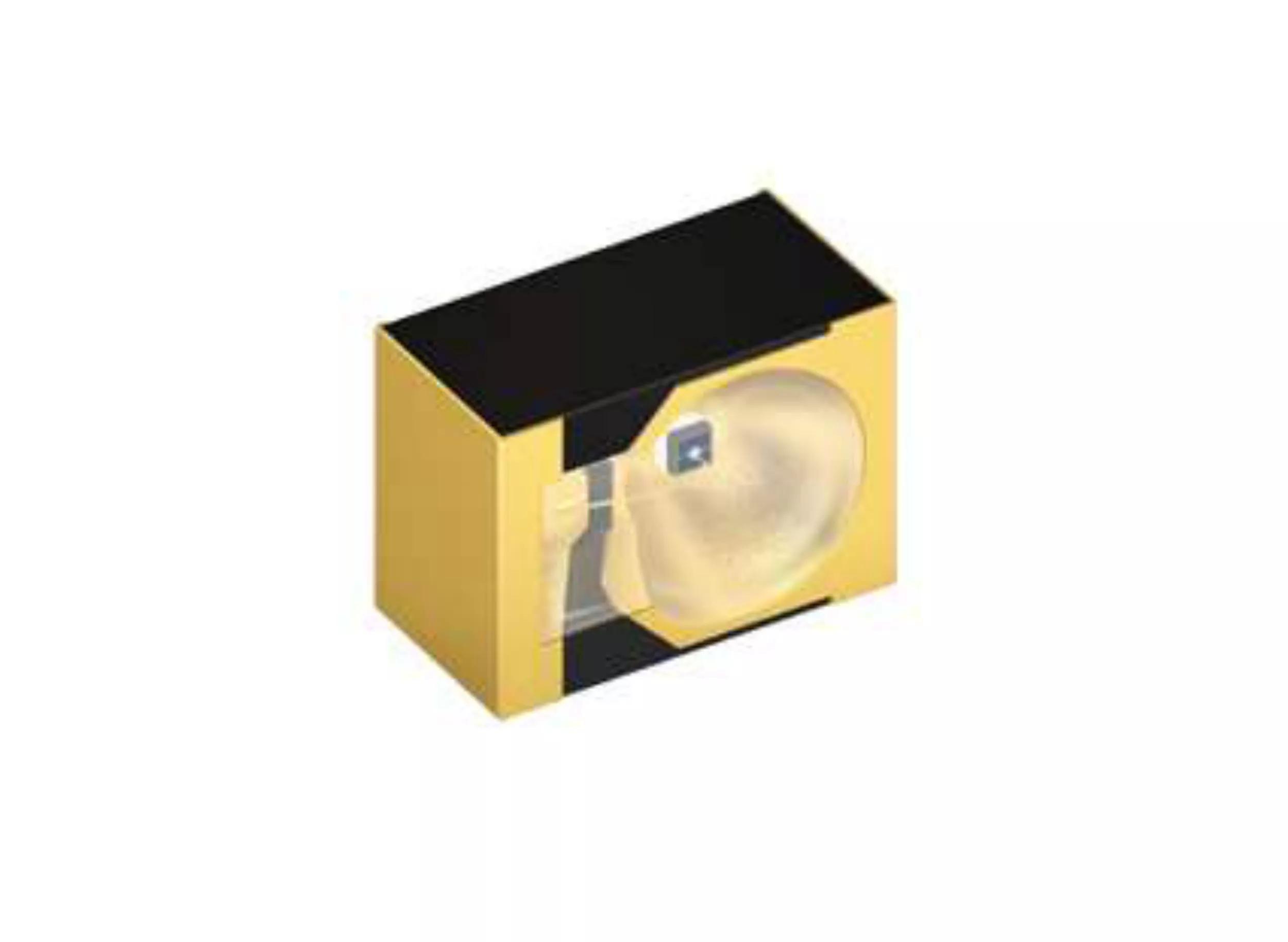

OSRAM MIDLED®, SFH 4646

×

Beschreibung

Narrow beam LED in MIDLED package (940 nm)

Details

Parameter

Color of emission
Infrared (>800 nm)
Current
IF
70 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
35 mW
IE
55 mW/sr
Beam angle
20 °
Dimension
l
3.1 mm
w
2.25 mm
h
1.6 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Bestellnummern

Produkt-Typ Beschreibung Bestellnummer Verfügbarkeit
SFH 4646-Z Ie = 28 ... 180 mW/sr, (Ie=55 mW/sr typ.) (IF = 70 mA) Q65110A8099
SFH 4646-TV Ie = 28 ... 112 mW/sr, (Ie=55 mW/sr typ.) (IF = 70 mA) Q65111A6148
