Beschreibung

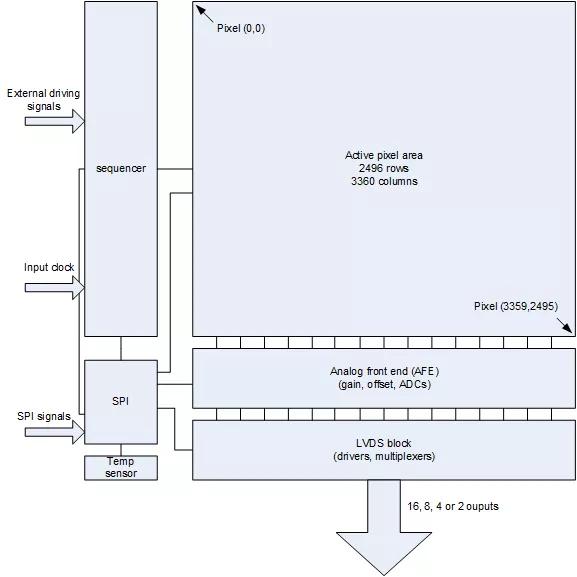

The CMV8000 is a global shutter CMOS image sensor with 3360 by 2496 pixels in a 4/3“ optical format. The image array consists of 5.5 µm by 5.5 µm pipelined global shutter pixels, which allow exposure during read out while performing CDS operation reducing fixed pattern and dark noise significantly. The CMV8000 has 16 digital LVDS outputs (serial) each running at 600 Mbps, which results in 104 fps frame rate at full resolution in 10-bit mode. Higher frame rates can be achieved in row-windowing mode or row-subsampling mode. A 12-bit per pixel mode is available at reduced frame rates.

For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf
Datenblatt
CMV8000 DS000609
Englisch
Herunterladen
Benutzerhandbuch
Kontakt Support

Details

Eigenschaften

  • Global shutter
  • High speed 103fps
  • Selectable ADC Resolution:

Vorteile

  • Freeze moving objects
  • Track moving objects accurately and high inspection rate
  • Choose between maximum frame rate (10bit) or better image quality (12bit)

Parameter

Resolution
8 MP
Shutter type
Global
Frame rate
max.
103 fps
Optical format
1"
Dynamic range
61 dB
Pixel pitch
5.5 µm
5.5 µm
Function
area scan
CRA
No
Package
PGA
Package dimension
h
2.9 mm
l
26.5 mm
w
30.5 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
ADC mode
10 bit
12 bit
Channels
output
16
Interface
output
Low-voltage differential signaling
Output interface speed
600 Mbps

Downloads

Datenblätter

CMV8000 DS000609

Datasheet
EN
DE
CN
JP

Benutzeranleitungen

Anwendungshinweise

Technische Dokumente

Lebenszyklus-Dokumente

Bilder

Software

Ähnliche Produkte

ams CMV12000

ams CMV12000

The CMV12000 is a high sensitivity pipelined global shutter CMOS image sensor with a resolution of 4096 x 3072 pixels (ultra HD 4:3 format). Pipelining means that exposure during read out is possible. The state-of-the-art pixel design makes true correlated double sampling (CDS) possible which reduces the fixed pattern noise and dark noise significantly. The imager integrates 64 LVDS channels each running at 300 Mbps resulting in a 300 fps frame rate at full resolution with 10 bits per pixel data output. Driving and read-out programming can be set over a serial peripheral interface. An internal timing generator produces the signals needed for read-out and exposure of the image sensor while external exposure triggering remains possible. For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf
