ams CMV8000

ams CMV8000
Discontinued
×
Discontinued

Description

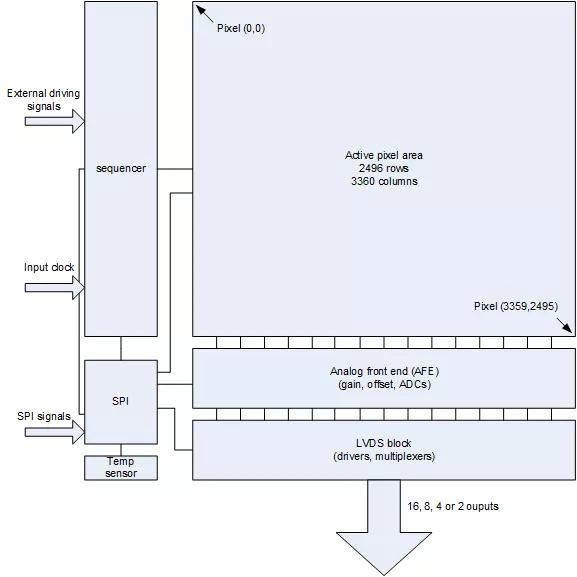

The CMV8000 is a global shutter CMOS image sensor with 3360 by 2496 pixels in a 4/3“ optical format. The image array consists of 5.5 µm by 5.5 µm pipelined global shutter pixels, which allow exposure during read out while performing CDS operation reducing fixed pattern and dark noise significantly. The CMV8000 has 16 digital LVDS outputs (serial) each running at 600 Mbps, which results in 104 fps frame rate at full resolution in 10-bit mode. Higher frame rates can be achieved in row-windowing mode or row-subsampling mode. A 12-bit per pixel mode is available at reduced frame rates.

For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf
Datasheet
CMV8000 DS000609
English
Download
User guide
Contact us Support

Details

Features

  • Global shutter
  • High speed 103fps
  • Selectable ADC Resolution:

Benefits

  • Freeze moving objects
  • Track moving objects accurately and high inspection rate
  • Choose between maximum frame rate (10bit) or better image quality (12bit)

Parameters

Resolution
8 MP
Shutter type
Global
Frame rate
max.
103 fps
Optical format
1"
Dynamic range
61 dB
Pixel pitch
5.5 µm
5.5 µm
Function
area scan
CRA
No
Package
PGA
Package dimension
h
2.9 mm
l
26.5 mm
w
30.5 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
ADC mode
10 bit
12 bit
Channels
output
16
Interface
output
Low-voltage differential signaling
Output interface speed
600 Mbps

Downloads

Datasheets

CMV8000 DS000609

Datasheet
EN
DE
CN
JP

User guides

Application note

Technical documents

Lifecycle documents

Images

Software
