세부 정보
조건
Color of emission
Deep Blue (439-461 nm)
Electrical power
0.94
W
High
Brightness
ΦV
14.5
lm
IV
4.45
cd
ΦE
540
mW
IE
166
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
3.0
mm
w
3.0
mm
h
0.6
mm
다운로드
기타 문서는
다운로드 센터에서 검색하세요
데이터시트
GD PSLR31.13
Datasheet
애플리케이션 노트
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications
Product related
Light quality — White light parameters
Product related
Light quality — Color metrics
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Preventing LED failures caused by corrosive materials
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
Manual lead-free soldering of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Dimming InGaN LEDs
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Determination of resistances for brightness compensation
Electrical design
LED driving technology for long term flexibility
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
자원
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
이미지

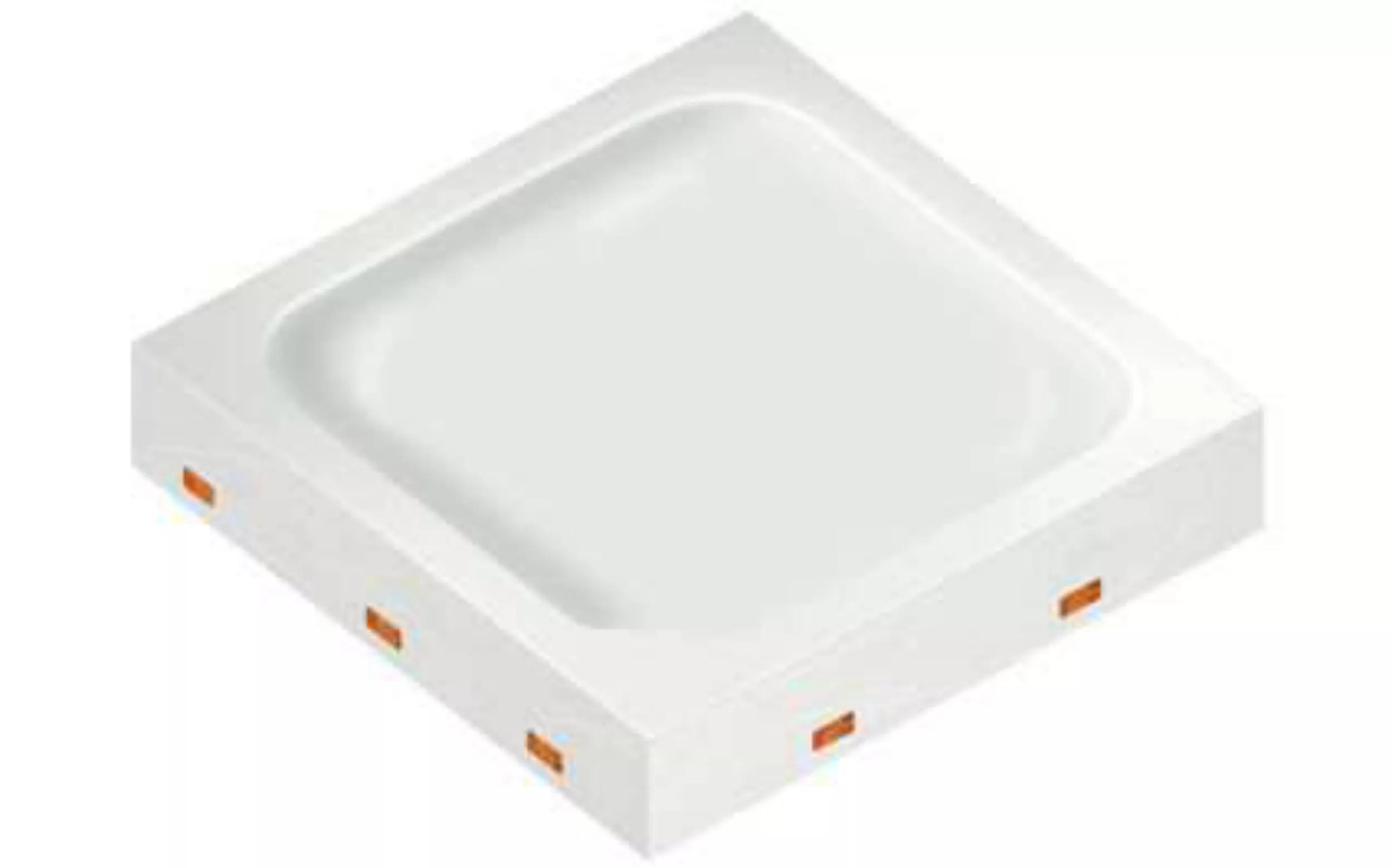

DURIS S5 - GEN 2 - GB_PSLR31_Productpicture
