세부 정보
조건
Color of emission
Blue (450-480 nm)
Electrical power
1.1
W
High
Brightness
ΦV
24
lm
IV
7.98
cd
ΦE
705
mW
IE
234
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
11.0
mm
w
6.0
mm
h
1.8
mm
적용 분야
주문 코드
제품 유형 | 설명 | 주문 번호 | 재고 여부 |
---|---|---|---|
LB W5SM-FZHX-35 | ΦV = 15 ... 33 lm (IF = 350 mA) | Q65110A9221 |
상태 정보
완전 가동 생산
생산 전
새로운 설계 계획 없음
주문 및 배송 가능
단종
|
다운로드
For software click here/for further documents visit our
다운로드 센터에서 검색하세요
데이터시트
LB W5SM
Datasheet
애플리케이션 노트
Preventing LED failures caused by corrosive materials
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Behaviour of InGaN LEDs in parallel circuits
Electrical design
Dimming InGaN LEDs
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
자원
Electrical Simulation
Electrical Simulation
이미지

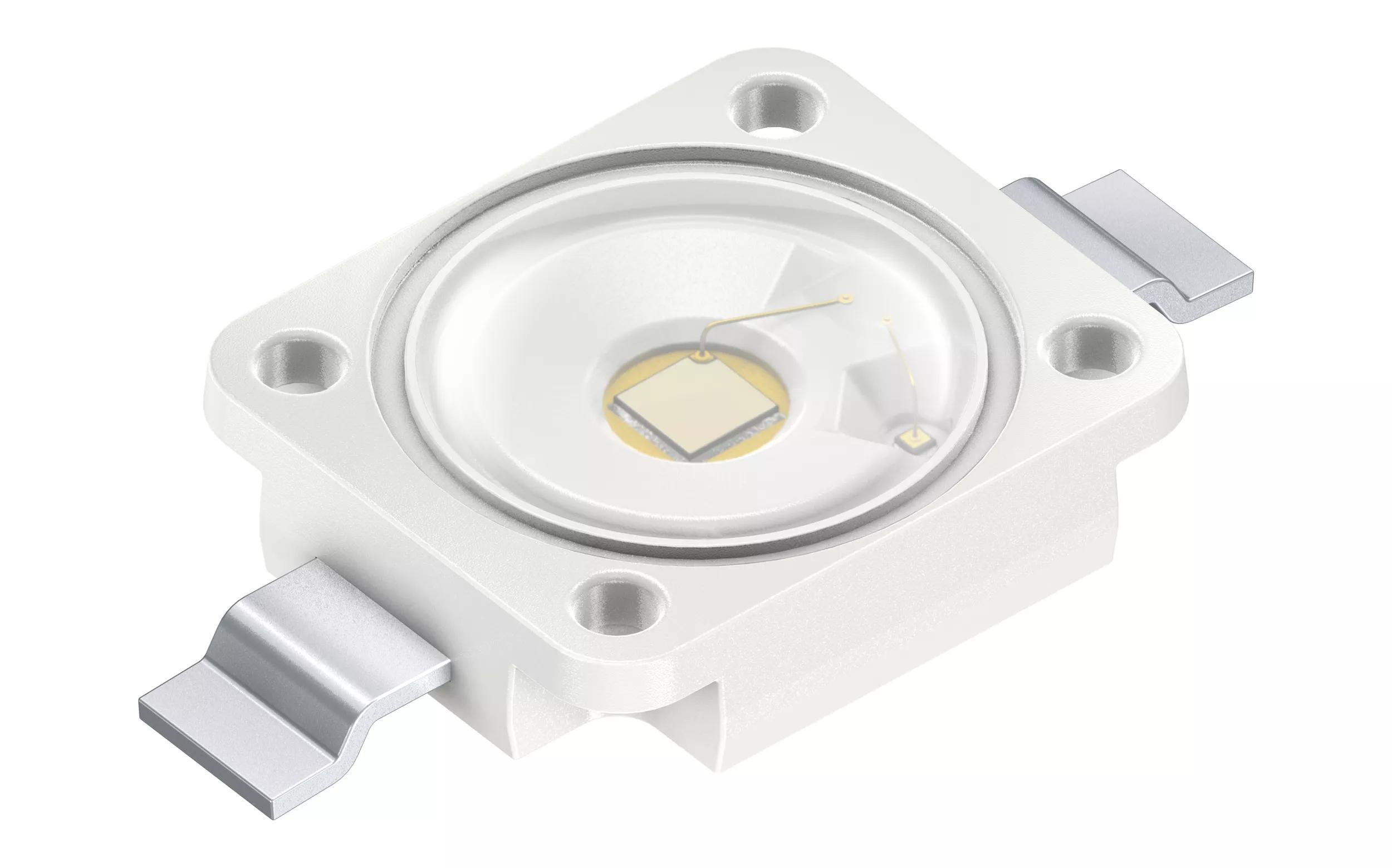

Golden Dragon - InGaN_Productpicture
