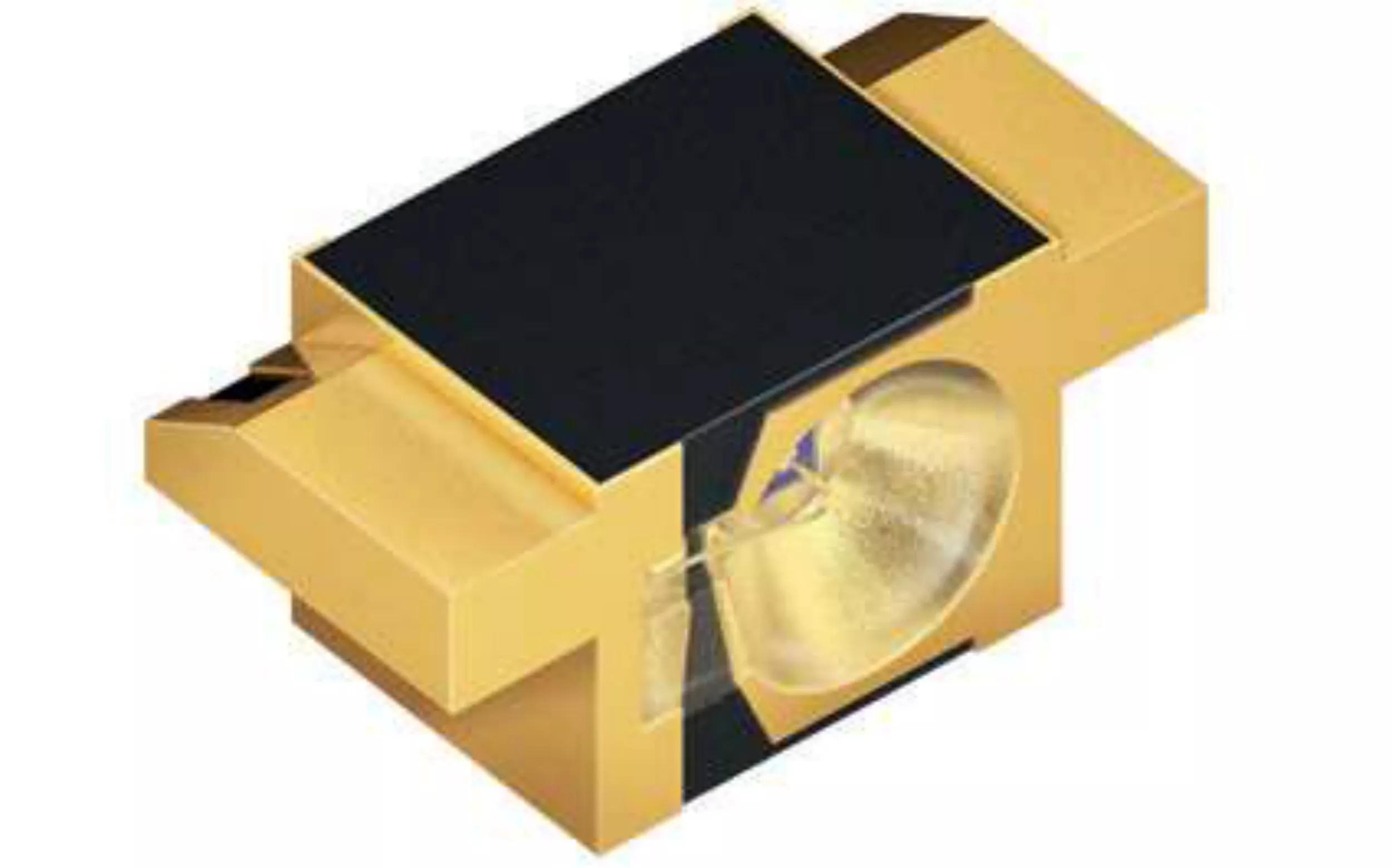

OSRAM MIDLED™ T- MIDLED, SFH 4140

Abgekündigt
×
Abgekündigt

Beschreibung

High Power Infrared Emitter (940 nm)
Datenblatt
SFH 4140
Englisch
Herunterladen
Chinesisch
Herunterladen
Auswählen & bestellen
Kontakt Support

Details

Parameter

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
55 mW
IE
50 mW/sr
Beam angle
∢
50 °
Dimension
l
3.1 mm
w
1.5 mm
h
1.5 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Bestellinformation

Produkt-Typ Beschreibung Bestellnummer Verfügbarkeit
SFH 4140 Ie = 18 ... 71 mW/sr, (Ie=50 mW/sr typ.) (IF = 100 mA) Q65111A4190 Ausgelaufen

Downloads

Datenblätter
SFH 4140 · Datasheet · PDF · en_US

Anwendungshinweise
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US

Ressourcen
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Bilder
MIDLED T- MIDLED SFH 4140 · Images · TIF
