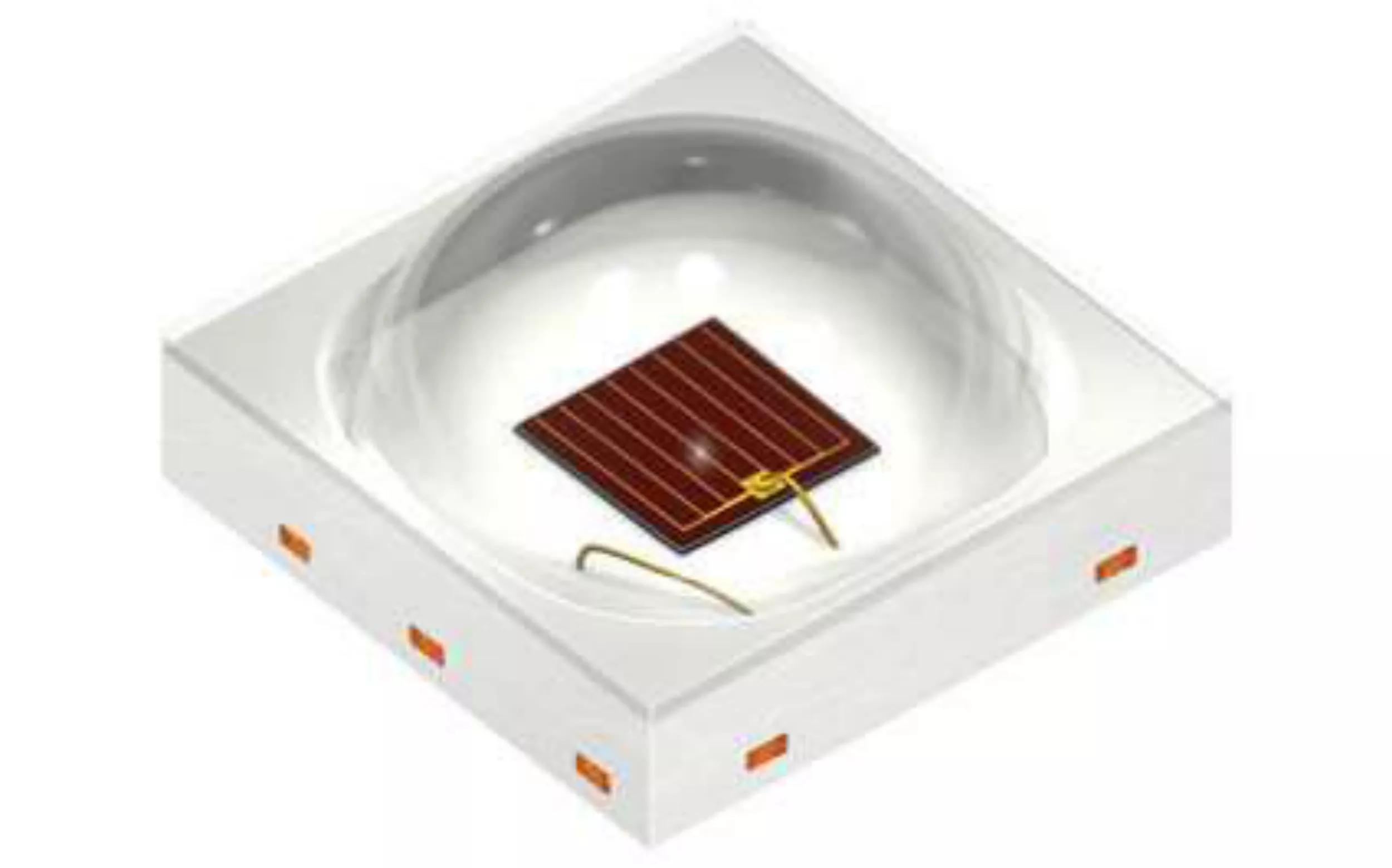

OSRAM OSCONIQ™ P 3030, GF QSSPA1.24

중단됨
×
중단됨

설명

The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.
데이터시트
GF QSSPA1.24
영어
다운로드
선택 & 주문
문의 지원

세부 정보

조건

Color of emission
Far Red (720-740 nm)
Electrical power
0.65 W
Mid
Brightness
ΦV
0.403 lm
IV
0.127 cd
ΦE
340 mW
IE
107 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
115 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

주문 정보

제품 유형 설명 주문 코드 재고 여부
GF QSSPA1.24-1T3T-1-1 ΦE = 280 ... 400 mW (IF = 350 mA) Q65113A0105 단종

다운로드

데이터시트
GF QSSPA1.24 · Datasheet · PDF · en_US

애플리케이션 노트
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
High power OSCONIQ™ P — Details on properties, handling and processing · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
欧司朗光电半导体有限公司 LED 的测量、 · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
LED 无铅回流焊的详细介绍 · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
