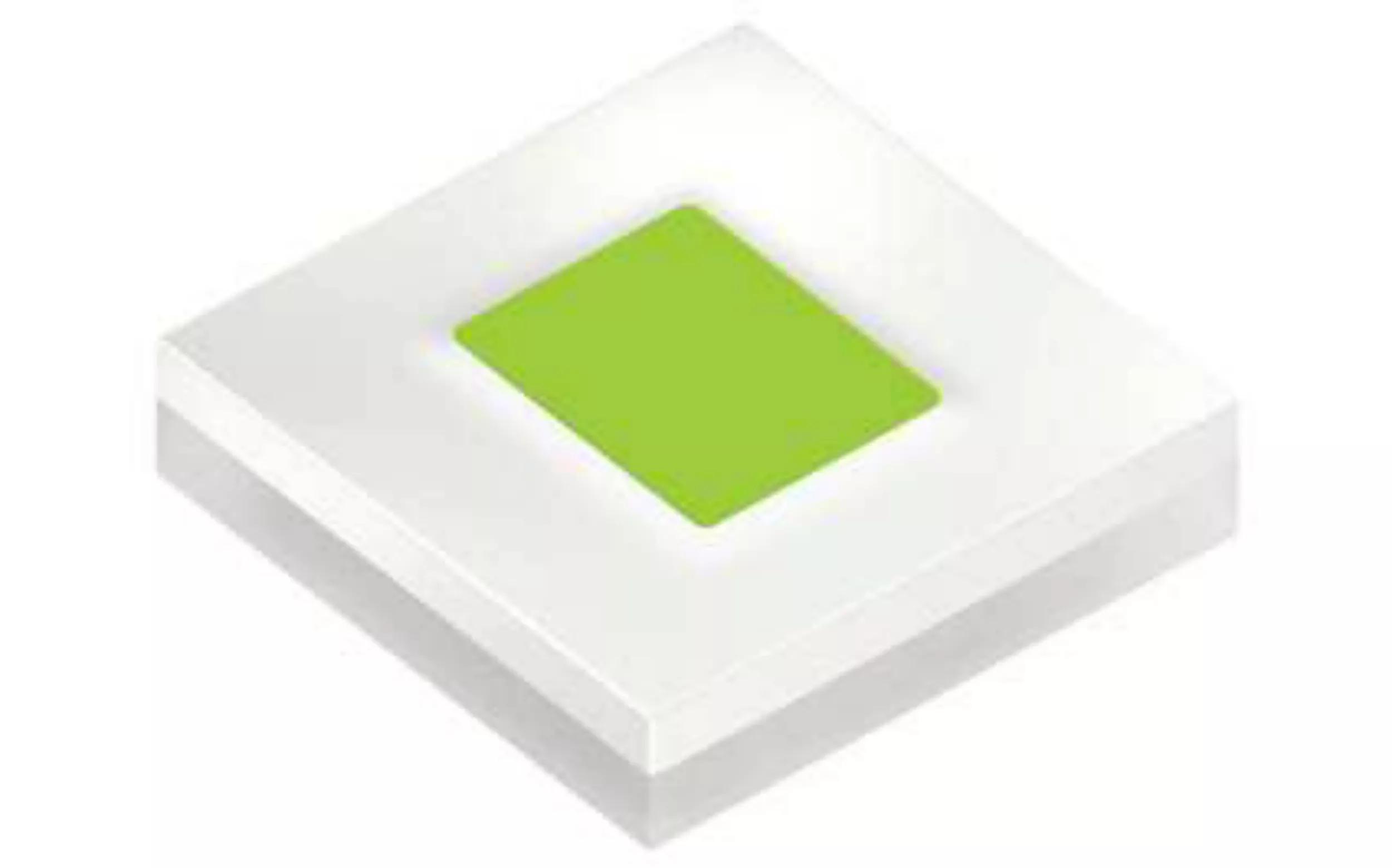

OSRAM OSRAM OSTAR® Projection Compact, KP CSLPM1.F1

설명

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.

세부 정보

조건

Color of emission
Pure Green (554-566 nm)
Electrical power
4.2 W
High
Brightness
ΦV
680 lm
IV
228 cd
ΦE
1490 mW
IE
500 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

주문 코드

제품 유형 설명 주문 번호 재고 여부
ΦV = N/A (N/A)
KP CSLPM1.F1-7P5Q-A ΦV = 560 ... 800 lm (IF = 1400 mA) Q65111A9762
