OSRAM OSRAM OSTAR™ Projection Compact, KP CSLPM1.F1

Ordering and shipping still possible
×
Ordering and shipping still possible

Description

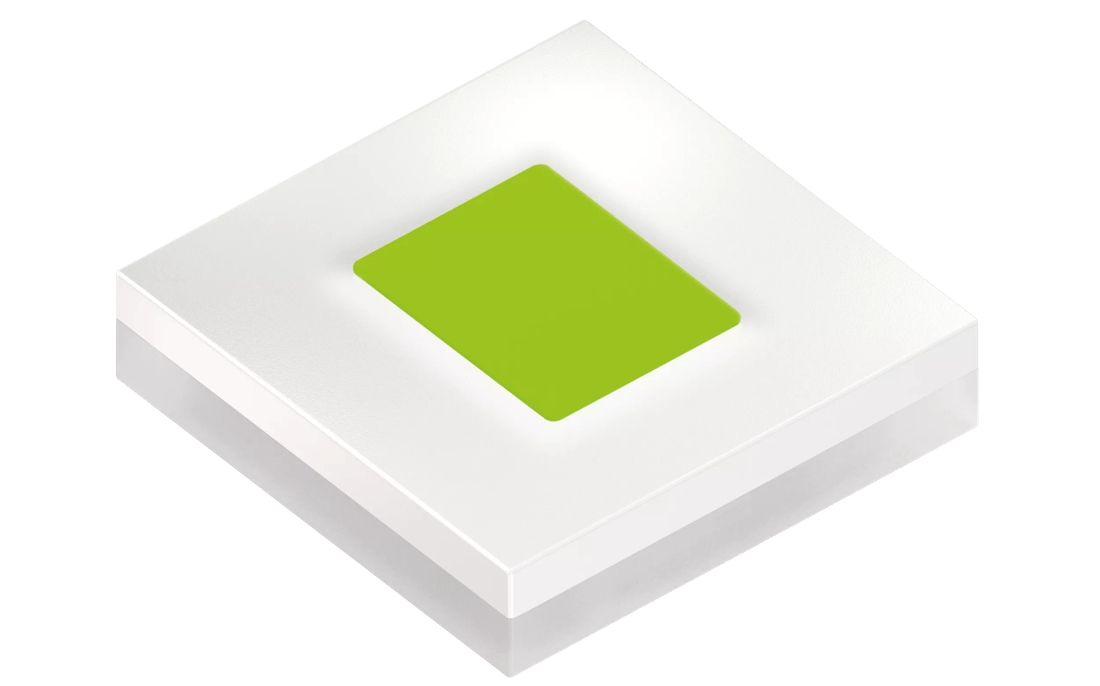

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.
Datasheet
KP CSLPM1.F1
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Pure Green (554-566 nm)
Electrical power
4.2 W
High
Brightness
ΦV
680 lm
IV
228 cd
ΦE
1490 mW
IE
500 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

Ordering information

Product Type Description Ordering code Availability
ΦV = N/A (N/A)
KP CSLPM1.F1-7P5Q-A ΦV = 560 ... 800 lm (IF = 1400 mA) Q65111A9762 Ordering and shipping are still possible
