OSRAM SYNIOS™ P2720, SFH 4776

Abgekündigt
×
Abgekündigt

Beschreibung

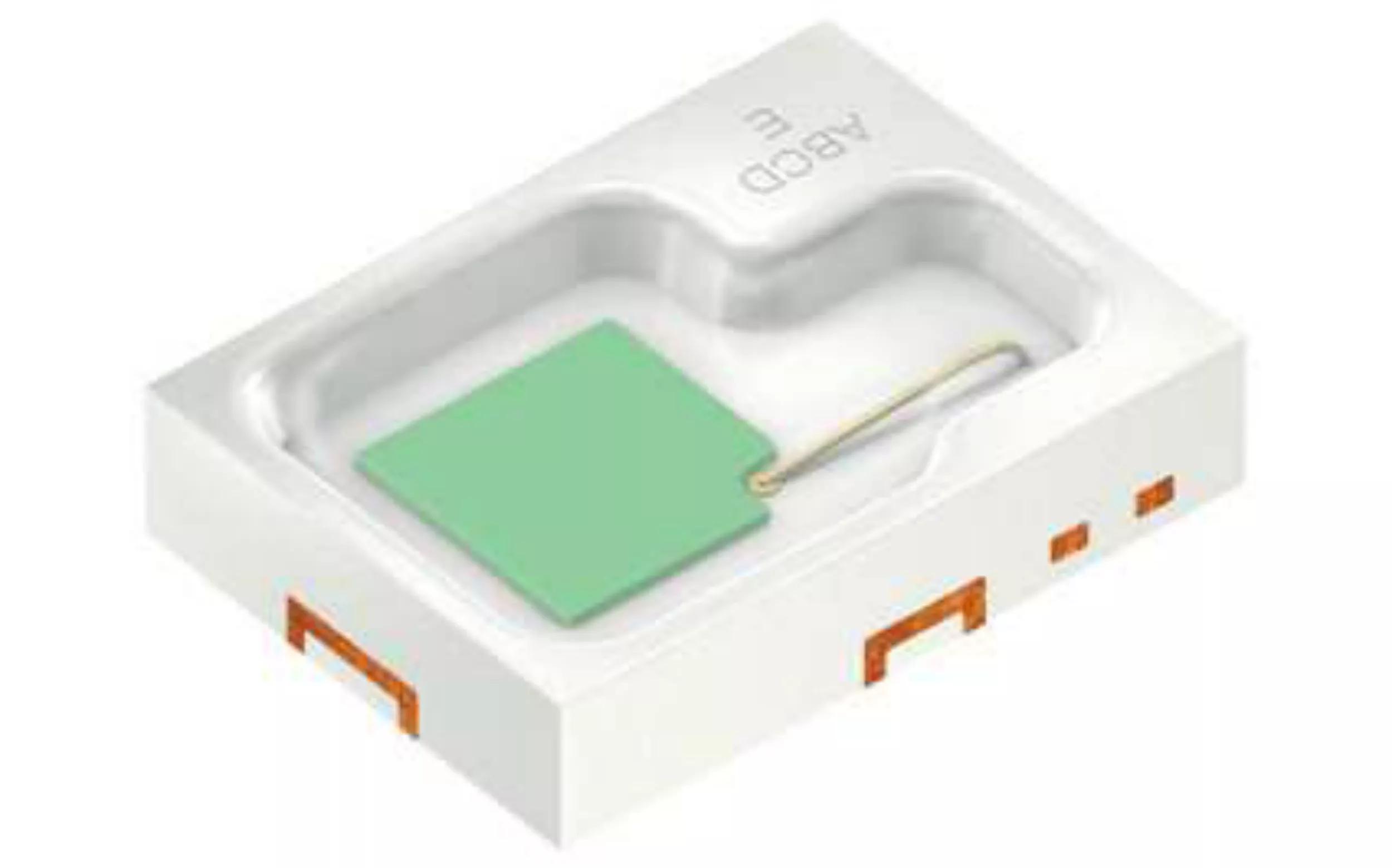

IR Broadband Emitter - 120°
Datenblatt
SFH 4776
Englisch
Herunterladen
Chinesisch
Herunterladen
Auswählen & bestellen
Kontakt Support

Details

Parameter

Color of emission
IR Broadband
Current
IF
350 mA
Brightness
ΦE
24 mW
IE
29 mW/sr
Beam angle
∢
120 °
Dimension
l
3.85 mm
w
3.85 mm
h
2.29 mm
Operating temperature
Top min.
-40 °C
Top max.
85 °C

Bestellinformation

Produkt-Typ Beschreibung Bestellnummer Verfügbarkeit
SFH 4776 Φe = 24 mW, (typ.) (IF = 350 mA, λ = 600nm - 1050nm ) Q65112A4886 Ausgelaufen

Downloads

Datenblätter
SFH 4776 · Datasheet · PDF · en_US

Anwendungshinweise
SYNIOS™ P2720 — 基本信息 · Product related · PDF · en_US
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US
