Details
Parameters
Color of emission
IR Broadband
Current
IF
350
mA
Brightness
ΦE
74
mW
IE
27
mW/sr
Beam angle
∢
130
°
Dimension
l
1.6
mm
w
1.6
mm
h
0.9
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Medical & health
Medical Lighting
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 4737 | Φe = 74 mW, (typ.) (IF = 350 mA, λ = 600nm - 1050nm ) | Q65113A0772 |
Downloads
For other documents visit our
Download center
Application note
Infrared (IR) spectroscopy with the SFH4737 - background & technology
Product related
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs — Background and data sheet definition
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Handling of silicon resin LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

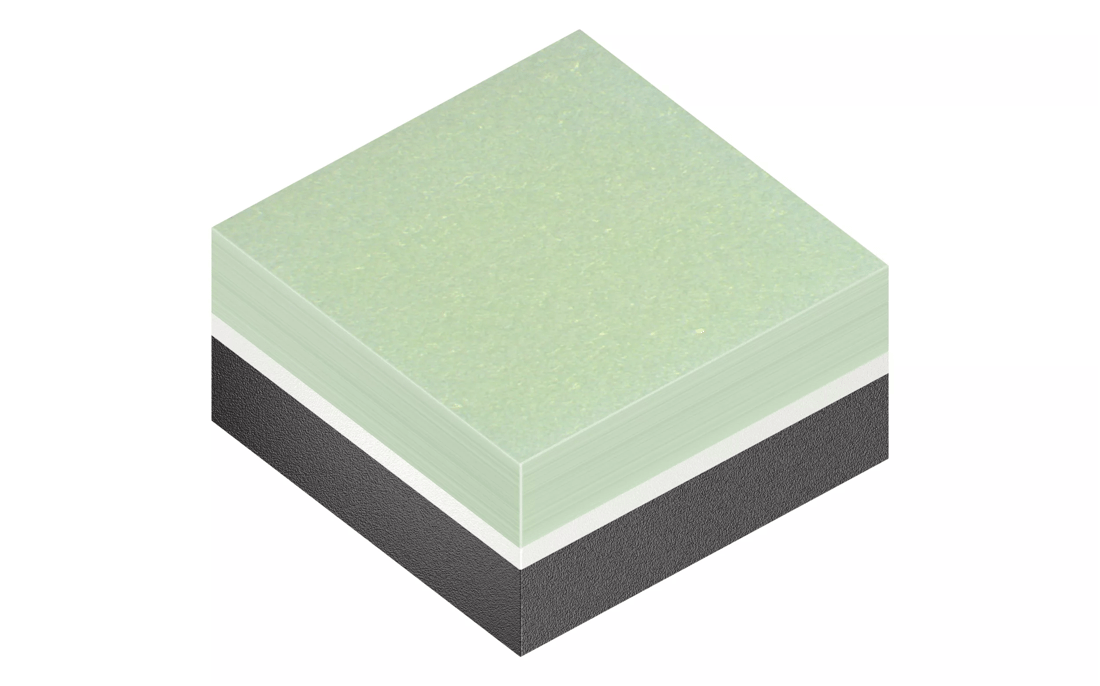

SFH_4737_36x22.4mm_cmyk
Product selector
Find the right product.
More OSLON® P1616
OSLON® P1616 – Small form factor and high intensity.
