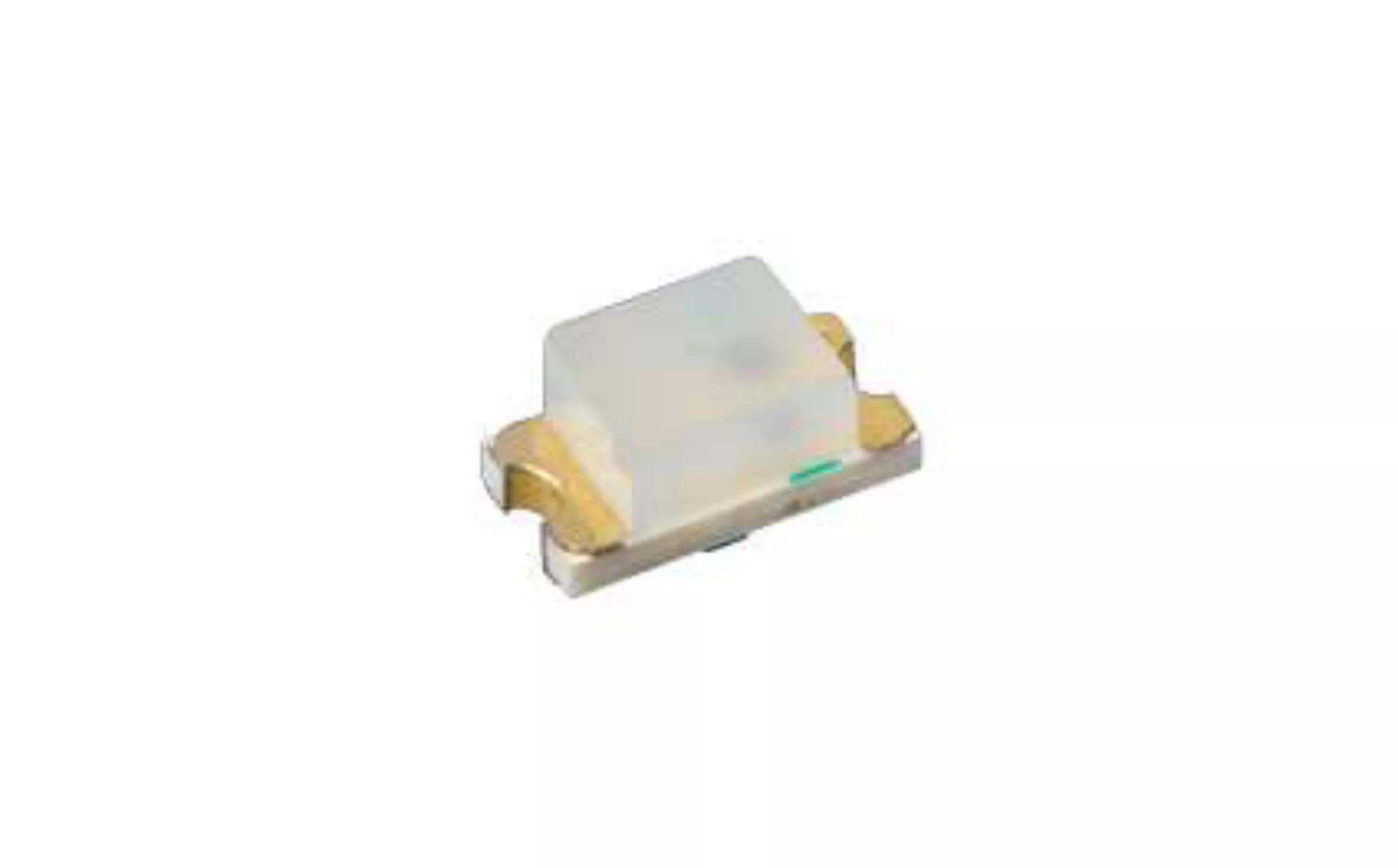

OSRAM Chip LED 0603, LS Q976.01
The Chip LED 0603 is the product of choice for low power status indication in electronics. The small package size allows compact designs, like 7-segment displays, symbol backlighting or button and switch illumination in control panels. The high brightness of the LED ensures good visibility at any time.
OSRAM SMARTLED® 0603, KS EELP41.22
The SMARTLED® 0603 is the product of choice for status indication and symbol backlighting in electronics.
The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices from this series suitable for professional industrial equipment and applications.
세부 정보
조건
Color of emission
Super Red (627-639 nm)
Electrical power
0.04
W
Low
Brightness
ΦV
0.265
lm
IV
0.058
cd
ΦE
2.2
mW
IE
0.482
mW/sr
Beam angle
∢
160
°
Operating temperature
Top
min.
-30
°C
Top
max.
85
°C
Dimension
l
1.6
mm
w
0.8
mm
h
0.8
mm
주문 코드
| 제품 유형 | 설명 | 주문 번호 | 재고 여부 |
|---|---|---|---|
| LS Q976-NR-1 | Iv = 28 ... 180 mcd (IF = 20 mA) | Q62702P5187 |
