ams CSG14K - 1” Global Shutter Image Sensor

ams CSG14K - 1” Global Shutter Image Sensor
×

설명

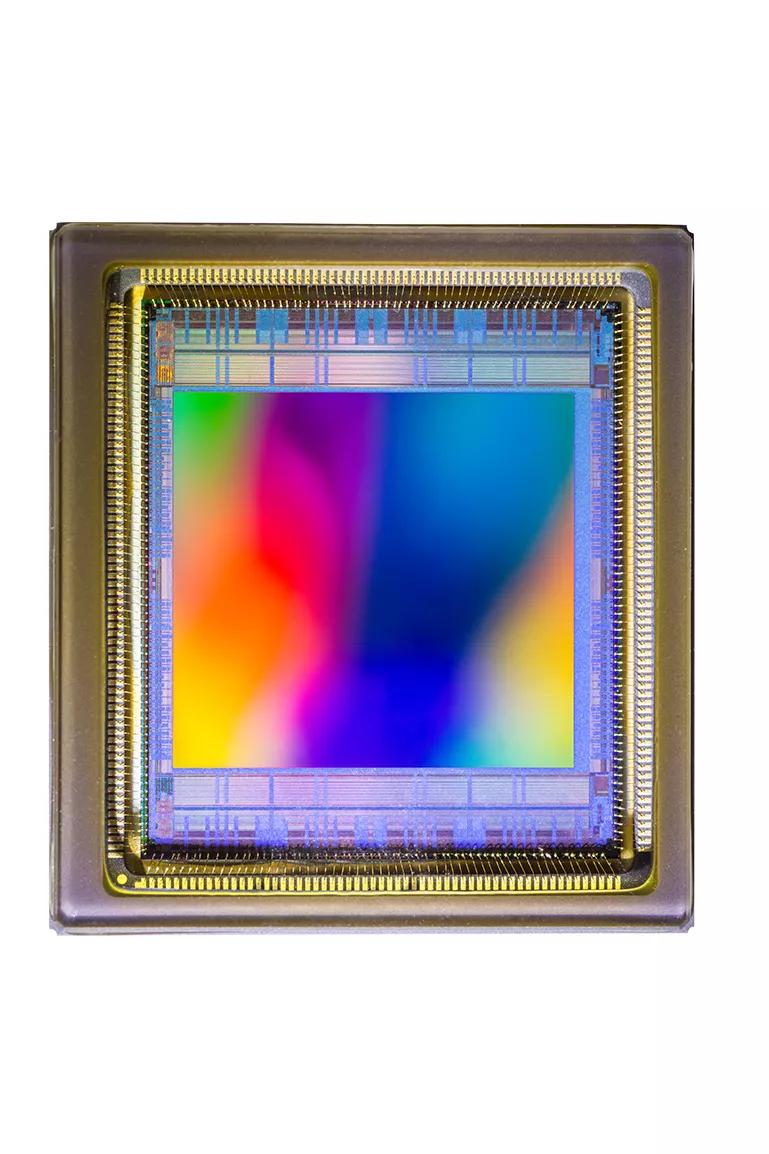

With the CSG14K, ams offers a 14Mp global shutter area scan sensor, featuring 3.2μm charge domain pixels for the most demanding machine vision applications in 1” optical size.

The CSG family features fast 12-bit column based ADCs to achieve industry-leading high frame rates at full resolution enabling faster inspection and higher data throughputs. Data throughput can be reduced by subsampling or binning enabling even higher frame rates. Optical black pixels are used for automatic black level calibration and row noise correction. Computation in the ISP pipeline can be streamlined by the histogram and image statistics that are calculated on-chip. Binning of pixels is possible to improve FWC, DR and SNR. HDR modes operate with dual exposure. Exposure and read-out can be externally triggered.

The CSG family comes in a 218-pin LGA package with 22mm x 20mm x 3.3mm for ultra-compact
(C-Mount) designs. Typical applications include 4K video, factory automation, intelligent
transportation systems (ITS) and general machine vison.
데이터시트
CSG14K_CSG8K 13.8 Mp_8.3 Mp High Speed Global Shutter CMOS Image Sensor
영어
다운로드
선택 & 주문
문의 지원

세부 정보

조건

Resolution
14 MP
Shutter type
Global
Frame rate
max.
140 fps
Optical format
1"
Dynamic range
69.1 dB
Pixel pitch
3.2 µm
3.2 µm
Function
area scan
Integration time
min.
36.7 µs
CRA
No
Package
LGA
Package dimension
h
2.75 mm
l
22 mm
w
20 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
ADC mode
10 bit
12 bit
Channels
output
16
Interface
output
Low-voltage differential signaling
Output interface speed
1250 Mbps
Number of lines
3600

주문 코드

다운로드

데이터시트

CSG14K_CSG8K 13.8 Mp_8.3 Mp High Speed Global Shutter CMOS Image Sensor

Datasheet
영어
독일어
중국어
일본어

기술 문서

환경 문서

이미지

소프트웨어

관련 보드, 키트 & 액세서리

ams CSG14K_EVM_MO_COLOR Evaluation kit

The CSG14K eval kit enables testing the functionality of the CSG14K. Moreover, this package includes design files and FPGA code to support new camera designs.  The CSG14K eval kit is also representative for the CSG8K. The included image sensor can be replaced by other CSG8K or CSG14K parts.- USB3 vision compliant- HDMI output (4K @ 30fps)- Record full resolution at full speed- GUI for control and recording- ZIF socket for easy sensor replacement
세부정보 및 데이터시트

ams CSG14K_EVM_MO_MONO Evaluation kit

The CSG14K eval kit enables testing the functionality of the CSG14K. Moreover, this package includes design files and FPGA code to support new camera designs.  The CSG14K eval kit is also representative for the CSG8K. The included image sensor can be replaced by other CSG8K or CSG14K parts.- USB3 vision compliant- HDMI output (4K @ 30fps)- Record full resolution at full speed- GUI for control and recording- ZIF socket for easy sensor replacement
세부정보 및 데이터시트

ams CMV-CSG_EVM Evaluation kit

The CMV/CSG eval kit can be used for testing and verifying the operation and image quality of the CMV2000, CMV4000, CMV12000 and CSG8K/14K image sensors. The package includes following components: CMV or CSG image sensor, based camera with USB 3.0 interface with tripod, power cable and adapter, F-mount lens holder and lens and USB cable. The reference documentation can be downloaded from our webpage. The system allows the user to evaluate all aspects of the CMV or CSG image sensors with full access to the sensor registers. Single or multiple image grabbing and saving is possible in multiple formats. Download viewer here: https://support.criticallink.com/files/GenTLViewer/GenTLViewer_latest_setup.exe
