ams TCS3538_EVM_EB Evaluation board

×

Description

The TCS3538 Evaluation Kit comes with everything needed to evaluate the TCS3538 true color ambient light spectral sensor module. The evaluation kit comprises of a main controller board with an EVM microcontroller, an industry standard USB 2.0 interface (with an USB cable), a TCS3538 module daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the ambient light sensor settings as the PIC takes the TCS3538 I²C digital outputs to calculate ambient light sensing, spectral reconstruction and flicker detection.
Contact us Support

Downloads

Application note
TCS3530_38 Optical Design Guide · Product related · PDF · en_US
TCS3538 EVM Quick Start Guide · Product related · PDF · en_US
TCS3538 EVM User Guide · Product related · PDF · en_US

Technical documents
TCS3538_EVM_DA_DAUGHTERBOARD_AD001034_1-00 · Application Data · ZIP · en_US

Images

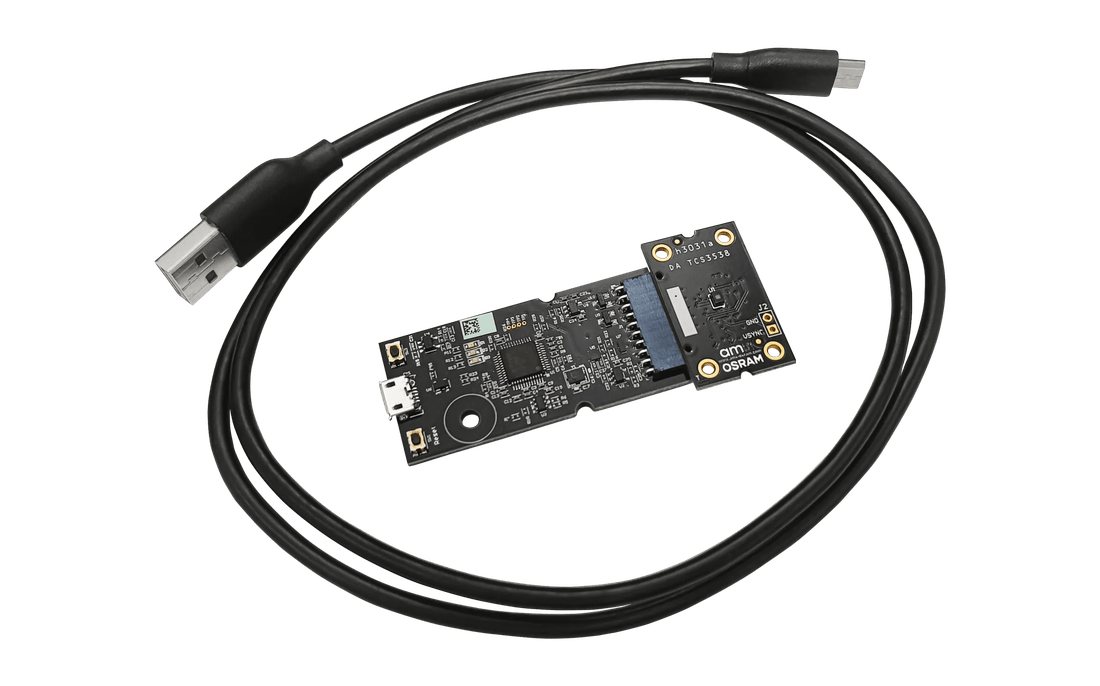

TCS3538 Evaluation board · Images · TIF
TCS3538 Evaluation board NO cable · Images · TIF

Software
TCS3538_Driver_v1.1.0.zip · Driver · ZIP · en_US
TCS3538_EvalSW_v0.7.0.zip · Evaluation software · ZIP · en_US
