ams AS1130 LED Driver IC

Name: ams AS1130 LED Driver IC
Brand: ams-OSRAM AG

Description

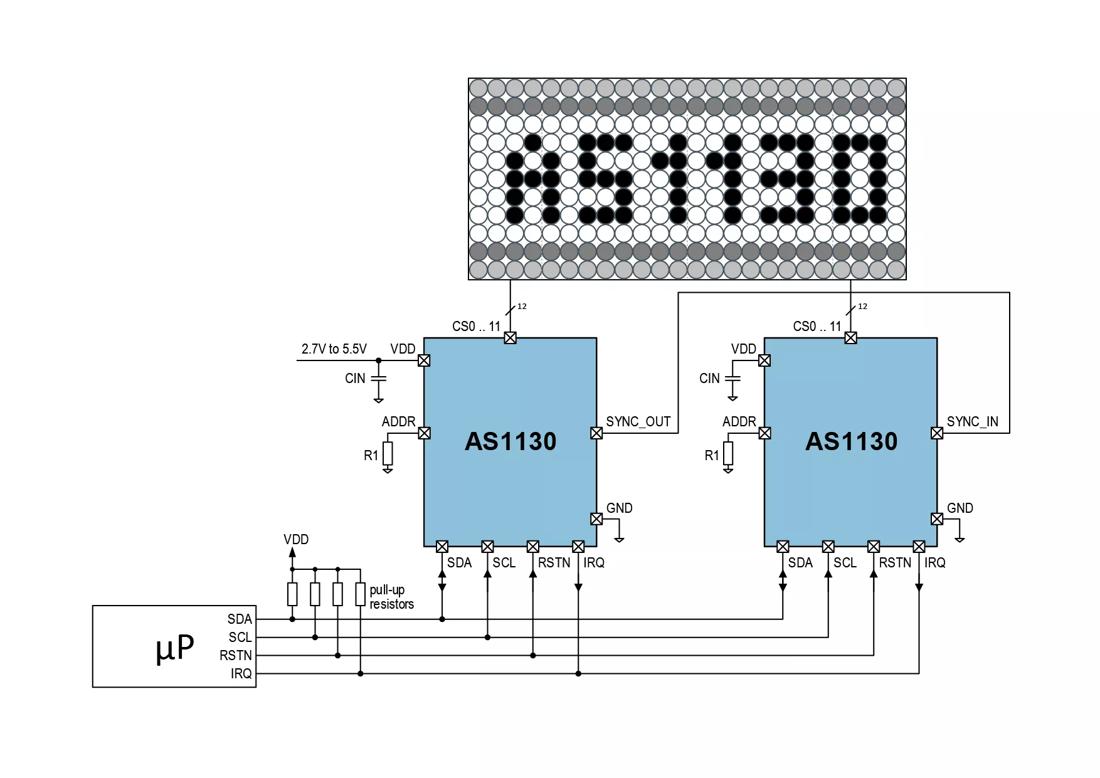

The AS1130 is a I²C interfaced, ultra-compact cross-plexing LED driver IC for 132 single LEDs with error diagnostic and correction. It offers a 8-bit PWM per LED and a 8-bit analog current adjustment on each matrix for up to 3mA per LED. It offers up to 36 frames of memory and scrolling function reducing MCU load.

Datasheet

Select & order

Details

Up to 132 LEDs in an 11x12 matrix
8-bit PWM per LED and current control per line
36 frames of memory with scrolling option
Error detection & correction

Worlds lowest PCB real estate vs LED count
16.7M full color matrix with white balance
Reduces MCU load and increases battery lifetime
Identifies defect LEDs and "removes" them from the matrix

Application fields

Computing Computing

Mobile & wearables Display management

Ordering codes

Product Type	Description	Order No.	Availability
AS1130-BSST			Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
AS1130-BWLT			Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
AS1130-BTST			Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
AS1130B-BWLT			Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
