OSRAM Metal Can, PLPT9 450LB_E

×

Description

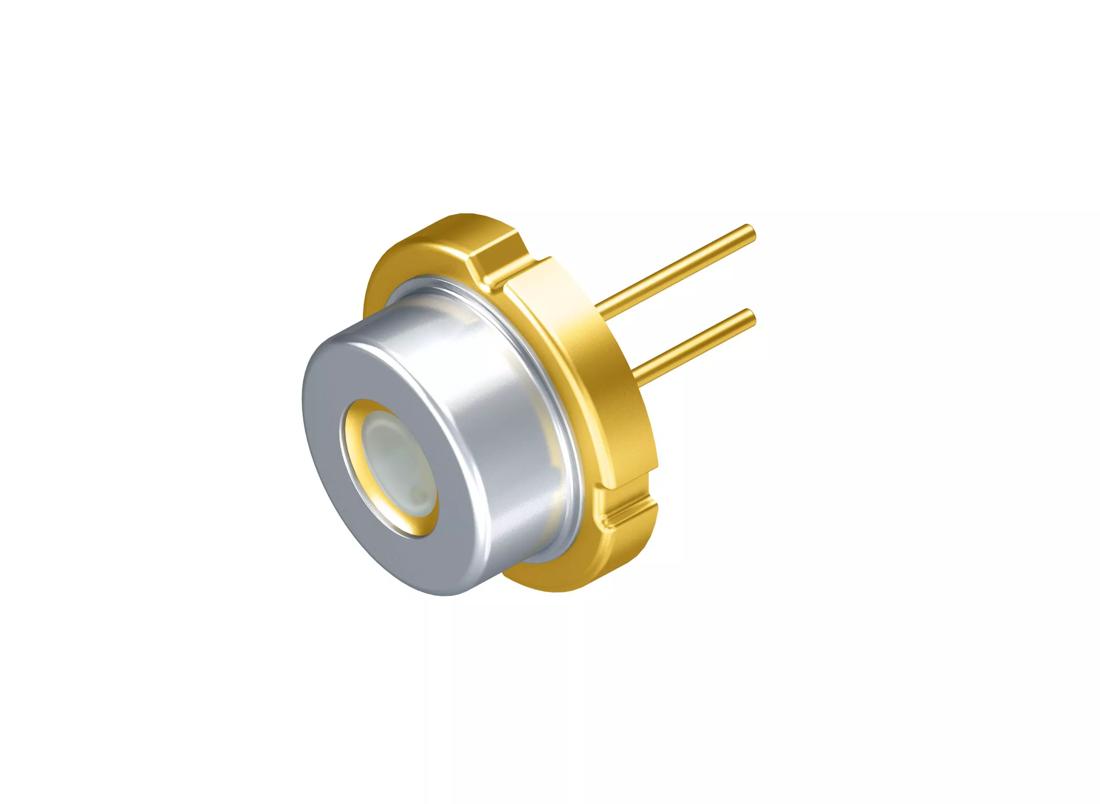

Blue Laser Diode in TO90 Package

Details

Parameters

Color of emission
Deep Blue (439-461 nm)
Peak wavelength
λ
447 nm
Current
IF
3000 mA
Brightness
ΦE
5000 mW
Beam angle
9 °
49 °
Dimension
l
90.0 mm
w
90.0 mm
h
43.5 mm
Operating temperature
Top min.
-20 °C
Top max.
90 °C

Ordering codes

Product Type Description Order No. Availability
PLPT9 450LB_E Popt = 5 W typ., (IF=3 A) Q65113A2224
