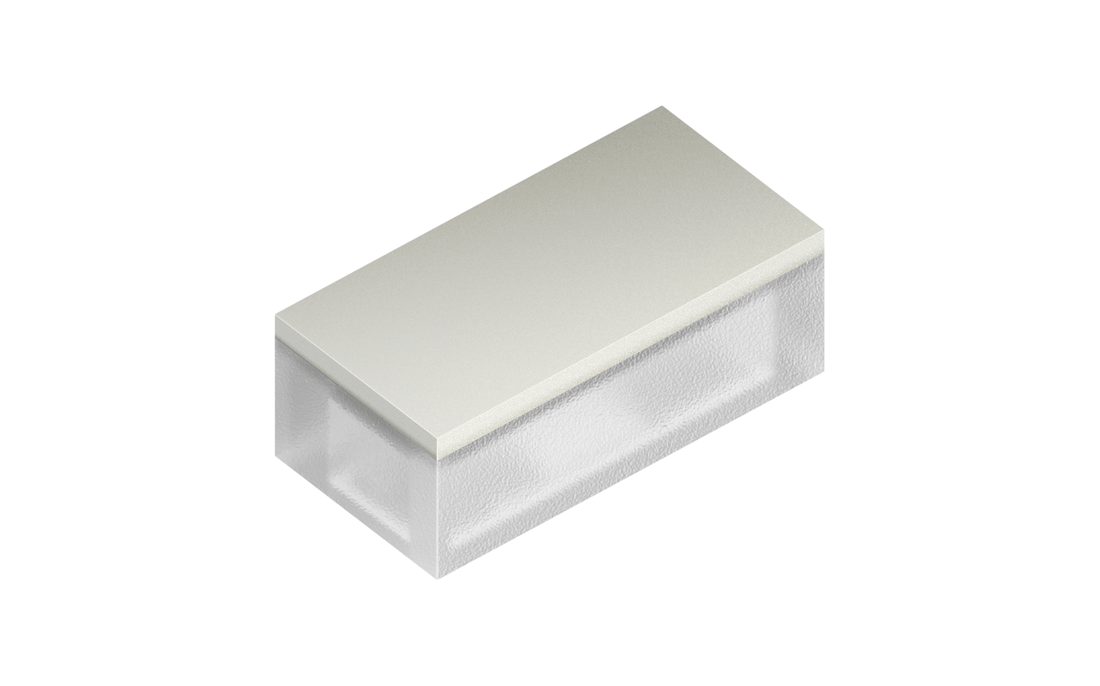

OSRAM SMARTLED™ PURE 0201, KR TATPE1.23

New
×
New

Description

SmartLED PURE 0201 is a chip scale package LED designed for ultra-low height applications where space is at a premium. Its side-emitting design delivers exceptional brightness in tight-height designs, uniform illumination, making it ideal for sleek backlighting in displays, keypads, and edge indicators. Optimized for tight integration, it ensures consistent brightness without compromising on efficiency. This LED redefines compact lighting performance for modern electronics.
Datasheet
KR TATPE1.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.0095 W
Low
Brightness
ΦV
0.65 lm
IV
0.0616 cd
ΦE
3.01 mW
IE
0.285 mW/sr
ΦP
0.0034 µmol/s
Beam angle
∢
165 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
0.6 mm
w
0.3 mm
h
0.22 mm

Ordering information

Product Type Description Ordering code Availability
KR TATPE1.23-BABB-A5R1-1 ΦV = 350 ... 950 mlm (IF = 5 mA) Q65115A2214 Pre-production
