OSRAM SMARTLED™ PURE 0201, KW TATPE1.RU

New
×
New

Description

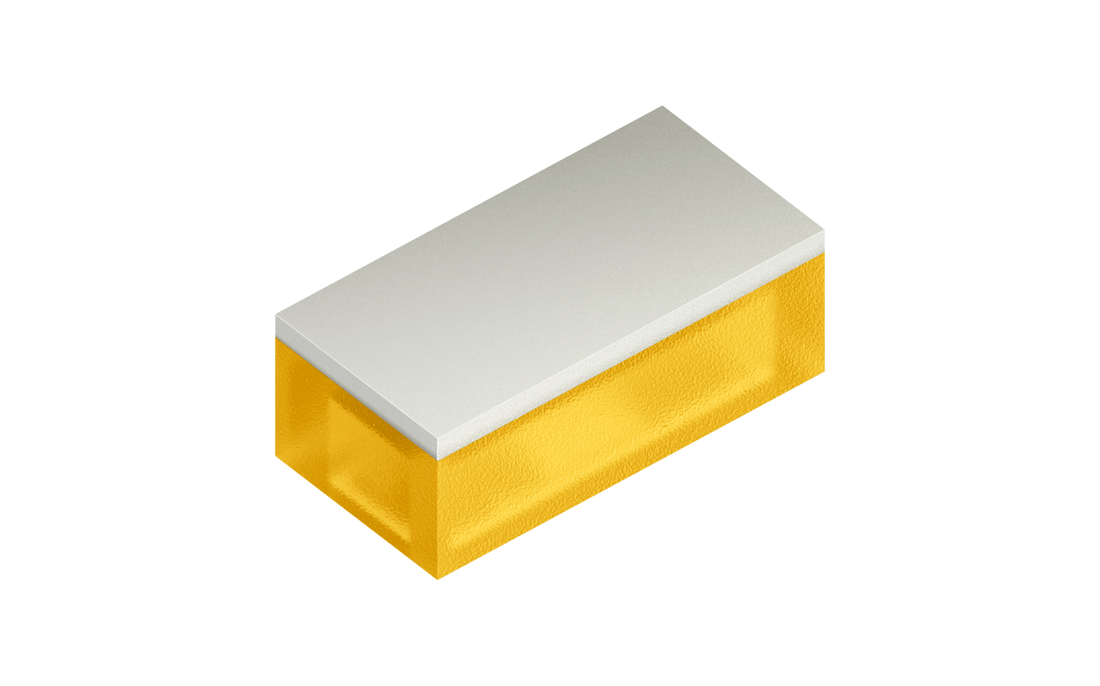

SmartLED PURE 0201 is a chip scale package LED designed for ultra-low height applications where space is at a premium. Its side-emitting design delivers exceptional brightness in tight-height designs, uniform illumination, making it ideal for sleek backlighting in displays, keypads, and edge indicators. Optimized for tight integration, it ensures consistent brightness without compromising on efficiency. This LED redefines compact lighting performance for modern electronics.
Datasheet
KW TATPE1.RU
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.013 W
Low
Brightness
ΦV
1.25 lm
IV
0.0877 cd
ΦE
6.13 mW
IE
0.43 mW/sr
ΦP
0.00555 µmol/s
Beam angle
∢
165 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
0.6 mm
w
0.3 mm
h
0.22 mm

Ordering information

Product Type Description Ordering code Availability
KW TATPE1.RU-Q2T1-A01A21-1 ΦV = 900 ... 1600 mlm (IF = 5 mA) Q65115A2212 Pre-production

Downloads

Datasheets
KW TATPE1.RU · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
