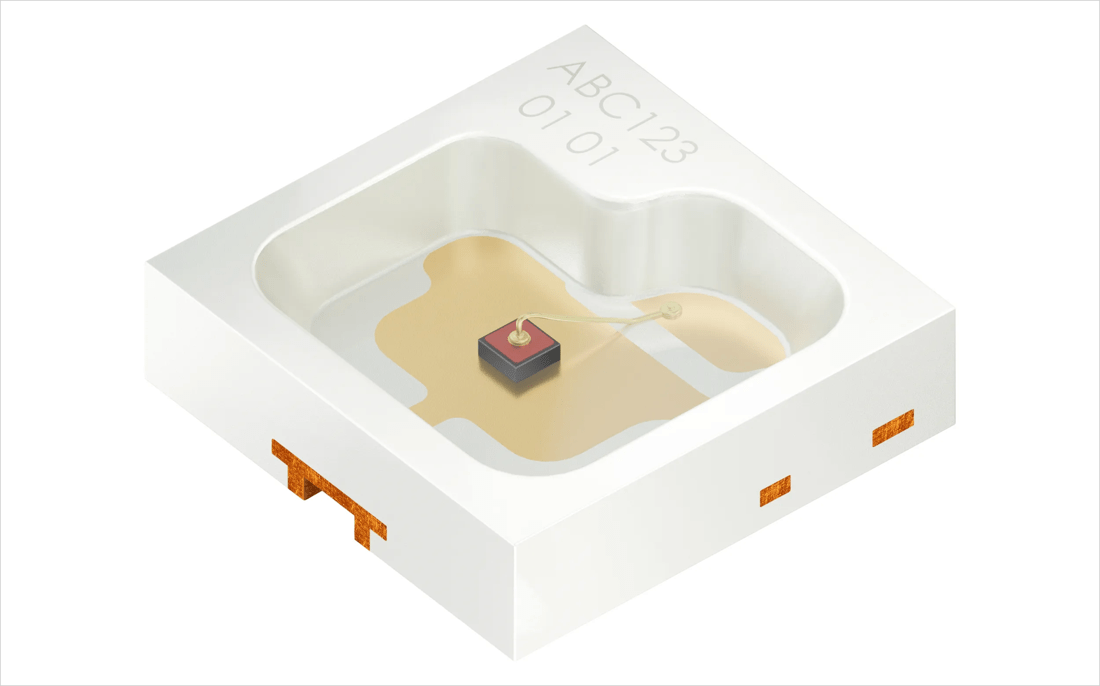

OSRAM SYNIOS™ P2222, KR DDLN3A.23

New
×
New

Description

The SYNIOS™ P2222 is the new standard LED for Automotive Signaling applications. It features a small package outline and is available in all application-specific colors.
Datasheet
KR DDLN3A.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.36 W
Mid
Brightness
ΦV
23.4 lm
IV
7.8 cd
ΦE
133 mW
IE
44.3 mW/sr
ΦP
0.123 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KR DDLN3A.23-FAFB-CR-S3U3 ΦV = 11.2 ... 18.0 lm (IF = 140 mA) Q65115A2872 Pre-production
KR DDLN3A.23-FBHA-ARBR-R3U3 ΦV = 14.0 ... 35.5 lm (IF = 140 mA) Q65115A1761 Pre-production
