OSRAM SYNIOS™ P2222, KR DDLQ3A.23

New
×
New

Description

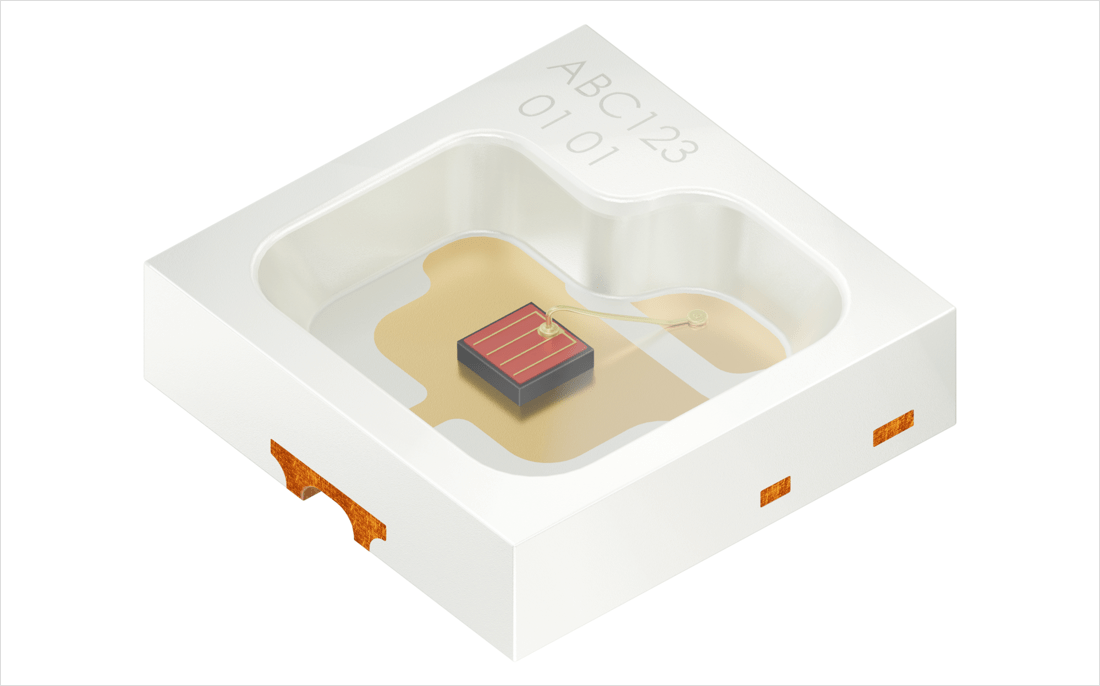

The SYNIOS™ P2222 is the new standard LED for Automotive Signaling applications. It features a small package outline and is available in all application-specific colors.
Datasheet
KR DDLQ3A.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.93 W
High
Brightness
ΦV
67.8 lm
IV
22.6 cd
ΦE
385 mW
IE
129 mW/sr
ΦP
0.358 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KR DDLQ3A.23-HBJA-CR-S3V3 ΦV = 35.5 ... 56.0 lm (IF = 350 mA) Q65115A2871 Pre-production
KR DDLQ3A.23-JAK4-ARBR-S3V3 ΦV = 45.0 ... 100.0 lm (IF = 350 mA) Q65115A1760 Pre-production

Downloads

Datasheets
KR DDLQ3A.23 · Datasheet · PDF · en_US

Application note
SYNIOS™ P2222 - General Information · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
KR DDLQ3A.23 · Images · TIF

Product selector

Find the right product.
Product selector

More color LEDs

For a colorful life.

Explore more color LEDs
